Procesory AMD

--- General Specifications ---
Name : AMD Ryzen™ 9 9900X
Family : Ryzen
Series : Ryzen 9000 Series
Form Factor : Desktops ,
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Granite Ridge AM5
Architecture : Zen 5
# of CPU Cores : 12
Multithreading (SMT) : Yes
# of Threads : 24
Max. Boost Clock : Up to 5.6 GHz
Base Clock : 4.4 GHz
L1 Cache : 960 KB
L2 Cache : 12 MB
L3 Cache : 64 MB
Default TDP : 120W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 3
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 08/15/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 2.0 (480Mbps) : 1
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X870E 8x Gen4
X870 4x Gen4
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 192 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100000662WOF
Product ID Tray : 100-000000662

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 7 7700
Family : Ryzen
Series : Ryzen 7000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Raphael AM5
Architecture : Zen 4
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5.3 GHz
Base Clock : 3.8 GHz
L1 Cache : 512 KB
L2 Cache : 8 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : AMD Wraith Prism
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 01/14/2023
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100000592BOX
Product ID Tray : 100-000000592

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

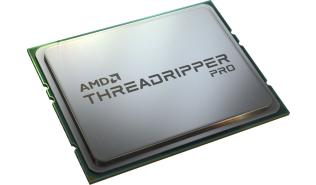

Typ / Rodzaj obudowy: AMD Ryzen ThreadRipper PRO 5995WX
Ilość rdzeni: 64 rdzenie
Ilość wątków: 128 wątków
Pamięć podręczna: 256 MB
Szczegóły pamięci podręcznej: L1 - 4 MB, L2 - 32 MB, L3 - 256 MB
Ilość procesorów: 1
Częstotliwość zegara: 2.7 GHz
Max Turbo Speed: 4.5 GHz
Zgodne gniazda procesora: Socket sWRX8
Proces wytwarzania: 7 nm
Ilość wydzielanego ciepła: 280 W
Specyfikacja termiczna: 95 °C
Wersja PCI Express: 4.0
Rodzaj architektury: "Zen 3" Core Architecture

Różne
Rodzaj opakowania: Rozwiązanie Processor in a Box (PIB) firmy AMD bez radiatora/wentylatora (WOF)

Gwarancja producenta
Obsługa i wsparcie: Gwarancja ograniczona - 3 lata

--- General Specifications ---
Name : AMD Ryzen™ 9 9900X
Family : Ryzen
Series : Ryzen 9000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Granite Ridge AM5
Architecture : Zen 5
# of CPU Cores : 12
Multithreading (SMT) : Yes
# of Threads : 24
Max. Boost Clock : Up to 5.6 GHz
Base Clock : 4.4 GHz
L1 Cache : 960 KB
L2 Cache : 12 MB
L3 Cache : 64 MB
Default TDP : 120W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 3
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 08/15/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 2.0 (480Mbps) : 1
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X870E 8x Gen4
X870 4x Gen4
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 192 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100000662WOF
Product ID Tray : 100-000000662

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 5 7600X
Family : Ryzen
Series : Ryzen 7000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Raphael AM5
Architecture : Zen 4
# of CPU Cores : 6
Multithreading (SMT) : Yes
# of Threads : 12
Max. Boost Clock : Up to 5.3 GHz
Base Clock : 4.7 GHz
L1 Cache : 384 KB
L2 Cache : 6 MB
L3 Cache : 32 MB
Default TDP : 105W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Premium air cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 09/27/2022
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)
Graphics Capabilities : Graphics Model

--- AMD Radeon™ Graphics ---
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100000593WOF
Product ID Tray : 100-000000593

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 7 9700X
Family : Ryzen
Series : Ryzen 9000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Granite Ridge AM5
Architecture : Zen 5
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5.5 GHz
Base Clock : 3.8 GHz
L1 Cache : 640 KB
L2 Cache : 8 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Premium air cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 08/08/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 2.0 (480Mbps) : 1
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X870E 8x Gen4
X870 4x Gen4
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 192 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100001404WOF
Product ID Tray : 100-000001404

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 5 3600
Family : Ryzen
Series : Ryzen 3000 Series
Form Factor : Desktops , Boxed Processor
Former Codename : Matisse
# of CPU Cores : 6
# of Threads : 12
Max. Boost Clock : Up to 4.2 GHz
Base Clock : 3.6 GHz
L1 Cache : 384 KB
L2 Cache : 3 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
Unlocked for Overclocking : Yes
CPU Socket : AM4
Thermal Solution (PIB) : AMD Wraith Stealth
Thermal Solution (MPK) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 7/7/2019
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
PCI Express® Version : PCIe® 4.0 x16
System Memory Type : DDR4
Memory Channels : 2
System Memory Specification : Up to 3200 MT/s

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100000031BOX
Product ID Tray : 100-000000031
Product ID MPK : 100-100000031MPK

--- General Specifications ---
Name : AMD Ryzen™ 9 7900X
Family : Ryzen
Series : Ryzen 7000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Raphael AM5
Architecture : Zen 4
# of CPU Cores : 12
Multithreading (SMT) : Yes
# of Threads : 24
Max. Boost Clock : Up to 5.6 GHz
Base Clock : 4.7 GHz
L1 Cache : 768 KB
L2 Cache : 12 MB
L3 Cache : 64 MB
Default TDP : 170W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 3
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 09/27/2022
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100000589WOF
Product ID Tray : 100-000000589

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

Specyfikacja dla profesjonalistów:

--- General Specifications ---
Name : AMD Ryzen™ Threadripper™ 9960X
Family : Ryzen Threadripper
Series : Ryzen Threadripper 9000 Series
Form Factor : Desktops
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Shimada Peak
Processor Architecture : Zen 5
# of CPU Cores : 24
Multithreading (SMT) : Yes
# of Threads : 48
Max. Boost Clock : Up to 5.4 GHz
Base Clock : 4.2 GHz
L1 Cache : 1920 KB
L2 Cache : 24 MB
L3 Cache : 128 MB
Default TDP : 350W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 5
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
CPU Socket : sTR5
Supporting Chipsets : TRX50
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64

Supported Extensions :
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB) : Not Included
Max. Operating Temperature (Tjmax) : 95°C
*OS Support : Windows 11 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit , Windows 10 - 64-Bit Edition

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native SATA Ports : 2
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 92 , 88
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 4
System Memory Subtype : RDIMM
System Memory Specification : Up to 6400 MT/s
ECC Support : Yes (Default Enabled)

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs---
Product ID Boxed : 100-100001595WOF
Product ID Tray : 100-000001595

--- Manageability ---
DASH support : Yes

--- Security ---
AMD Memory Guard : Yes
AMD Secure Processor Support : Yes
Windows Secure Boot Support : Yes
UEFI Secure Boot Support : Yes
Windows Device Guard Support : Yes
Guest Mode Execution (GMET) Trap Support : Yes
Virtualization-Based Security (VBS) Support : Yes
Windows Secured-Core PC Support : Yes
Firmware TPM : Yes
AMD-V (SVM) Support : Yes
AMD-V Nested Paging (RVI) Support : Yes
AMD AVIC (Interrupt Virtualization) Support : Yes
AMD-Vi (I/O MMU Virtualization) Support : Yes
Second Level Address Translation (SLAT) Supported : Yes
Advanced Encryption Standard New Instructions (AES-NI) : Yes
AMD Enhanced Virus Protection (NX bit) : Yes
FIPS Certification : In Review

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : : AMD Ryzen™ 5 5500
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Mainstream Desktop
Regional Availability : Global , China , NA , EMEA , APJ , LATAM
Former Codename : Cezanne
Architecture : Zen 3
# of CPU Cores : 6
Multithreading (SMT) : Yes
# of Threads : 12
Max. Boost Clock : Up to 4.2 GHz
Base Clock : 3.6 GHz
L1 Cache : 384 KB
L2 Cache : 3 MB
L3 Cache : 16 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
CPU Compute Die (CCD) Size : 180mm²
Package Die Count : 1
Unlocked for Overclocking : Yes
CPU Socket : AM4
Supporting Chipsets : X570 , X470 , X370 , B550 , B450 , B350 , A520
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 90°C
Launch Date : 04/04/2022
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 4 (40Gbps) : 0
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 0
Native SATA Ports : 2
PCI Express® Version : PCIe® 3.0
Native PCIe® Lanes (Total/Usable) : 24 , 20
Additional Usable PCIe Lanes from Motherboard : X570 16x Gen 3 / X470 2x Gen 3, 8x Gen 2
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
System Memory Specification : Up to 3200 MT/s
Max Memory Speed :
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
ECC Support : No

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100000457BOX
Product ID Tray : 100-000000457

--- Key Features ---
Supported Technologies : AMD StoreMI Technology , AMD Ryzen™ VR-Ready Premium

Specyfikacja dla profefsjonalistów

--- General Specifications ---
Name : AMD Ryzen™ Threadripper™ PRO 9955WX
Family : Ryzen Threadripper PRO
Series : Ryzen Threadripper PRO 9000 WX-Series
Form Factor : Desktops
AMD PRO Technologies : Yes
Regional Availability : Global
Former Codename : Shimada Peak
Processor Architecture : Zen 5
# of CPU Cores : 16
Multithreading (SMT) : Yes
# of Threads : 32
Max. Boost Clock : Up to 5.4 GHz
Base Clock : 4.5 GHz
L1 Cache : 1280 KB
L2 Cache : 16 MB
L3 Cache : 64 MB
Default TDP : 350W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 3
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
CPU Socket : sTR5
Supporting Chipsets : WRX90 , TRX50 , Pro 695
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64

Supported Extensions :
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB) : Not Included
Max. Operating Temperature (Tjmax) : 95°C
*OS Support : Windows 11 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit , Windows 10 - 64-Bit Edition

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native SATA Ports : 4
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable/PCIe® 5.0) : 148 , 144 , 128
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 8
System Memory Subtype : RDIMM
System Memory Specification : Up to 6400 MT/s
ECC Support : Yes (Default Enabled)

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Tray : 100-000000725

--- Manageability---
DASH support : Yes

--- Security ---
AMD Memory Guard : Yes
AMD Secure Processor Support : Yes
Windows Secure Boot Support : Yes
UEFI Secure Boot Support : Yes
Windows Device Guard Support : Yes
Guest Mode Execution (GMET) Trap Support : Yes
Virtualization-Based Security (VBS) Support : Yes
Windows Secured-Core PC Support : Yes
Firmware TPM : Yes
AMD-V (SVM) Support : Yes
AMD-V Nested Paging (RVI) Support : Yes
AMD AVIC (Interrupt Virtualization) Support : Yes
AMD-Vi (I/O MMU Virtualization) Support : Yes
Second Level Address Translation (SLAT) Supported : Yes
Advanced Encryption Standard New Instructions (AES-NI) : Yes
AMD Enhanced Virus Protection (NX bit) : Yes
FIPS Certification : In Review

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD PRO technologies , AMD Ryzen™ Technologies

Typ / Rodzaj obudowy: AMD Ryzen ThreadRipper PRO 5965WX
Ilość rdzeni: 24 rdzenie
Ilość wątków: 48 wątków
Pamięć podręczna: 128 MB
Szczegóły pamięci podręcznej: L3 - 128 MB
L2 - 12 MB
L1 - 1,5 MB
Ilość procesorów: 1
Częstotliwość zegara: 3.8 GHz
Max Turbo Speed: 4.5 GHz
Zgodne gniazda procesora: Socket sWRX8
Proces wytwarzania: 7 nm
Ilość wydzielanego ciepła: 280 W
Specyfikacja termiczna: 95 °C
Wersja PCI Express: 4.0
Rodzaj architektury: "Zen 3" Core Architecture
Rodzaj opakowania: Rozwiązanie Processor in a Box (PIB) firmy AMD bez radiatora/wentylatora (WOF)
Obsługa i wsparcie: Gwarancja ograniczona - 3 lata

--- Procesor ---
Typ / Rodzaj obudowy: AMD Ryzen ThreadRipper PRO 7965WX
Ilość rdzeni: 24 rdzenie
Ilość wątków: 48 wątków
Pamięć podręczna: 128 MB
Szczegóły pamięci podręcznej: L1 - 1,5 MB
L2 - 24 MB
L3 - 128 MB
Ilość procesorów: 1
Częstotliwość zegara: 4.2 GHz
Max Turbo Speed: 5.3 GHz
Zgodne gniazda procesora: Socket sTR5
Proces wytwarzania: 5 nm
Ilość wydzielanego ciepła: 350 W
Specyfikacja termiczna: 95 °C
Wersja PCI Express: 5.0
Liczba Ścieżek PCI Express: 148
Rodzaj architektury: Technologie AMD PRO, AMD EXPO Technology, AMD RyzenTechnologies, Architektura Rdzenia „Zen 4", Technologia AMD Precision Boost 2

--- Różne ---
Rodzaj opakowania: oem

Reklamacje: 36 miesięcy w serwisie

--- General Specifications ---
Name : AMD Ryzen™ 9 7900
Family : Ryzen
Series : Ryzen 7000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global , China , NA , EMEA , APJ , LATAM
Former Codename : Raphael AM5
Architecture : Zen 4
# of CPU Cores : 12
Multithreading (SMT) : Yes
# of Threads : 24
Max. Boost Clock : Up to 5.4 GHz
Base Clock : 3.7 GHz
L1 Cache : 768 KB
L2 Cache : 12 MB
L3 Cache : 64 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 3
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : AMD Wraith Prism
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 01/14/2023
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100000590BOX
Product ID Tray : 100-000000590

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

Specyfikacja dla profesjonalistów

--- General Specifications ---
Name : AMD Ryzen™ Threadripper™ PRO 9995WX
Family : Ryzen Threadripper PRO
Series : Ryzen Threadripper PRO 9000 WX-Series
Form Factor : Desktops
AMD PRO Technologies : Yes
Regional Availability : Global
Former Codename : Shimada Peak
Processor Architecture : Zen 5
# of CPU Cores : 96
Multithreading (SMT) : Yes
# of Threads : 192
Max. Boost Clock : Up to 5.4 GHz
Base Clock : 2.5 GHz
L1 Cache : 7680 KB
L2 Cache : 96 MB
L3 Cache : 384 MB
Default TDP : 350W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 13
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
CPU Socket : sTR5
Supporting Chipsets : WRX90 , TRX50 , Pro 695
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64

Supported Extensions :
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB) : Not Included
Max. Operating Temperature (Tjmax) : 95°C
*OS Support : Windows 11 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit , Windows 10 - 64-Bit Edition

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native SATA Ports : 4
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable/PCIe® 5.0) : 148 , 144 , 128
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 8
System Memory Subtype : RDIMM
System Memory Specification : Up to 6400 MT/s
ECC Support : Yes (Default Enabled)

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100001361WOF
Product ID Tray : 100-000001361

--- Manageability ---
DASH support : Yes

--- Security ---
AMD Memory Guard : Yes
AMD Secure Processor Support : Yes
Windows Secure Boot Support : Yes
UEFI Secure Boot Support : Yes
Windows Device Guard Support : Yes
Guest Mode Execution (GMET) Trap Support : Yes
Virtualization-Based Security (VBS) Support : Yes
Windows Secured-Core PC Support : Yes
Firmware TPM : Yes
AMD-V (SVM) Support : Yes
AMD-V Nested Paging (RVI) Support : Yes
AMD AVIC (Interrupt Virtualization) Support : Yes
AMD-Vi (I/O MMU Virtualization) Support : Yes
Second Level Address Translation (SLAT) Supported : Yes
Advanced Encryption Standard New Instructions (AES-NI) : Yes
AMD Enhanced Virus Protection (NX bit) : Yes
FIPS Certification : In Review

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD PRO technologies , AMD Ryzen™ Technologies

Typ / Rodzaj obudowy: AMD Ryzen ThreadRipper PRO 5975WX
Ilość rdzeni: 32 rdzenie
Ilość wątków: 64 wątki
Pamięć podręczna: 128 MB
Szczegóły pamięci podręcznej: L1 - 2 MB
L2 - 16 MB
L3 - 128 MB
Ilość procesorów: 1
Częstotliwość zegara: 3.6 GHz
Max Turbo Speed: 4.5 GHz
Zgodne gniazda procesora: Socket sWRX8
Proces wytwarzania: 7 nm
Ilość wydzielanego ciepła: 280 W
Specyfikacja termiczna: 95 °C
Wersja PCI Express: 4.0
Rodzaj architektury: "Zen 3" Core Architecture
Rodzaj opakowania: Rozwiązanie Processor in a Box (PIB) firmy AMD bez radiatora/wentylatora (WOF)
Obsługa i wsparcie: Gwarancja ograniczona - 3 lata

--- General Specifications ---
Name : AMD Ryzen™ 9 7950X
Family : Ryzen
Series : Ryzen 7000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Raphael AM5
Architecture : Zen 4
# of CPU Cores : 16
Multithreading (SMT) : Yes
# of Threads : 32
Max. Boost Clock : Up to 5.7 GHz
Base Clock : 4.5 GHz
L1 Cache : 1024 KB
L2 Cache : 16 MB
L3 Cache : 64 MB
Default TDP : 170W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 3
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 09/27/2022
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100000514WOF
Product ID Tray : 100-000000514

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : : AMD Ryzen™ 5 3400G with Radeon™ RX Vega 11 Graphics
Family : Ryzen
Series : Ryzen 3000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Mainstream Desktop
AMD PRO Technologies : No
Regional Availability : Global , China , NA , EMEA , APJ , LATAM
Former Codename : Picasso
Architecture : Zen+
# of CPU Cores : 4
Multithreading (SMT) : Yes
# of Threads : 8
Max. Boost Clock : Up to 4.2 GHz
Base Clock : 3.7 GHz
L1 Cache : 384 KB
L2 Cache : 2 MB
L3 Cache : 4 MB
Default TDP : 65W
AMD Configurable TDP (cTDP) : 45-65W
Processor Technology for CPU Cores : 12nm FinFET
CPU Compute Die (CCD) Size : 210mm²
Package Die Count : 1
Total Transistor Count : 4.94 Billion
Unlocked for Overclocking : Yes
CPU Socket : AM4
Supporting Chipsets : X570 , X470 , X370 , B450 , B350 , A320
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : AMD Wraith Spire
Thermal Solution (MPK) : AMD Wraith Spire
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 07/07/2019
*OS Support : Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- onnectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 0
Native USB 3.2 Gen 1 (5Gbps) : 4
Native USB 2.0 (480Mbps) : 0
Native SATA Ports : 0
PCI Express® Version : PCIe® 3.0
Native PCIe® Lanes (Total/Usable) : 20 , 16
Additional Usable PCIe Lanes from Motherboard : X470 2x Gen 3, 8x Gen 2
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 64 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR4-2933
2x2R DDR4-2667
4x1R DDR4-2133
4x2R DDR4-1866
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : Radeon™ RX Vega 11 Graphics
Graphics Core Count : 11
Total Graphics Shaders : 704
Graphics Frequency : 1400 MHz
GPU Max. Memory : 2 GB
WDDM Version : 2.7
DirectX® Version : 12
OpenGL® : 4.6
OpenCL™ : 2.2
DisplayPort™ Version : 1.4a
DisplayPort Extensions : HBR3 , HDR Metadata , Adaptive-Sync
DisplayPort Max Refresh Rates (SDR) : 3840x2160 @ 60Hz , 3440x1440 @ 144Hz , 2560x1440 @ 180Hz , 1920x1080 @ 240Hz
DisplayPort Max Refresh Rates (HDR) : 3840x2160 @ 60Hz , 3440x1440 @ 60Hz , 2560x1440 @ 60Hz , 1920x1080 @ 120Hz
HDMI® Version : 2.0
HDCP Version Supported : 2.2
USB Type-C® DisplayPort™ Alternate Mode : Yes
Multi-Monitor Support : Yes
Max Displays : 3
AMD FreeSync™ : Yes
AMD Eyefinity Single Large Surface (SLS) : No
Wireless Display : Miracast
Max Video Encode Bandwidth (SDR) : 1080p205 8bpc H.264, 1440p115 8bpc H.264, 2160p51 8bpc H.264, 1080p205 8bpc H.265, 1440p115 8bpc H.265, 2160p51 8bpc H.265
Max Video Decode Bandwidth : 1080p60 MPEG2, 1080p60 VC1, 1080p240 8bpc VP9, 1080p240 10bpc VP9, 1080p240 H.264, 1080p240 8bpc H.265, 1080p240 10bpc H.265, 1080p240 JPEG 8bpc

--- Product IDs ---
Product ID Boxed : YD3400C5FHBOX
Product ID Tray : YD3400C5M4MFH
Product ID MPK : YD3400C5FHMPK

--- Security, Virtualization, and Manageability ---
AMD Enhanced Virus Protection (NX bit) : Yes

--- General Specifications ---
Name : AMD Ryzen™ 5 9600
Family : Ryzen
Series : Ryzen 9000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Granite Ridge AM5
Processor Architecture : Zen 5
# of CPU Cores : 6
Multithreading (SMT) : Yes
# of Threads : 12
Max. Boost Clock : Up to 5.2 GHz
Base Clock : 3.8 GHz
L1 Cache : 480 KB
L2 Cache : 6 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX512 , AVX2 , AVX , FMA3 , MMX-plus , SHA , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 02/19/2025
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 2.0 (480Mbps) : 1
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 192 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100000718BOX
Product ID Tray : 100-000000718

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 7 7700
Family : Ryzen
Series : Ryzen 7000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Raphael AM5
Architecture : Zen 4
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5.3 GHz
Base Clock : 3.8 GHz
L1 Cache : 512 KB
L2 Cache : 8 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 01/14/2023
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100000592BOX
Product ID Tray : 100-000000592

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 5 7600
Family : Ryzen
Series : Ryzen 7000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Raphael AM5
Architecture : Zen 4
# of CPU Cores : 6
Multithreading (SMT) : Yes
# of Threads : 12
Max. Boost Clock : Up to 5.1 GHz
Base Clock : 3.8 GHz
L1 Cache : 384 KB
L2 Cache : 6 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 01/14/2023
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100001015BOX
Product ID Tray : 100-000001015

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 5 7500F
Family : Ryzen
Series : Ryzen 7000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Raphael AM5
Architecture : Zen 4
# of CPU Cores : 6
Multithreading (SMT) : Yes
# of Threads : 12
Max. Boost Clock : Up to 5 GHz
Base Clock : 3.7 GHz
L1 Cache : 384 KB
L2 Cache : 6 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : AMD Wraith Stealth
Thermal Solution (MPK) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 07/22/2023
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
A620 4x Gen3
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- raphics Capabilities---
Graphics Model : Discrete Graphics Card Required

--- roduct IDs---
Product ID Tray : 100-000000597
Product ID MPK : 100-100000597MPK

--- Key Features---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies
