AMD Ryzen 7 (Socket AM5, 64bit)

--- General Specifications ---
Name : AMD Ryzen™ 7 7700
Family : Ryzen
Series : Ryzen 7000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Raphael AM5
Architecture : Zen 4
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5.3 GHz
Base Clock : 3.8 GHz
L1 Cache : 512 KB
L2 Cache : 8 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : AMD Wraith Prism
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 01/14/2023
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100000592BOX
Product ID Tray : 100-000000592

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 7 7700
Family : Ryzen
Series : Ryzen 7000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Raphael AM5
Architecture : Zen 4
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5.3 GHz
Base Clock : 3.8 GHz
L1 Cache : 512 KB
L2 Cache : 8 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 01/14/2023
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100000592BOX
Product ID Tray : 100-000000592

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : : AMD Ryzen™ 7 9800X3D
Family : Ryzen
Series : Ryzen 9000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Granite Ridge AM5
Architecture : Zen 5
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5.2 GHz
Base Clock : 4.7 GHz
L1 Cache : 640 KB
L2 Cache : 8 MB
L3 Cache : 96 MB
Default TDP : 120W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 11/07/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 2.0 (480Mbps) : 1
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 192 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100001084WOF
Product ID Tray : 100-000001084

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 7 9700X
Family : Ryzen
Series : Ryzen 9000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Granite Ridge AM5
Architecture : Zen 5
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5.5 GHz
Base Clock : 3.8 GHz
L1 Cache : 640 KB
L2 Cache : 8 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Premium air cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 08/08/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 2.0 (480Mbps) : 1
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X870E 8x Gen4
X870 4x Gen4
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 192 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100001404WOF
Product ID Tray : 100-000001404

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---

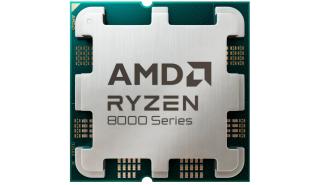

Name : AMD Ryzen™ 7 8700G
Family : Ryzen
Series : Ryzen 8000 Series
Form Factor : Desktops
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Phoenix
Architecture : Zen 4
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5.1 GHz
Base Clock : 4.2 GHz
L2 Cache : 8 MB
L3 Cache : 16 MB
Default TDP : 65W
AMD Configurable TDP (cTDP) : 45-65W
Processor Technology for CPU Cores : TSMC 4nm FinFET
CPU Compute Die (CCD) Size : 178mm²
Package Die Count : 1
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 1/31/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 4 (40Gbps) : 2
Native USB 3.2 Gen 2 (10Gbps) : 2
Native USB 2.0 (480Mbps) : 1
PCI Express® Version : PCIe® 4.0
Native PCIe® Lanes (Total/Usable) : 20 , 16
NVMe Support : Boot , RAID0 , RAID1
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 256 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ 780M
Graphics Core Count : 12
Graphics Frequency : 2900 MHz
DirectX® Version : 12
DisplayPort™ Version : 2.1
DisplayPort Extensions : Adaptive-Sync , HDR Metadata , UHBR10
DisplayPort Max Refresh Rates (SDR) : 7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz
DisplayPort Max Refresh Rates (HDR) : 7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz
HDMI® Version : 2.1
HDCP Version Supported : 2.3
USB Type-C® DisplayPort™ Alternate Mode : Yes
Multi-Monitor Support : Yes
Max Displays : 4
AMD FreeSync™ : Yes
Wireless Display : Miracast

Max Video Encode Bandwidth (SDR)
1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1

Max Video Decode Bandwidth
1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1

AMD SmartAccess Memory : Available

--- AI Engine Capabilities ---
Brand Name : AMD Ryzen™ AI
AMD Ryzen™ AI : Available
Performance : Up to 16 TOPS

--- Product IDs ---
Product ID Boxed : 100-100001236BOX
Product ID Tray : 100-000001236
Product ID MPK : 100-100001236MPK

--- Security, Virtualization, and Manageability ---
AMD Enhanced Virus Protection (NX bit) : Yes

--- General Specifications ---
Name : AMD Ryzen™ 7 7800X3D
Family : Ryzen
Series : Ryzen 7000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Raphael AM5
Architecture : Zen 4
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5 GHz
Base Clock : 4.2 GHz
L1 Cache : 512 KB
L2 Cache : 8 MB
L3 Cache : 96 MB
Default TDP : 120W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 2
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 89°C
Launch Date : 04/06/2023
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100000910WOF
Product ID Tray : 100-000000910

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 7 8700F
Family : Ryzen
Series : Ryzen 8000 Series
Form Factor : Desktops
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Phoenix
Architecture : Zen 4
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5 GHz
Base Clock : 4.1 GHz
L2 Cache : 8 MB
L3 Cache : 16 MB
Default TDP : 65W
AMD Configurable TDP (cTDP) : 45-65W
Processor Technology for CPU Cores : TSMC 4nm FinFET
CPU Compute Die (CCD) Size : 178mm²
Package Die Count : 1
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSSE3 , SSE4.1 , SSE4.2 , SSE4A , x86-64
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 04/01/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 4 (40Gbps) : 2
Native USB 3.2 Gen 2 (10Gbps) : 2
Native USB 2.0 (480Mbps) : 1
PCI Express® Version : PCIe® 4.0
Native PCIe® Lanes (Total/Usable) : 20 , 16
NVMe Support : Boot , RAID0 , RAID1
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 256 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required
AMD SmartAccess Memory : Available

--- AI Engine Capabilities ---
Brand Name : AMD Ryzen™ AI
AMD Ryzen™ AI : Available
Performance : Up to 16 TOPS

--- Product IDs ---
Product ID Boxed : 100-100001590BOX , 100-100001590CBX
Product ID Tray : 100-000001590 (AM5)
Product ID MPK : 100-100001590MPK , 100-100001590CPK

--- Security, Virtualization, and Manageability ---
AMD Enhanced Virus Protection (NX bit) : Yes

--- General Specifications ---
Name : AMD Ryzen™ 7 7800X3D
Family : Ryzen
Series : Ryzen 7000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Raphael AM5
Architecture : Zen 4
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5 GHz
Base Clock : 4.2 GHz
L1 Cache : 512 KB
L2 Cache : 8 MB
L3 Cache : 96 MB
Default TDP : 120W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 2
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 89°C
Launch Date : 04/06/2023
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100000910WOF
Product ID Tray : 100-000000910

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 7 9700X
Family : Ryzen
Series : Ryzen 9000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Granite Ridge AM5
Architecture : Zen 5
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5.5 GHz
Base Clock : 3.8 GHz
L1 Cache : 640 KB
L2 Cache : 8 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Premium air cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 08/08/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 2.0 (480Mbps) : 1
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X870E 8x Gen4
X870 4x Gen4
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 192 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100001404WOF
Product ID Tray : 100-000001404

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 7 7700X
Family : Ryzen
Series : Ryzen 7000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Raphael AM5
Architecture : Zen 4
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5.4 GHz
Base Clock : 4.5 GHz
L1 Cache : 512 KB
L2 Cache : 8 MB
L3 Cache : 32 MB
Default TDP : 105W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Premium air cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 09/27/2022
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100000591WOF
Product ID Tray : 100-000000591

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 7 8700F
Family : Ryzen
Series : Ryzen 8000 Series
Form Factor : Desktops
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Phoenix
Architecture : Zen 4
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5 GHz
Base Clock : 4.1 GHz
L2 Cache : 8 MB
L3 Cache : 16 MB
Default TDP : 65W
AMD Configurable TDP (cTDP) : 45-65W
Processor Technology for CPU Cores : TSMC 4nm FinFET
CPU Compute Die (CCD) Size : 178mm²
Package Die Count : 1
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSSE3 , SSE4.1 , SSE4.2 , SSE4A , x86-64
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 04/01/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 4 (40Gbps) : 2
Native USB 3.2 Gen 2 (10Gbps) : 2
Native USB 2.0 (480Mbps) : 1
PCI Express® Version : PCIe® 4.0
Native PCIe® Lanes (Total/Usable) : 20 , 16
NVMe Support : Boot , RAID0 , RAID1
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 256 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required
AMD SmartAccess Memory : Available

--- AI Engine Capabilities ---
Brand Name : AMD Ryzen™ AI
AMD Ryzen™ AI : Available
Performance : Up to 16 TOPS

--- Product IDs ---
Product ID Boxed : 100-100001590BOX , 100-100001590CBX
Product ID Tray : 100-000001590 (AM5)
Product ID MPK : 100-100001590MPK , 100-100001590CPK

--- Security, Virtualization, and Manageability ---
AMD Enhanced Virus Protection (NX bit) : Yes
