--- General Specifications ---
Name : AMD Ryzen™ 5 8600G
Family : Ryzen
Series : Ryzen 8000 Series
Form Factor : Desktops
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Phoenix
Architecture : Zen 4
# of CPU Cores : 6
Multithreading (SMT) : Yes
# of Threads : 12
Max. Boost Clock : Up to 5 GHz
Base Clock : 4.3 GHz
L2 Cache : 6 MB
L3 Cache : 16 MB
Default TDP : 65W
AMD Configurable TDP (cTDP) : 45-65W
Processor Technology for CPU Cores : TSMC 4nm FinFET
CPU Compute Die (CCD) Size : 178mm²
Package Die Count : 1
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 1/31/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 4 (40Gbps) : 2
Native USB 3.2 Gen 2 (10Gbps) : 2
Native USB 2.0 (480Mbps) : 1
PCI Express® Version : PCIe® 4.0
Native PCIe® Lanes (Total/Usable) : 20 , 16
NVMe Support : Boot , RAID0 , RAID1
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 256 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ 760M
Graphics Core Count : 8
Graphics Frequency : 2800 MHz
DirectX® Version : 12
DisplayPort™ Version : 2.1
DisplayPort Extensions : Adaptive-Sync , HDR Metadata , UHBR10
DisplayPort Max Refresh Rates (SDR) : 7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz
DisplayPort Max Refresh Rates (HDR) : 7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz
HDMI® Version : 2.1
HDCP Version Supported : 2.3
USB Type-C® DisplayPort™ Alternate Mode : Yes
Multi-Monitor Support : Yes
Max Displays : 4
AMD FreeSync™ : Yes
Wireless Display : Miracast

Max Video Encode Bandwidth (SDR)
1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1

Max Video Decode Bandwidth
1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1

AMD SmartAccess Memory : Available

--- AI Engine Capabilities ---
Brand Name : AMD Ryzen™ AI
AMD Ryzen™ AI : Available
Performance : Up to 16 TOPS

--- Product IDs ---
Product ID Boxed : 100-100001237BOX
Product ID Tray : 100-000001237
Product ID MPK : 100-100001237MPK

--- Security, Virtualization, and Manageability ---
AMD Enhanced Virus Protection (NX bit) : Yes

Specyfikacja dla profesjonalistów

--- General Specifications ---

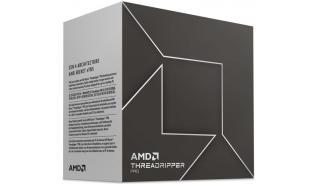

Name : AMD Ryzen™ Threadripper™ PRO 9985WX
Family : Ryzen Threadripper PRO
Series : Ryzen Threadripper PRO 9000 WX-Series
Form Factor : Desktops
AMD PRO Technologies : Yes
Regional Availability : Global
Former Codename : Shimada Peak
Processor Architecture : Zen 5
# of CPU Cores : 64
Multithreading (SMT) : Yes
# of Threads : 128
Max. Boost Clock : Up to 5.4 GHz
Base Clock : 3.2 GHz
L1 Cache : 5120 KB
L2 Cache : 64 MB
L3 Cache : 256 MB
Default TDP : 350W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 9
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
CPU Socket : sTR5
Supporting Chipsets : WRX90 , TRX50 , Pro 695
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64

Supported Extensions :
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE2 , SSE , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB) : Not Included
Max. Operating Temperature (Tjmax) : 95°C
*OS Support : Windows 11 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit , Windows 10 - 64-Bit Edition

--- Connectivity
Native USB 3.2 Gen 2 (10Gbps) : 4
Native SATA Ports : 4
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable/PCIe® 5.0) : 148 , 144 , 128
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 8
System Memory Subtype : RDIMM
System Memory Specification : Up to 6400 MT/s
ECC Support : Yes (Default Enabled)

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100000722WOZ
Product ID Tray : 100-000000722

--- Manageability ---
DASH support : Yes

--- Security ---
AMD Memory Guard : Yes
AMD Secure Processor Support : Yes
Windows Secure Boot Support : Yes
UEFI Secure Boot Support : Yes
Windows Device Guard Support : Yes
Guest Mode Execution (GMET) Trap Support : Yes
Virtualization-Based Security (VBS) Support : Yes
Windows Secured-Core PC Support : Yes
Firmware TPM : Yes
AMD-V (SVM) Support : Yes
AMD-V Nested Paging (RVI) Support : Yes
AMD AVIC (Interrupt Virtualization) Support : Yes
AMD-Vi (I/O MMU Virtualization) Support : Yes
Second Level Address Translation (SLAT) Supported : Yes
Advanced Encryption Standard New Instructions (AES-NI) : Yes
AMD Enhanced Virus Protection (NX bit) : Yes
FIPS Certification : In Review

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD PRO technologies , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 7 5700X3D
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
Regional Availability : Global , China , NA , EMEA , APJ , LATAM
Former Codename : Vermeer
Architecture : Zen 3
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 4.1 GHz
Base Clock : 3 GHz
L1 Cache : 512 KB
L2 Cache : 4 MB
L3 Cache : 96 MB
Default TDP : 105W
Processor Technology for CPU Cores : TSMC 7nm FinFET
Processor Technology for I/O Die : 12nm (Globalfoundries)
CPU Compute Die (CCD) Size : 74mm²
I/O Die (IOD) Size : 125mm²
Package Die Count : 2
CPU Socket : AM4
Supporting Chipsets : X570 , X470 , B550 , B450 , A520
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Max. Operating Temperature (Tjmax) : 90°C
Launch Date : 01/08/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 0
Native SATA Ports : 2
PCI Express® Version : PCIe® 4.0
Native PCIe® Lanes (Total/Usable) : 24 , 20
Additional Usable PCIe Lanes from Motherboard :
X570 16x Gen 4
X470 2x Gen 3, 8x Gen 2
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100001503WOF , 100-100001503
Product ID Tray : 100-000001503

--- Key Features ---
Supported Technologies : AMD StoreMI Technology , AMD Zen 3 Core Architecture , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium

--- General Specifications ---
Name : AMD Ryzen™ 5 5600X
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Desktops , Boxed Processor
Former Codename : Vermeer
# of CPU Cores : 6
# of Threads : 12
Max. Boost Clock : Up to 4.6 GHz
Base Clock : 3.7 GHz
L2 Cache : 3 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
Unlocked for Overclocking : Yes
CPU Socket : AM4
Thermal Solution (PIB) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 11/5/2020
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
PCI Express® Version : PCIe® 4.0
System Memory Type : DDR4
System Memory Specification : Up to 3200 MT/s

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100000065BOX
Product ID Tray : 100-000000065
Product ID MPK : 100-100000065MPK

--- Key Features ---
Supported Technologies : AMD Zen 3 Core Architecture , AMD StoreMI Technology , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium

--- General Specifications ---
Name : AMD Ryzen™ 7 7700X
Family : Ryzen
Series : Ryzen 7000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Raphael AM5
Architecture : Zen 4
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5.4 GHz
Base Clock : 4.5 GHz
L1 Cache : 512 KB
L2 Cache : 8 MB
L3 Cache : 32 MB
Default TDP : 105W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Premium air cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 09/27/2022
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100000591WOF
Product ID Tray : 100-000000591

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : : AMD Ryzen™ 5 5600GT
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Mainstream Desktop
Regional Availability : Global , China , NA , EMEA , APJ , LATAM
Former Codename : Cezanne
Architecture : Zen 3
# of CPU Cores : 6
Multithreading (SMT) : Yes
# of Threads : 12
Max. Boost Clock : Up to 4.6 GHz
Base Clock : 3.6 GHz
L1 Cache : 384 KB
L2 Cache : 3 MB
L3 Cache : 16 MB
Default TDP : 65W
AMD Configurable TDP (cTDP) : 45-65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
CPU Compute Die (CCD) Size : 180mm²
Package Die Count : 1
Unlocked for Overclocking : Yes
CPU Socket : AM4
Thermal Solution (PIB) : AMD Wraith Stealth
Thermal Solution (MPK) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 01/08/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
PCI Express® Version : PCIe® 3.0
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
System Memory Specification : Up to 3200 MT/s
Max Memory Speed :
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667

--- Graphics Capabilities ---
Graphics Model : Radeon™ Graphics
Graphics Core Count : 7
Graphics Frequency : 1900 MHz

--- Product IDs ---
Product ID Boxed : 100-100001488BOX
Product ID Tray : 100-000001488
Product ID MPK : 100-100001488MPK

Specyfikacja dla profesjonalistów

--- General Specifications ---
Name : AMD Ryzen™ Threadripper™ PRO 9965WX
Family : Ryzen Threadripper PRO
Series : Ryzen Threadripper PRO 9000 WX-Series
Form Factor : Desktops
AMD PRO Technologies : Yes
Regional Availability : Global
Former Codename : Shimada Peak
Processor Architecture : Zen 5
# of CPU Cores : 24
Multithreading (SMT) : Yes
# of Threads : 48
Max. Boost Clock : Up to 5.4 GHz
Base Clock : 4.2 GHz
L1 Cache : 1920 KB
L2 Cache : 24 MB
L3 Cache : 128 MB
Default TDP : 350W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 5
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
CPU Socket : sTR5
Supporting Chipsets : WRX90 , TRX50 , Pro 695
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64

Supported Extensions :
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB) : Not Included
Max. Operating Temperature (Tjmax) : 95°C
*OS Support : Windows 11 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit , Windows 10 - 64-Bit Edition

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native SATA Ports : 4
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable/PCIe® 5.0) : 148 , 144 , 128
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 8
System Memory Subtype : RDIMM
System Memory Specification : Up to 6400 MT/s
ECC Support : Yes (Default Enabled)

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100000724WOF
Product ID Tray : 100-000000724

--- Manageability ---
DASH support : Yes

--- Security ---
AMD Memory Guard : Yes
AMD Secure Processor Support : Yes
Windows Secure Boot Support : Yes
UEFI Secure Boot Support : Yes
Windows Device Guard Support : Yes
Guest Mode Execution (GMET) Trap Support : Yes
Virtualization-Based Security (VBS) Support : Yes
Windows Secured-Core PC Support : Yes
Firmware TPM : Yes
AMD-V (SVM) Support : Yes
AMD-V Nested Paging (RVI) Support : Yes
AMD AVIC (Interrupt Virtualization) Support : Yes
AMD-Vi (I/O MMU Virtualization) Support : Yes
Second Level Address Translation (SLAT) Supported : Yes
Advanced Encryption Standard New Instructions (AES-NI) : Yes
AMD Enhanced Virus Protection (NX bit) : Yes
FIPS Certification : In Review

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD PRO technologies , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 9 9950X
Family : Ryzen
Series : Ryzen 9000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Granite Ridge AM5
Architecture : Zen 5
# of CPU Cores : 16
Multithreading (SMT) : Yes
# of Threads : 32
Max. Boost Clock : Up to 5.7 GHz
Base Clock : 4.3 GHz
L1 Cache : 1280 KB
L2 Cache : 16 MB
L3 Cache : 64 MB
Default TDP : 170W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 3
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 08/15/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 2.0 (480Mbps) : 1
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X870E 8x Gen4
X870 4x Gen4
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 192 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100001277WOF
Product ID Tray : 100-000001277

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : : AMD Ryzen™ 7 9800X3D
Family : Ryzen
Series : Ryzen 9000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Granite Ridge AM5
Architecture : Zen 5
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5.2 GHz
Base Clock : 4.7 GHz
L1 Cache : 640 KB
L2 Cache : 8 MB
L3 Cache : 96 MB
Default TDP : 120W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 11/07/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 2.0 (480Mbps) : 1
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 192 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100001084WOF
Product ID Tray : 100-000001084

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

Specyfikacja dla profesjonalistów

--- General Specifications ---
Name : AMD Ryzen™ Threadripper™ PRO 9975WX
Family : Ryzen Threadripper PRO
Series : Ryzen Threadripper PRO 9000 WX-Series
Form Factor : Desktops
AMD PRO Technologies : Yes
Regional Availability : Global
Former Codename : Shimada Peak
Processor Architecture : Zen 5
# of CPU Cores : 32
Multithreading (SMT) : Yes
# of Threads : 64
Max. Boost Clock : Up to 5.4 GHz
Base Clock : 4 GHz
L1 Cache : 2560 KB
L2 Cache : 32 MB
L3 Cache : 128 MB
Default TDP : 350W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 5
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
CPU Socket : sTR5
Supporting Chipsets : WRX90 , TRX50 , Pro 695
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64

Supported Extensions :
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB) : Not Included
Max. Operating Temperature (Tjmax) : 95°C
*OS Support : Windows 11 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit , Windows 10 - 64-Bit Edition

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native SATA Ports : 4
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable/PCIe® 5.0) : 148 , 144 , 128
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 8
System Memory Subtype : RDIMM
System Memory Specification : Up to 6400 MT/s
ECC Support : Yes (Default Enabled)

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100000723WOF
Product ID Tray : 100-000000723

--- Manageability ---
DASH support : Yes

--- Security ---
AMD Memory Guard : Yes
AMD Secure Processor Support : Yes
Windows Secure Boot Support : Yes
UEFI Secure Boot Support : Yes
Windows Device Guard Support : Yes
Guest Mode Execution (GMET) Trap Support : Yes
Virtualization-Based Security (VBS) Support : Yes
Windows Secured-Core PC Support : Yes
Firmware TPM : Yes
AMD-V (SVM) Support : Yes
AMD-V Nested Paging (RVI) Support : Yes
AMD AVIC (Interrupt Virtualization) Support : Yes
AMD-Vi (I/O MMU Virtualization) Support : Yes
Second Level Address Translation (SLAT) Supported : Yes
Advanced Encryption Standard New Instructions (AES-NI) : Yes
AMD Enhanced Virus Protection (NX bit) : Yes
FIPS Certification : In Review

--- Key Features---
Supported Technologies : AMD EXPO™ Technology , AMD PRO technologies , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 7 7700X
Family : Ryzen
Series : Ryzen 7000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Raphael AM5
Architecture : Zen 4
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5.4 GHz
Base Clock : 4.5 GHz
L1 Cache : 512 KB
L2 Cache : 8 MB
L3 Cache : 32 MB
Default TDP : 105W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Premium air cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 09/27/2022
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100000591WOF
Product ID Tray : 100-000000591

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 5 3400G with Radeon™ RX Vega 11 Graphics
Family : Ryzen
Series : Ryzen 3000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Mainstream Desktop
AMD PRO Technologies : No
Regional Availability : Global , China , NA , EMEA , APJ , LATAM
Former Codename : Picasso
Architecture : Zen+
# of CPU Cores : 4
Multithreading (SMT) : Yes
# of Threads : 8
Max. Boost Clock : Up to 4.2 GHz
Base Clock : 3.7 GHz
L1 Cache : 384 KB
L2 Cache : 2 MB
L3 Cache : 4 MB
Default TDP : 65W
AMD Configurable TDP (cTDP) : 45-65W
Processor Technology for CPU Cores : 12nm FinFET
CPU Compute Die (CCD) Size : 210mm²
Package Die Count : 1
Total Transistor Count : 4.94 Billion
Unlocked for Overclocking : Yes
CPU Socket : AM4
Supporting Chipsets : X570 , X470 , X370 , B450 , B350 , A320
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : AMD Wraith Spire
Thermal Solution (MPK) : AMD Wraith Spire
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 07/07/2019
*OS Support : Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 0
Native USB 3.2 Gen 1 (5Gbps) : 4
Native USB 2.0 (480Mbps) : 0
Native SATA Ports : 0
PCI Express® Version : PCIe® 3.0
Native PCIe® Lanes (Total/Usable) : 20 , 16
Additional Usable PCIe Lanes from Motherboard : X470 2x Gen 3, 8x Gen 2
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 64 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR4-2933
2x2R DDR4-2667
4x1R DDR4-2133
4x2R DDR4-1866
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : Radeon™ RX Vega 11 Graphics
Graphics Core Count : 11
Total Graphics Shaders : 704
Graphics Frequency : 1400 MHz
GPU Max. Memory : 2 GB
WDDM Version : 2.7
DirectX® Version : 12
OpenGL® : 4.6
OpenCL™ : 2.2
DisplayPort™ Version : 1.4a
DisplayPort Extensions : HBR3 , HDR Metadata , Adaptive-Sync
DisplayPort Max Refresh Rates (SDR) : 3840x2160 @ 60Hz , 3440x1440 @ 144Hz , 2560x1440 @ 180Hz , 1920x1080 @ 240Hz
DisplayPort Max Refresh Rates (HDR) : 3840x2160 @ 60Hz , 3440x1440 @ 60Hz , 2560x1440 @ 60Hz , 1920x1080 @ 120Hz
HDMI® Version : 2.0
HDCP Version Supported : 2.2
USB Type-C® DisplayPort™ Alternate Mode : Yes
Multi-Monitor Support : Yes
Max Displays : 3
AMD FreeSync™ : Yes
AMD Eyefinity Single Large Surface (SLS) : No
Wireless Display : Miracast
Max Video Encode Bandwidth (SDR) : 1080p205 8bpc H.264, 1440p115 8bpc H.264, 2160p51 8bpc H.264, 1080p205 8bpc H.265, 1440p115 8bpc H.265, 2160p51 8bpc H.265
Max Video Decode Bandwidth : 1080p60 MPEG2, 1080p60 VC1, 1080p240 8bpc VP9, 1080p240 10bpc VP9, 1080p240 H.264, 1080p240 8bpc H.265, 1080p240 10bpc H.265, 1080p240 JPEG 8bpc

--- Product IDs ---
Product ID Boxed : YD3400C5FHBOX
Product ID Tray : YD3400C5M4MFH
Product ID MPK : YD3400C5FHMPK

--- Security, Virtualization, and Manageability ---
AMD Enhanced Virus Protection (NX bit) : Yes

--- General Specifications ---
Name : AMD Ryzen™ 7 5800XT
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Boxed Processor , Desktops
Market Segment : Enthusiast Desktop
Regional Availability : Global
Former Codename : Vermeer
Architecture : Zen 3
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 4.8 GHz
Base Clock : 3.8 GHz
L1 Cache : 512 KB
L2 Cache : 4 MB
L3 Cache : 32 MB
Default TDP : 105W
Processor Technology for CPU Cores : TSMC 7nm FinFET
Processor Technology for I/O Die : 12nm (Globalfoundries)
CPU Compute Die (CCD) Size : 74mm²
I/O Die (IOD) Size : 125mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
CPU Socket : AM4
Supporting Chipsets : X570 , B550 , A520 , X470 , B450
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : AMD Wraith Prism
Max. Operating Temperature (Tjmax) : 90°C
Launch Date : 07/31/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 0
Native SATA Ports : 2
PCI Express® Version : PCIe® 4.0
Native PCIe® Lanes (Total/Usable) : 24 , 20
Additional Usable PCIe Lanes from Motherboard :
amd_x570 16x Gen 4
amd_x470 2x Gen 3, 8x Gen 2
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100001582BOX , 100-100001582CBX
Product ID Tray : 100-000001582
Product ID MPK : 100-100001582MPK , 100-100001582CPK

--- Key Features ---
Supported Technologies : AMD Zen 3 Core Architecture , AMD StoreMI Technology , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium

--- General Specifications ---
Name : AMD Ryzen™ 7 8700G
Family : Ryzen
Series : Ryzen 8000 Series
Form Factor : Desktops
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Phoenix
Architecture : Zen 4
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5.1 GHz
Base Clock : 4.2 GHz
L2 Cache : 8 MB
L3 Cache : 16 MB
Default TDP : 65W
AMD Configurable TDP (cTDP) : 45-65W
Processor Technology for CPU Cores : TSMC 4nm FinFET
CPU Compute Die (CCD) Size : 178mm²
Package Die Count : 1
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 1/31/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 4 (40Gbps) : 2
Native USB 3.2 Gen 2 (10Gbps) : 2
Native USB 2.0 (480Mbps) : 1
PCI Express® Version : PCIe® 4.0
Native PCIe® Lanes (Total/Usable) : 20 , 16
NVMe Support : Boot , RAID0 , RAID1
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 256 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ 780M
Graphics Core Count : 12
Graphics Frequency : 2900 MHz
DirectX® Version : 12
DisplayPort™ Version : 2.1
DisplayPort Extensions : Adaptive-Sync , HDR Metadata , UHBR10
DisplayPort Max Refresh Rates (SDR) : 7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz
DisplayPort Max Refresh Rates (HDR) : 7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz
HDMI® Version : 2.1
HDCP Version Supported : 2.3
USB Type-C® DisplayPort™ Alternate Mode : Yes
Multi-Monitor Support : Yes
Max Displays : 4
AMD FreeSync™ : Yes
Wireless Display : Miracast

Max Video Encode Bandwidth (SDR)
1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1

Max Video Decode Bandwidth
1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1

AMD SmartAccess Memory : Available

--- AI Engine Capabilities ---
Brand Name : AMD Ryzen™ AI
AMD Ryzen™ AI : Available
Performance : Up to 16 TOPS

--- Product IDs ---
Product ID Boxed : 100-100001236BOX
Product ID Tray : 100-000001236
Product ID MPK : 100-100001236MPK

--- Security, Virtualization, and Manageability ---
AMD Enhanced Virus Protection (NX bit) : Yes

General Specifications
Name : AMD Ryzen™ 5 5600G
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Desktops , Boxed Processor
Former Codename : Cezanne
Architecture : Zen 3
# of CPU Cores : 6
# of Threads : 12
Max. Boost Clock : Up to 4.4 GHz
Base Clock : 3.9 GHz
L2 Cache : 3 MB
L3 Cache : 16 MB
Default TDP : 65W
AMD Configurable TDP (cTDP) : 45-65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
Unlocked for Overclocking : Yes
CPU Socket : AM4
Thermal Solution (PIB) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 4/13/2021
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity
PCI Express® Version : PCIe® 3.0
System Memory Type : DDR4
Memory Channels : 2
System Memory Specification : Up to 3200 MT/s

Graphics Capabilities
Graphics Model : Radeon™ Graphics
Graphics Core Count : 7
Graphics Frequency : 1900 MHz

Product IDs
Product ID Boxed : 100-100000252BOX
Product ID Tray : 100-000000252
Product ID MPK : 100-100000252MPK

---- General Specifications ----
Name : AMD Ryzen™ 5 5500GT
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Mainstream Desktop
Regional Availability : Global , China , NA , EMEA , APJ , LATAM
Former Codename : Cezanne
Architecture : Zen 3
# of CPU Cores : 6
Multithreading (SMT) : Yes
# of Threads : 12
Max. Boost Clock : Up to 4.4 GHz
Base Clock : 3.6 GHz
L1 Cache : 384 KB
L2 Cache : 3 MB
L3 Cache : 16 MB
Default TDP : 65W
AMD Configurable TDP (cTDP) : 45-65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
CPU Compute Die (CCD) Size : 180mm²
Package Die Count : 1
Unlocked for Overclocking : Yes
CPU Socket : AM4
Thermal Solution (PIB) : AMD Wraith Stealth
Thermal Solution (MPK) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 01/08/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

---- Connectivity ----
PCI Express® Version : PCIe® 3.0
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667

---- Graphics Capabilities ----
Graphics Model : Radeon™ Graphics
Graphics Core Count : 7
Graphics Frequency : 1900 MHz

Product IDs
Product ID Boxed : 100-100001489BOX
Product ID Tray : 100-000001489
Product ID MPK : 100-100001489MPK

Specyfikacja dla profesjonalistów

--- General Specifications ---
Name : AMD Ryzen™ Threadripper™ PRO 9975WX
Family : Ryzen Threadripper PRO
Series : Ryzen Threadripper PRO 9000 WX-Series
Form Factor : Desktops
AMD PRO Technologies : Yes
Regional Availability : Global
Former Codename : Shimada Peak
Processor Architecture : Zen 5
# of CPU Cores : 32
Multithreading (SMT) : Yes
# of Threads : 64
Max. Boost Clock : Up to 5.4 GHz
Base Clock : 4 GHz
L1 Cache : 2560 KB
L2 Cache : 32 MB
L3 Cache : 128 MB
Default TDP : 350W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 5
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
CPU Socket : sTR5
Supporting Chipsets : WRX90 , TRX50 , Pro 695
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64

Supported Extensions :
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB) : Not Included
Max. Operating Temperature (Tjmax) : 95°C
*OS Support : Windows 11 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit , Windows 10 - 64-Bit Edition

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native SATA Ports : 4
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable/PCIe® 5.0) : 148 , 144 , 128
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 8
System Memory Subtype : RDIMM
System Memory Specification : Up to 6400 MT/s
ECC Support : Yes (Default Enabled)

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100000723WOF
Product ID Tray : 100-000000723

--- Manageability ---
DASH support : Yes

--- Security ---
AMD Memory Guard : Yes
AMD Secure Processor Support : Yes
Windows Secure Boot Support : Yes
UEFI Secure Boot Support : Yes
Windows Device Guard Support : Yes
Guest Mode Execution (GMET) Trap Support : Yes
Virtualization-Based Security (VBS) Support : Yes
Windows Secured-Core PC Support : Yes
Firmware TPM : Yes
AMD-V (SVM) Support : Yes
AMD-V Nested Paging (RVI) Support : Yes
AMD AVIC (Interrupt Virtualization) Support : Yes
AMD-Vi (I/O MMU Virtualization) Support : Yes
Second Level Address Translation (SLAT) Supported : Yes
Advanced Encryption Standard New Instructions (AES-NI) : Yes
AMD Enhanced Virus Protection (NX bit) : Yes
FIPS Certification : In Review

--- Key Features---
Supported Technologies : AMD EXPO™ Technology , AMD PRO technologies , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 9 9950X3D
Family : Ryzen
Series : Ryzen 9000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Granite Ridge AM5
Architecture : Zen 5
# of CPU Cores : 16
Multithreading (SMT) : Yes
# of Threads : 32
Max. Boost Clock : Up to 5.7 GHz
Base Clock : 4.3 GHz
L1 Cache : 1280 KB
L2 Cache : 16 MB
L3 Cache : 128 MB
Default TDP : 170W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 3
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AVX512 , AVX2 , AVX , FMA3 , MMX-plus , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 03/12/2025
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 2.0 (480Mbps) : 1
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 192 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100000719WOF
Product ID Tray : 100-000000719

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

Specyfikacja dla profesjonalistów

--- General Specifications ---
Name : AMD Ryzen™ Threadripper™ 9970X
Family : Ryzen Threadripper
Series : Ryzen Threadripper 9000 Series
Form Factor : Desktops
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Shimada Peak
Processor Architecture : Zen 5
# of CPU Cores : 32
Multithreading (SMT) : Yes
# of Threads : 64
Max. Boost Clock : Up to 5.4 GHz
Base Clock : 4 GHz
L1 Cache : 2560 KB
L2 Cache : 32 MB
L3 Cache : 128 MB
Default TDP : 350W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 5
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
CPU Socket : sTR5
Supporting Chipsets : TRX50
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64

Supported Extensions :
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB) : Not Included
Max. Operating Temperature (Tjmax) : 95°C
*OS Support : Windows 11 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit , Windows 10 - 64-Bit Edition

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native SATA Ports : 2
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 92 , 88
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 4
System Memory Subtype : RDIMM
System Memory Specification : Up to 6400 MT/s
ECC Support : Yes (Default Enabled)

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100001594WOF
Product ID Tray : 100-000001594

--- Manageability ---
DASH support : Yes

--- Security ---
AMD Memory Guard : Yes
AMD Secure Processor Support : Yes
Windows Secure Boot Support : Yes
UEFI Secure Boot Support : Yes
Windows Device Guard Support : Yes
Guest Mode Execution (GMET) Trap Support : Yes
Virtualization-Based Security (VBS) Support : Yes
Windows Secured-Core PC Support : Yes
Firmware TPM : Yes
AMD-V (SVM) Support : Yes
AMD-V Nested Paging (RVI) Support : Yes
AMD AVIC (Interrupt Virtualization) Support : Yes
AMD-Vi (I/O MMU Virtualization) Support : Yes
Second Level Address Translation (SLAT) Supported : Yes
Advanced Encryption Standard New Instructions (AES-NI) : Yes
AMD Enhanced Virus Protection (NX bit) : Yes
FIPS Certification : In Review

--- Key Features---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 7 5700X
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
Regional Availability : Global , China , NA , EMEA , APJ , LATAM
Former Codename : Vermeer
Architecture : Zen 3
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 4.6 GHz
Base Clock : 3.4 GHz
L1 Cache : 512 KB
L2 Cache : 4 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
Processor Technology for I/O Die : 12nm (Globalfoundries)
CPU Compute Die (CCD) Size : 74mm²
I/O Die (IOD) Size : 125mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
CPU Socket : AM4
Supporting Chipsets : X570 , X470 , X370 , B550 , B450 , B350 , A520
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Max. Operating Temperature (Tjmax) : 90°C
Launch Date : 04/04/2022
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 0
Native SATA Ports : 2
PCI Express® Version : PCIe® 4.0
Native PCIe® Lanes (Total/Usable) : 24 , 20
Additional Usable PCIe Lanes from Motherboard :
X570 16x Gen 4
X470 2x Gen 3, 8x Gen 2
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
System Memory Specification : Up to 3200 MT/s
Max Memory Speed :
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100000926WOF
Product ID Tray : 100-000000926

--- Key Features ---
Supported Technologies : AMD StoreMI Technology , AMD Ryzen™ VR-Ready Premium

--- General Specifications ---
Name : : AMD Ryzen™ 7 9800X3D
Family : Ryzen
Series : Ryzen 9000 Series
Form Factor : Desktops , Tray Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Granite Ridge AM5
Architecture : Zen 5
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5.2 GHz
Base Clock : 4.7 GHz
L1 Cache : 640 KB
L2 Cache : 8 MB
L3 Cache : 96 MB
Default TDP : 120W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 11/07/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 2.0 (480Mbps) : 1
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 192 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100001084WOF
Product ID Tray : 100-000001084

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

Typ / Rodzaj obudowy: AMD Ryzen ThreadRipper PRO 7995WX
Ilość rdzeni: 96 rdzeni
Ilość wątków: 192 gwinty
Pamięć podręczna: 384 MB
Szczegóły pamięci podręcznej: L1 - 6 MB
L2 - 96 MB
L3 - 384 MB
Ilość procesorów: 1
Częstotliwość zegara: 2.5 GHz
Max Turbo Speed: 5.1 GHz
Zgodne gniazda procesora: Socket sTR5
Proces wytwarzania: 5 nm
Ilość wydzielanego ciepła: 350 W
Specyfikacja termiczna: 95 °C
Wersja PCI Express: 5.0
Liczba Ścieżek PCI Express: 148
Rodzaj architektury: Architektura Rdzenia „Zen 4", AMD EXPO Technology, AMD RyzenTechnologies, technologie AMD PRO, Technologia AMD Precision Boost 2
Rodzaj opakowania: Rozwiązanie Processor in a Box (PIB) firmy AMD bez radiatora/wentylatora (WOF)
Reklamacje: 36 miesięcy w serwisie
