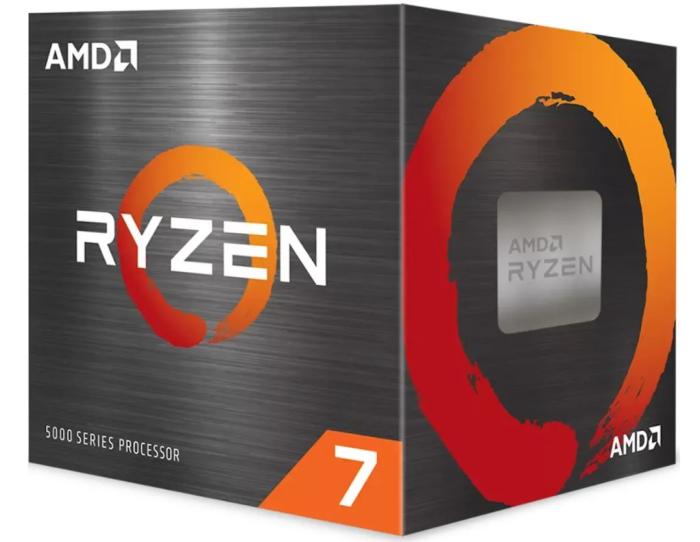

AMD Ryzen 7 5800XT 3.8/4.8 GHz BOX (8 rdzeni / 16 wątków) (Socket AM4, 64bit, 105W) [100-100001582BOX]

--- General Specifications ---
Name : AMD Ryzen™ 7 5800XT
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Boxed Processor , Desktops
Market Segment : Enthusiast Desktop
Regional Availability : Global
Former Codename : Vermeer
Architecture : Zen 3
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 4.8 GHz
Base Clock : 3.8 GHz
L1 Cache : 512 KB
L2 Cache : 4 MB
L3 Cache : 32 MB
Default TDP : 105W
Processor Technology for CPU Cores : TSMC 7nm FinFET
Processor Technology for I/O Die : 12nm (Globalfoundries)
CPU Compute Die (CCD) Size : 74mm²
I/O Die (IOD) Size : 125mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
CPU Socket : AM4
Supporting Chipsets : X570 , B550 , A520 , X470 , B450
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : AMD Wraith Prism
Max. Operating Temperature (Tjmax) : 90°C
Launch Date : 07/31/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 0
Native SATA Ports : 2
PCI Express® Version : PCIe® 4.0
Native PCIe® Lanes (Total/Usable) : 24 , 20
Additional Usable PCIe Lanes from Motherboard :
amd_x570 16x Gen 4
amd_x470 2x Gen 3, 8x Gen 2
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100001582BOX , 100-100001582CBX
Product ID Tray : 100-000001582
Product ID MPK : 100-100001582MPK , 100-100001582CPK

--- Key Features ---
Supported Technologies : AMD Zen 3 Core Architecture , AMD StoreMI Technology , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium
