AMD Ryzen 5 (Socket AM4, 64bit)

--- General Specifications ---
Name : AMD Ryzen™ 5 5600
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Mainstream Desktop
Regional Availability : Global , China , NA , EMEA , APJ , LATAM
Former Codename : Vermeer
Architecture : Zen 3
# of CPU Cores : 6
Multithreading (SMT) : Yes
# of Threads : 12
Max. Boost Clock : Up to 4.4 GHz
Base Clock : 3.5 GHz
L1 Cache : 384 KB
L2 Cache : 3 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
Processor Technology for I/O Die : 12nm (Globalfoundries)
CPU Compute Die (CCD) Size : 74mm²
I/O Die (IOD) Size : 125mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
CPU Socket : AM4
Supporting Chipsets : X570 , X470 , X370 , B550 , B450 , B350 , A520
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 90°C
Launch Datev04/04/2022
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 0
Native SATA Ports : 2
PCI Express® Version : PCIe® 4.0
Native PCIe® Lanes (Total/Usable) : 24 , 20
Additional Usable PCIe Lanes from Motherboard :
X570 16x Gen 4
X470 2x Gen 3, 8x Gen 2
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
System Memory Specification : Up to 3200 MT/s
Max Memory Speed :
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100000927BOX
Product ID Tray : 100-000000927

--- Key Features ---
Supported Technologies : AMD StoreMI Technology , AMD Ryzen™ VR-Ready Premium

--- General Specifications ---
Name : AMD Ryzen™ 5 5600X
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Desktops , Boxed Processor
Former Codename : Vermeer
# of CPU Cores : 6
# of Threads : 12
Max. Boost Clock : Up to 4.6 GHz
Base Clock : 3.7 GHz
L2 Cache : 3 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
Unlocked for Overclocking : Yes
CPU Socket : AM4
Thermal Solution (PIB) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 11/5/2020
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
PCI Express® Version : PCIe® 4.0
System Memory Type : DDR4
System Memory Specification : Up to 3200 MT/s

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100000065BOX
Product ID Tray : 100-000000065
Product ID MPK : 100-100000065MPK

--- Key Features ---
Supported Technologies : AMD Zen 3 Core Architecture , AMD StoreMI Technology , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium

--- General Specifications ---
Name : AMD Ryzen™ 5 4500U
Family : Ryzen
Series : Ryzen 4000 Series
Form Factor : Laptops , Desktops
Former Codename : Renoir
# of CPU Cores : 6
# of Threads : 6
Max. Boost Clock : Up to 4 GHz
Base Clock : 2.3 GHz
L2 Cache : 3 MB
L3 Cache : 8 MB
Default TDP : 15W
AMD Configurable TDP (cTDP) : 10-25W
Processor Technology for CPU Cores : TSMC 7nm FinFET
CPU Socket : FP6
Max. Operating Temperature (Tjmax) : 105°C
Launch Date : 1/6/2020
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
PCI Express® Version : PCIe® 3.0
System Memory Type : DDR4 - Up to 3200 , LPDDR4 - Up to 4266

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 6
Graphics Frequency : 1500 MHz

--- General Specifications ---
Name : AMD Ryzen™ 5 3600
Family : Ryzen
Series : Ryzen 3000 Series
Form Factor : Desktops , Boxed Processor
Former Codename : Matisse
# of CPU Cores : 6
# of Threads : 12
Max. Boost Clock : Up to 4.2 GHz
Base Clock : 3.6 GHz
L1 Cache : 384 KB
L2 Cache : 3 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
Unlocked for Overclocking : Yes
CPU Socket : AM4
Thermal Solution (PIB) : AMD Wraith Stealth
Thermal Solution (MPK) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 7/7/2019
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
PCI Express® Version : PCIe® 4.0 x16
System Memory Type : DDR4
Memory Channels : 2
System Memory Specification : Up to 3200 MT/s

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100000031BOX
Product ID Tray : 100-000000031
Product ID MPK : 100-100000031MPK

General Specifications
Name : AMD Ryzen™ 5 5600G
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Desktops , Boxed Processor
Former Codename : Cezanne
Architecture : Zen 3
# of CPU Cores : 6
# of Threads : 12
Max. Boost Clock : Up to 4.4 GHz
Base Clock : 3.9 GHz
L2 Cache : 3 MB
L3 Cache : 16 MB
Default TDP : 65W
AMD Configurable TDP (cTDP) : 45-65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
Unlocked for Overclocking : Yes
CPU Socket : AM4
Thermal Solution (PIB) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 4/13/2021
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity
PCI Express® Version : PCIe® 3.0
System Memory Type : DDR4
Memory Channels : 2
System Memory Specification : Up to 3200 MT/s

Graphics Capabilities
Graphics Model : Radeon™ Graphics
Graphics Core Count : 7
Graphics Frequency : 1900 MHz

Product IDs
Product ID Boxed : 100-100000252BOX
Product ID Tray : 100-000000252
Product ID MPK : 100-100000252MPK

General Specifications

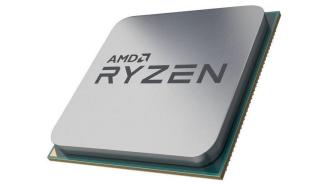

Name : AMD Ryzen™ 5 5600XT
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Mainstream Desktop
Regional Availability : Global , China , NA , EMEA , APJ , LATAM
Former Codename : Vermeer
Architecture : Zen 3
# of CPU Cores : 6
Multithreading (SMT) : Yes
# of Threads : 12
Max. Boost Clock : Up to 4.7 GHz
Base Clock : 3.7 GHz
L1 Cache : 384 KB
L2 Cache : 3 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
Processor Technology for I/O Die : 12nm (Globalfoundries)
CPU Compute Die (CCD) Size : 74mm²
I/O Die (IOD) Size : 125mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
CPU Socket : AM4
Supporting Chipsets : X570 , X470 , X370 , B550 , B450 , B350 , A520
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 10/31/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 0
Native SATA Ports : 2
PCI Express® Version : PCIe® 4.0
Native PCIe® Lanes (Total/Usable) : 24 , 20
Additional Usable PCIe Lanes from Motherboard :
X570 16x Gen 4
X470 2x Gen 3, 8x Gen 2
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
System Memory Specification : Up to 3200 MT/s
Max Memory Speed :
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
ECC Support : Yes (Requires mobo support)

Graphics Capabilities
Graphics Model : Discrete Graphics Card Required

Product IDs
Product ID Tray : 100-000001585

Key Features
Supported Technologies : AMD StoreMI Technology , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium

--- General Specifications ---

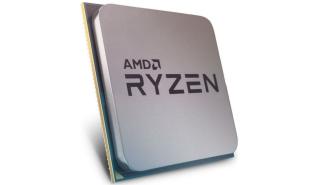

Name : : AMD Ryzen™ 5 3400G with Radeon™ RX Vega 11 Graphics
Family : Ryzen
Series : Ryzen 3000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Mainstream Desktop
AMD PRO Technologies : No
Regional Availability : Global , China , NA , EMEA , APJ , LATAM
Former Codename : Picasso
Architecture : Zen+
# of CPU Cores : 4
Multithreading (SMT) : Yes
# of Threads : 8
Max. Boost Clock : Up to 4.2 GHz
Base Clock : 3.7 GHz
L1 Cache : 384 KB
L2 Cache : 2 MB
L3 Cache : 4 MB
Default TDP : 65W
AMD Configurable TDP (cTDP) : 45-65W
Processor Technology for CPU Cores : 12nm FinFET
CPU Compute Die (CCD) Size : 210mm²
Package Die Count : 1
Total Transistor Count : 4.94 Billion
Unlocked for Overclocking : Yes
CPU Socket : AM4
Supporting Chipsets : X570 , X470 , X370 , B450 , B350 , A320
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : AMD Wraith Spire
Thermal Solution (MPK) : AMD Wraith Spire
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 07/07/2019
*OS Support : Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- onnectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 0
Native USB 3.2 Gen 1 (5Gbps) : 4
Native USB 2.0 (480Mbps) : 0
Native SATA Ports : 0
PCI Express® Version : PCIe® 3.0
Native PCIe® Lanes (Total/Usable) : 20 , 16
Additional Usable PCIe Lanes from Motherboard : X470 2x Gen 3, 8x Gen 2
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 64 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR4-2933
2x2R DDR4-2667
4x1R DDR4-2133
4x2R DDR4-1866
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : Radeon™ RX Vega 11 Graphics
Graphics Core Count : 11
Total Graphics Shaders : 704
Graphics Frequency : 1400 MHz
GPU Max. Memory : 2 GB
WDDM Version : 2.7
DirectX® Version : 12
OpenGL® : 4.6
OpenCL™ : 2.2
DisplayPort™ Version : 1.4a
DisplayPort Extensions : HBR3 , HDR Metadata , Adaptive-Sync
DisplayPort Max Refresh Rates (SDR) : 3840x2160 @ 60Hz , 3440x1440 @ 144Hz , 2560x1440 @ 180Hz , 1920x1080 @ 240Hz
DisplayPort Max Refresh Rates (HDR) : 3840x2160 @ 60Hz , 3440x1440 @ 60Hz , 2560x1440 @ 60Hz , 1920x1080 @ 120Hz
HDMI® Version : 2.0
HDCP Version Supported : 2.2
USB Type-C® DisplayPort™ Alternate Mode : Yes
Multi-Monitor Support : Yes
Max Displays : 3
AMD FreeSync™ : Yes
AMD Eyefinity Single Large Surface (SLS) : No
Wireless Display : Miracast
Max Video Encode Bandwidth (SDR) : 1080p205 8bpc H.264, 1440p115 8bpc H.264, 2160p51 8bpc H.264, 1080p205 8bpc H.265, 1440p115 8bpc H.265, 2160p51 8bpc H.265
Max Video Decode Bandwidth : 1080p60 MPEG2, 1080p60 VC1, 1080p240 8bpc VP9, 1080p240 10bpc VP9, 1080p240 H.264, 1080p240 8bpc H.265, 1080p240 10bpc H.265, 1080p240 JPEG 8bpc

--- Product IDs ---
Product ID Boxed : YD3400C5FHBOX
Product ID Tray : YD3400C5M4MFH
Product ID MPK : YD3400C5FHMPK

--- Security, Virtualization, and Manageability ---
AMD Enhanced Virus Protection (NX bit) : Yes

--- General Specifications ---
Name : AMD Ryzen™ 5 5600X
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Desktops , Boxed Processor
Former Codename : Vermeer
# of CPU Cores : 6
# of Threads : 12
Max. Boost Clock : Up to 4.6 GHz
Base Clock : 3.7 GHz
L2 Cache : 3 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
Unlocked for Overclocking : Yes
CPU Socket : AM4
Thermal Solution (PIB) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 11/5/2020
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
PCI Express® Version : PCIe® 4.0
System Memory Type : DDR4
System Memory Specification : Up to 3200 MT/s

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100000065BOX
Product ID Tray : 100-000000065
Product ID MPK : 100-100000065MPK

--- Key Features ---
Supported Technologies : AMD Zen 3 Core Architecture , AMD StoreMI Technology , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium

--- General Specifications ---
Name : AMD Ryzen™ 5 5600
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Mainstream Desktop
Regional Availability : Global , China , NA , EMEA , APJ , LATAM
Former Codename : Vermeer
Architecture : Zen 3
# of CPU Cores : 6
Multithreading (SMT) : Yes
# of Threads : 12
Max. Boost Clock : Up to 4.4 GHz
Base Clock : 3.5 GHz
L1 Cache : 384 KB
L2 Cache : 3 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
Processor Technology for I/O Die : 12nm (Globalfoundries)
CPU Compute Die (CCD) Size : 74mm²
I/O Die (IOD) Size : 125mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
CPU Socket : AM4
Supporting Chipsets : X570 , X470 , X370 , B550 , B450 , B350 , A520
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 90°C
Launch Datev04/04/2022
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 0
Native SATA Ports : 2
PCI Express® Version : PCIe® 4.0
Native PCIe® Lanes (Total/Usable) : 24 , 20
Additional Usable PCIe Lanes from Motherboard :
X570 16x Gen 4
X470 2x Gen 3, 8x Gen 2
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
System Memory Specification : Up to 3200 MT/s
Max Memory Speed :
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100000927BOX
Product ID Tray : 100-000000927

--- Key Features ---
Supported Technologies : AMD StoreMI Technology , AMD Ryzen™ VR-Ready Premium

--- General Specifications ---
Name : : AMD Ryzen™ 5 5600GT
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Mainstream Desktop
Regional Availability : Global , China , NA , EMEA , APJ , LATAM
Former Codename : Cezanne
Architecture : Zen 3
# of CPU Cores : 6
Multithreading (SMT) : Yes
# of Threads : 12
Max. Boost Clock : Up to 4.6 GHz
Base Clock : 3.6 GHz
L1 Cache : 384 KB
L2 Cache : 3 MB
L3 Cache : 16 MB
Default TDP : 65W
AMD Configurable TDP (cTDP) : 45-65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
CPU Compute Die (CCD) Size : 180mm²
Package Die Count : 1
Unlocked for Overclocking : Yes
CPU Socket : AM4
Thermal Solution (PIB) : AMD Wraith Stealth
Thermal Solution (MPK) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 01/08/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
PCI Express® Version : PCIe® 3.0
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
System Memory Specification : Up to 3200 MT/s
Max Memory Speed :
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667

--- Graphics Capabilities ---
Graphics Model : Radeon™ Graphics
Graphics Core Count : 7
Graphics Frequency : 1900 MHz

--- Product IDs ---
Product ID Boxed : 100-100001488BOX
Product ID Tray : 100-000001488
Product ID MPK : 100-100001488MPK

---- General Specifications ----
Name : AMD Ryzen™ 5 5500GT
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Mainstream Desktop
Regional Availability : Global , China , NA , EMEA , APJ , LATAM
Former Codename : Cezanne
Architecture : Zen 3
# of CPU Cores : 6
Multithreading (SMT) : Yes
# of Threads : 12
Max. Boost Clock : Up to 4.4 GHz
Base Clock : 3.6 GHz
L1 Cache : 384 KB
L2 Cache : 3 MB
L3 Cache : 16 MB
Default TDP : 65W
AMD Configurable TDP (cTDP) : 45-65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
CPU Compute Die (CCD) Size : 180mm²
Package Die Count : 1
Unlocked for Overclocking : Yes
CPU Socket : AM4
Thermal Solution (PIB) : AMD Wraith Stealth
Thermal Solution (MPK) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 01/08/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

---- Connectivity ----
PCI Express® Version : PCIe® 3.0
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667

---- Graphics Capabilities ----
Graphics Model : Radeon™ Graphics
Graphics Core Count : 7
Graphics Frequency : 1900 MHz

Product IDs
Product ID Boxed : 100-100001489BOX
Product ID Tray : 100-000001489
Product ID MPK : 100-100001489MPK

--- General Specifications ---
Name : : AMD Ryzen™ 5 5500
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Mainstream Desktop
Regional Availability : Global , China , NA , EMEA , APJ , LATAM
Former Codename : Cezanne
Architecture : Zen 3
# of CPU Cores : 6
Multithreading (SMT) : Yes
# of Threads : 12
Max. Boost Clock : Up to 4.2 GHz
Base Clock : 3.6 GHz
L1 Cache : 384 KB
L2 Cache : 3 MB
L3 Cache : 16 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
CPU Compute Die (CCD) Size : 180mm²
Package Die Count : 1
Unlocked for Overclocking : Yes
CPU Socket : AM4
Supporting Chipsets : X570 , X470 , X370 , B550 , B450 , B350 , A520
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 90°C
Launch Date : 04/04/2022
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 4 (40Gbps) : 0
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 0
Native SATA Ports : 2
PCI Express® Version : PCIe® 3.0
Native PCIe® Lanes (Total/Usable) : 24 , 20
Additional Usable PCIe Lanes from Motherboard : X570 16x Gen 3 / X470 2x Gen 3, 8x Gen 2
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
System Memory Specification : Up to 3200 MT/s
Max Memory Speed :
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
ECC Support : No

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100000457BOX
Product ID Tray : 100-000000457

--- Key Features ---
Supported Technologies : AMD StoreMI Technology , AMD Ryzen™ VR-Ready Premium

--- General Specifications ---
Name : AMD Ryzen™ 5 3400G with Radeon™ RX Vega 11 Graphics
Family : Ryzen
Series : Ryzen 3000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Mainstream Desktop
AMD PRO Technologies : No
Regional Availability : Global , China , NA , EMEA , APJ , LATAM
Former Codename : Picasso
Architecture : Zen+
# of CPU Cores : 4
Multithreading (SMT) : Yes
# of Threads : 8
Max. Boost Clock : Up to 4.2 GHz
Base Clock : 3.7 GHz
L1 Cache : 384 KB
L2 Cache : 2 MB
L3 Cache : 4 MB
Default TDP : 65W
AMD Configurable TDP (cTDP) : 45-65W
Processor Technology for CPU Cores : 12nm FinFET
CPU Compute Die (CCD) Size : 210mm²
Package Die Count : 1
Total Transistor Count : 4.94 Billion
Unlocked for Overclocking : Yes
CPU Socket : AM4
Supporting Chipsets : X570 , X470 , X370 , B450 , B350 , A320
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : AMD Wraith Spire
Thermal Solution (MPK) : AMD Wraith Spire
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 07/07/2019
*OS Support : Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 0
Native USB 3.2 Gen 1 (5Gbps) : 4
Native USB 2.0 (480Mbps) : 0
Native SATA Ports : 0
PCI Express® Version : PCIe® 3.0
Native PCIe® Lanes (Total/Usable) : 20 , 16
Additional Usable PCIe Lanes from Motherboard : X470 2x Gen 3, 8x Gen 2
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 64 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR4-2933
2x2R DDR4-2667
4x1R DDR4-2133
4x2R DDR4-1866
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : Radeon™ RX Vega 11 Graphics
Graphics Core Count : 11
Total Graphics Shaders : 704
Graphics Frequency : 1400 MHz
GPU Max. Memory : 2 GB
WDDM Version : 2.7
DirectX® Version : 12
OpenGL® : 4.6
OpenCL™ : 2.2
DisplayPort™ Version : 1.4a
DisplayPort Extensions : HBR3 , HDR Metadata , Adaptive-Sync
DisplayPort Max Refresh Rates (SDR) : 3840x2160 @ 60Hz , 3440x1440 @ 144Hz , 2560x1440 @ 180Hz , 1920x1080 @ 240Hz
DisplayPort Max Refresh Rates (HDR) : 3840x2160 @ 60Hz , 3440x1440 @ 60Hz , 2560x1440 @ 60Hz , 1920x1080 @ 120Hz
HDMI® Version : 2.0
HDCP Version Supported : 2.2
USB Type-C® DisplayPort™ Alternate Mode : Yes
Multi-Monitor Support : Yes
Max Displays : 3
AMD FreeSync™ : Yes
AMD Eyefinity Single Large Surface (SLS) : No
Wireless Display : Miracast
Max Video Encode Bandwidth (SDR) : 1080p205 8bpc H.264, 1440p115 8bpc H.264, 2160p51 8bpc H.264, 1080p205 8bpc H.265, 1440p115 8bpc H.265, 2160p51 8bpc H.265
Max Video Decode Bandwidth : 1080p60 MPEG2, 1080p60 VC1, 1080p240 8bpc VP9, 1080p240 10bpc VP9, 1080p240 H.264, 1080p240 8bpc H.265, 1080p240 10bpc H.265, 1080p240 JPEG 8bpc

--- Product IDs ---
Product ID Boxed : YD3400C5FHBOX
Product ID Tray : YD3400C5M4MFH
Product ID MPK : YD3400C5FHMPK

--- Security, Virtualization, and Manageability ---
AMD Enhanced Virus Protection (NX bit) : Yes
