--- General Specifications ---
Name : AMD Ryzen™ 5 7600X
Family : Ryzen
Series : Ryzen 7000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Raphael AM5
Architecture : Zen 4
# of CPU Cores : 6
Multithreading (SMT) : Yes
# of Threads : 12
Max. Boost Clock : Up to 5.3 GHz
Base Clock : 4.7 GHz
L1 Cache : 384 KB
L2 Cache : 6 MB
L3 Cache : 32 MB
Default TDP : 105W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Premium air cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 09/27/2022
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)
Graphics Capabilities : Graphics Model

--- AMD Radeon™ Graphics ---
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100000593WOF
Product ID Tray : 100-000000593

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- General Specifications ---
Name : AMD Ryzen™ 5 3400G with Radeon™ RX Vega 11 Graphics
Family : Ryzen
Series : Ryzen 3000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Mainstream Desktop
AMD PRO Technologies : No
Regional Availability : Global , China , NA , EMEA , APJ , LATAM
Former Codename : Picasso
Architecture : Zen+
# of CPU Cores : 4
Multithreading (SMT) : Yes
# of Threads : 8
Max. Boost Clock : Up to 4.2 GHz
Base Clock : 3.7 GHz
L1 Cache : 384 KB
L2 Cache : 2 MB
L3 Cache : 4 MB
Default TDP : 65W
AMD Configurable TDP (cTDP) : 45-65W
Processor Technology for CPU Cores : 12nm FinFET
CPU Compute Die (CCD) Size : 210mm²
Package Die Count : 1
Total Transistor Count : 4.94 Billion
Unlocked for Overclocking : Yes
CPU Socket : AM4
Supporting Chipsets : X570 , X470 , X370 , B450 , B350 , A320
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : AMD Wraith Spire
Thermal Solution (MPK) : AMD Wraith Spire
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 07/07/2019
*OS Support : Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 0
Native USB 3.2 Gen 1 (5Gbps) : 4
Native USB 2.0 (480Mbps) : 0
Native SATA Ports : 0
PCI Express® Version : PCIe® 3.0
Native PCIe® Lanes (Total/Usable) : 20 , 16
Additional Usable PCIe Lanes from Motherboard : X470 2x Gen 3, 8x Gen 2
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 64 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR4-2933
2x2R DDR4-2667
4x1R DDR4-2133
4x2R DDR4-1866
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : Radeon™ RX Vega 11 Graphics
Graphics Core Count : 11
Total Graphics Shaders : 704
Graphics Frequency : 1400 MHz
GPU Max. Memory : 2 GB
WDDM Version : 2.7
DirectX® Version : 12
OpenGL® : 4.6
OpenCL™ : 2.2
DisplayPort™ Version : 1.4a
DisplayPort Extensions : HBR3 , HDR Metadata , Adaptive-Sync
DisplayPort Max Refresh Rates (SDR) : 3840x2160 @ 60Hz , 3440x1440 @ 144Hz , 2560x1440 @ 180Hz , 1920x1080 @ 240Hz
DisplayPort Max Refresh Rates (HDR) : 3840x2160 @ 60Hz , 3440x1440 @ 60Hz , 2560x1440 @ 60Hz , 1920x1080 @ 120Hz
HDMI® Version : 2.0
HDCP Version Supported : 2.2
USB Type-C® DisplayPort™ Alternate Mode : Yes
Multi-Monitor Support : Yes
Max Displays : 3
AMD FreeSync™ : Yes
AMD Eyefinity Single Large Surface (SLS) : No
Wireless Display : Miracast
Max Video Encode Bandwidth (SDR) : 1080p205 8bpc H.264, 1440p115 8bpc H.264, 2160p51 8bpc H.264, 1080p205 8bpc H.265, 1440p115 8bpc H.265, 2160p51 8bpc H.265
Max Video Decode Bandwidth : 1080p60 MPEG2, 1080p60 VC1, 1080p240 8bpc VP9, 1080p240 10bpc VP9, 1080p240 H.264, 1080p240 8bpc H.265, 1080p240 10bpc H.265, 1080p240 JPEG 8bpc

--- Product IDs ---
Product ID Boxed : YD3400C5FHBOX
Product ID Tray : YD3400C5M4MFH
Product ID MPK : YD3400C5FHMPK

--- Security, Virtualization, and Manageability ---
AMD Enhanced Virus Protection (NX bit) : Yes

--- Essentials ---

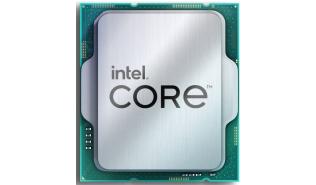

Product Collection : Intel® Core™ i5 processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i5-14400F
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 10
# of Performance-cores : 6
# of Efficient-cores : 4
Total Threads : 16
Max Turbo Frequency : 4.7 GHz
Performance-core Max Turbo Frequency : 4.7 GHz
Efficient-core Max Turbo Frequency : 3.5 GHz
Performance-core Base Frequency : 2.5 GHz
Efficient-core Base Frequency : 1.8 GHz
Cache : 20 MB Intel® Smart Cache
Total L2 Cache : 9.5 MB
Processor Base Power : 65 W
Maximum Turbo Power : 148 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'24
Embedded Options Available : No
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : Intel® Core™ i9 Processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i9-14900KF
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 24
# of Performance-cores : 8
# of Efficient-cores : 16
Total Threads : 32
Max Turbo Frequency : 6 GHz
Intel® Thermal Velocity Boost Frequency : 6 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency : 5.8 GHz
Performance-core Max Turbo Frequency : 5.6 GHz
Efficient-core Max Turbo Frequency : 4.4 GHz
Performance-core Base Frequency : 3.2 GHz
Efficient-core Base Frequency : 2.4 GHz
Cache : 36 MB Intel® Smart Cache
Total L2 Cache : 32 MB
Processor Base Power : 125 W
Maximum Turbo Power : 253 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q4'23
Embedded Options Available : No
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 89.6 GB/s

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020A
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Adaptive Boost Technology : Yes
Intel® Thermal Velocity Boost : Yes
Intel® Turbo Boost Max Technology 3.0 : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : Intel® Core™ i5 Processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i5-14600KF
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 14
# of Performance-cores : 6
# of Efficient-cores : 8
Total Threads : 20
Max Turbo Frequency : 5.3 GHz
Performance-core Max Turbo Frequency : 5.3 GHz
Efficient-core Max Turbo Frequency : 4 GHz
Performance-core Base Frequency : 3.5 GHz
Efficient-core Base Frequency : 2.6 GHz
Cache : 24 MB Intel® Smart Cache
Total L2 Cache : 20 MB
Processor Base Power : 125 W
Maximum Turbo Power : 181 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q4'23
Embedded Options Available : No
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 89.6 GB/s

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020A
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : Intel® Core™ i5 processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i5-14400F
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 10
# of Performance-cores : 6
# of Efficient-cores : 4
Total Threads : 16
Max Turbo Frequency : 4.7 GHz
Performance-core Max Turbo Frequency : 4.7 GHz
Efficient-core Max Turbo Frequency : 3.5 GHz
Performance-core Base Frequency : 2.5 GHz
Efficient-core Base Frequency : 1.8 GHz
Cache : 20 MB Intel® Smart Cache
Total L2 Cache : 9.5 MB
Processor Base Power : 65 W
Maximum Turbo Power : 148 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'24
Embedded Options Available : No
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : Intel® Core™ i5 processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i5-14400
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 10
# of Performance-cores : 6
# of Efficient-cores : 4
Total Threads : 16
Max Turbo Frequency : 4.7 GHz
Performance-core Max Turbo Frequency : 4.7 GHz
Efficient-core Max Turbo Frequency : 3.5 GHz
Performance-core Base Frequency : 2.5 GHz
Efficient-core Base Frequency : 1.8 GHz
Cache : 20 MB Intel® Smart Cache
Total L2 Cache : 9.5 MB
Processor Base Power : 65 W
Maximum Turbo Power : 148 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'24
Embedded Options Available : Yes
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

--- GPU Specifications ---
GPU Name : Intel® UHD Graphics 730
Graphics Max Dynamic Frequency : 1.55 GHz
Graphics Output : eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units : 24
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 1
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID : 0x4682/0xA782

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : Intel® Core™ i9 Processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i9-14900
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 24
# of Performance-cores : 8
# of Efficient-cores : 16
Total Threads : 32
Max Turbo Frequency : 5.8 GHz
Intel® Thermal Velocity Boost Frequency : 5.8 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency : 5.6 GHz
Performance-core Max Turbo Frequency : 5.4 GHz
Efficient-core Max Turbo Frequency : 4.3 GHz
Performance-core Base Frequency : 2 GHz
Efficient-core Base Frequency : 1.5 GHz
Cache : 36 MB Intel® Smart Cache
Total L2 Cache : 32 MB
Processor Base Power : 65 W
Maximum Turbo Power : 219 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'24
Embedded Options Available : Yes
Use Conditions : PC/Client/Tablet | Workstation

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 89.6 GB/s
ECC Memory Supported : Yes

--- GPU Specifications ---
GPU Name : Intel® UHD Graphics 770
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.65 GHz
Graphics Output : eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units : 32
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 2
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID : 0xA780

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Adaptive Boost Technology : Yes
Intel® Thermal Velocity Boost : Yes
Intel® Turbo Boost Max Technology 3.0 : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel vPro® Eligibility : Intel vPro® Enterprise | Intel vPro® Essentials | Intel vPro® Platform
Intel® Hardware Shield Eligibility : Yes
Intel® Threat Detection Technology (TDT) : Yes
Intel® Active Management Technology (AMT) : Yes
Intel® Standard Manageability (ISM) : Yes
Intel® Remote Platform Erase (RPE) : Yes
Intel® One-Click Recovery : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® Total Memory Encryption - Multi Key : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Intel® Trusted Execution Technology : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Stable IT Platform Program (SIPP) : Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : 12th Generation Intel® Core™ i5 Processors
Code Name : Products formerly Alder Lake
Vertical Segment : Desktop
Processor Number : i5-12400
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 6
# of Performance-cores : 6
# of Efficient-cores : 0
Total Threads : 12
Max Turbo Frequency : 4.40 GHz
Performance-core Max Turbo Frequency : 4.40 GHz
Performance-core Base Frequency : 2.50 GHz
Cache : 18 MB Intel® Smart Cache
Total L2 Cache : 7.5 MB
Processor Base Power : 65 W
Maximum Turbo Power : 117 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'22
Embedded Options Available : Yes
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 128 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

--- GPU Specifications ---
GPU Name : Intel® UHD Graphics 730
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.45 GHz
Graphics Output : eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units : 24
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 1
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID : 0x4692 / 0x4682

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : No
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Optane™ Memory Supported : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Max Technology 3.0 : No
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Threat Detection Technology (TDT) : Yes
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- General Specifications ---
Name : AMD Ryzen™ 7 5700X
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
Regional Availability : Global , China , NA , EMEA , APJ , LATAM
Former Codename : Vermeer
Architecture : Zen 3
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 4.6 GHz
Base Clock : 3.4 GHz
L1 Cache : 512 KB
L2 Cache : 4 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
Processor Technology for I/O Die : 12nm (Globalfoundries)
CPU Compute Die (CCD) Size : 74mm²
I/O Die (IOD) Size : 125mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
CPU Socket : AM4
Supporting Chipsets : X570 , X470 , X370 , B550 , B450 , B350 , A520
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Max. Operating Temperature (Tjmax) : 90°C
Launch Date : 04/04/2022
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 0
Native SATA Ports : 2
PCI Express® Version : PCIe® 4.0
Native PCIe® Lanes (Total/Usable) : 24 , 20
Additional Usable PCIe Lanes from Motherboard :
X570 16x Gen 4
X470 2x Gen 3, 8x Gen 2
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
System Memory Specification : Up to 3200 MT/s
Max Memory Speed :
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- oduct IDs ---
Product ID Boxed : 100-100000926WOF
Product ID Tray : 100-000000926

--- Key Features ---
Supported Technologies : AMD StoreMI Technology , AMD Ryzen™ VR-Ready Premium

--- General Specifications ---
Name : AMD Ryzen™ 7 7700X
Family : Ryzen
Series : Ryzen 7000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Raphael AM5
Architecture : Zen 4
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5.4 GHz
Base Clock : 4.5 GHz
L1 Cache : 512 KB
L2 Cache : 8 MB
L3 Cache : 32 MB
Default TDP : 105W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Premium air cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 09/27/2022
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

--- Product IDs ---
Product ID Boxed : 100-100000591WOF
Product ID Tray : 100-000000591

--- Key Features ---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- Essentials ---
Product Collection : Intel® Core™ i5 processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i5-14400
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 10
# of Performance-cores : 6
# of Efficient-cores : 4
Total Threads : 16
Max Turbo Frequency : 4.7 GHz
Performance-core Max Turbo Frequency : 4.7 GHz
Efficient-core Max Turbo Frequency : 3.5 GHz
Performance-core Base Frequency : 2.5 GHz
Efficient-core Base Frequency : 1.8 GHz
Cache : 20 MB Intel® Smart Cache
Total L2 Cache : 9.5 MB
Processor Base Power : 65 W
Maximum Turbo Power : 148 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'24
Embedded Options Available : Yes
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

--- GPU Specifications ---
GPU Name : Intel® UHD Graphics 730
Graphics Max Dynamic Frequency : 1.55 GHz
Graphics Output : eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units : 24
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 1
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID : 0x4682/0xA782

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : Intel® Core™ i9 processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i9-14900KS
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 24
# of Performance-cores : 8
# of Efficient-cores : 16
Total Threads : 32
Max Turbo Frequency : 6.2 GHz
Intel® Thermal Velocity Boost Frequency : 6.2 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency : 5.9 GHz
Performance-core Max Turbo Frequency : 5.7 GHz
Efficient-core Max Turbo Frequency : 4.5 GHz
Performance-core Base Frequency : 3.2 GHz
Efficient-core Base Frequency : 2.4 GHz
Cache : 36 MB Intel® Smart Cache
Total L2 Cache : 32 MB
Processor Base Power : 150 W
Maximum Turbo Power : 253 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'24
Embedded Options Available : No
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 89.6 GB/s
ECC Memory Supported : Yes

--- GPU Specifications ---
GPU Name : Intel® UHD Graphics 770
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.65 GHz
Graphics Output : eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units : 32
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 2
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID : 0xA780

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Adaptive Boost Technology : Yes
Intel® Thermal Velocity Boost : Yes
Intel® Turbo Boost Max Technology 3.0 : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel vPro® Eligibility : Intel vPro® Enterprise | Intel vPro® Essentials | Intel vPro® Platform
Intel® Hardware Shield Eligibility : Yes
Intel® Threat Detection Technology (TDT) : Yes
Intel® Active Management Technology (AMT) : Yes
Intel® Standard Manageability (ISM) : Yes
Intel® Remote Platform Erase (RPE) : Yes
Intel® One-Click Recovery : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® Total Memory Encryption - Multi Key : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Intel® Trusted Execution Technology : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : Intel® Core™ i7 Processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i7-14700
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 20
# of Performance-cores : 8
# of Efficient-cores : 12
Total Threads : 28
Max Turbo Frequency : 5.4 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency : 5.4 GHz
Performance-core Max Turbo Frequency : 5.3 GHz
Efficient-core Max Turbo Frequency : 4.2 GHz
Performance-core Base Frequency : 2.1 GHz
Efficient-core Base Frequency : 1.5 GHz
Cache : 33 MB Intel® Smart Cache
Total L2 Cache : 28 MB
Processor Base Power : 65 W
Maximum Turbo Power : 219 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'24
Embedded Options Available : Yes
Use Conditions : PC/Client/Tablet | Workstation

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 89.6 GB/s
ECC Memory Supported : Yes

--- GPU Specifications ---
GPU Name : Intel® UHD Graphics 770
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.6 GHz
Graphics Output : eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units : 32
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 2
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID : 0xA780

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Max Technology 3.0 : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel vPro® Eligibility : Intel vPro® Enterprise | Intel vPro® Essentials | Intel vPro® Platform
Intel® Hardware Shield Eligibility : Yes
Intel® Threat Detection Technology (TDT) : Yes
Intel® Active Management Technology (AMT) : Yes
Intel® Standard Manageability (ISM) : Yes
Intel® Remote Platform Erase (RPE) : Yes
Intel® One-Click Recovery : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® Total Memory Encryption - Multi Key : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Intel® Trusted Execution Technology : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Stable IT Platform Program (SIPP) : Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : Intel® Core™ Ultra Processors (Series 2)
Code Name : Products formerly Arrow Lake
Vertical Segment : Desktop
Processor Number : 225
Overall Peak TOPS (Int8) : 23

--- CPU Specifications ---
Total Cores : 10
# of Performance-cores : 6
# of Efficient-cores : 4
Total Threads : 10
Max Turbo Frequency : 4.9 GHz
Performance-core Max Turbo Frequency : 4.9 GHz
Efficient-core Max Turbo Frequency : 4.4 GHz
Performance-core Base Frequency : 3.3 GHz
Efficient-core Base Frequency : 2.7 GHz
Cache : 20 MB Intel® Smart Cache
Total L2 Cache : 22 MB
Processor Base Power : 65 W
Maximum Turbo Power : 121 W
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
AI Software Frameworks Supported by CPU : OpenVINO™ | WindowsML | DirectML | ONNX RT | WebNN
CPU Lithography : TSMC N3B

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'25
Embedded Options Available : Yes
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 256 GB
Memory Types : Up to DDR5 6400 MT/s
Max # of Memory Channels : 2

--- GPU Specifications ---
GPU Name : Intel® Graphics
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.8 GHz
GPU Peak TOPS (Int8) : 4
Graphics Output : DP2.1 UHBR20 | HDM2.1 FRL 12GHz | eDP1.4b
Xe-cores : 2
Max Resolution (HDMI) : 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
Max Resolution (DP) : 8K @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 4K @ 60Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3
Intel® Quick Sync Video : Yes
# of Displays Supported : 4
Device ID : 0x7D67
Intel® Deep Learning Boost (Intel® DL Boost) on GPU : Yes

--- NPU Specifications ---
NPU Name : Intel® AI Boost
NPU Peak TOPS (Int8) : 13
Sparsity Support : Yes
Windows Studio Effects Support : Yes
AI Software Frameworks Supported by NPU : OpenVINO™ | WindowsML | DirectML | ONNX RT | WebNN

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4
Max # of DMI Lanes : 8
Intel® Thunderbolt™ 4 : Yes
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+2x4 | 2x8+2x4 | 1x8+4x4
Max # of PCI Express Lanes : 24

--- Package Specifications ---
Sockets Supported : FCLGA1851
Thermal Solution Specification : PCG 2022C
Max Operating Temperature : 105 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.5
Intel® Thread Director : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Technology : 2.0
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® Trusted Execution Technology : Yes
Execute Disable Bit : Yes
Intel® OS Guard : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes
