--- Essentials ---
Product Collection : 12th Generation Intel® Core™ i3 Processors
Code Name : Products formerly Alder Lake
Vertical Segment : Desktop
Processor Number : i3-12100F
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 4
# of Performance-cores : 4
# of Efficient-cores : 0
Total Threads : 8
Max Turbo Frequency : 4.30 GHz
Performance-core Max Turbo Frequency : 4.30 GHz
Performance-core Base Frequency : 3.30 GHz
Cache : 12 MB Intel® Smart Cache
Total L2 Cache : 5 MB
Processor Base Power : 58 W
Maximum Turbo Power : 89 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'22
Embedded Options Available : No
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 128 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : No
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Optane™ Memory Supported : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Max Technology 3.0 : No
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- General Specifications ---

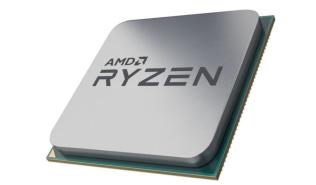

Name : AMD Ryzen™ 7 5700X3D
Family : Ryzen
Series : Ryzen 5000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
Regional Availability : Global , China , NA , EMEA , APJ , LATAM
Former Codename : Vermeer
Architecture : Zen 3
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 4.1 GHz
Base Clock : 3 GHz
L1 Cache : 512 KB
L2 Cache : 4 MB
L3 Cache : 96 MB
Default TDP : 105W
Processor Technology for CPU Cores : TSMC 7nm FinFET
Processor Technology for I/O Die : 12nm (Globalfoundries)
CPU Compute Die (CCD) Size : 74mm²
I/O Die (IOD) Size : 125mm²
Package Die Count : 2
CPU Socket : AM4
Supporting Chipsets : X570 , X470 , B550 , B450 , A520
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Max. Operating Temperature (Tjmax) : 90°C
Launch Date : 01/08/2024
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity ---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 0
Native SATA Ports : 2
PCI Express® Version : PCIe® 4.0
Native PCIe® Lanes (Total/Usable) : 24 , 20
Additional Usable PCIe Lanes from Motherboard :
X570 16x Gen 4
X470 2x Gen 3, 8x Gen 2
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
ECC Support : Yes (Requires mobo support)

--- Graphics Capabilities ---
Graphics Model : Discrete Graphics Card Required

--- Product IDs ---
Product ID Boxed : 100-100001503WOF , 100-100001503
Product ID Tray : 100-000001503

--- Key Features ---
Supported Technologies : AMD StoreMI Technology , AMD Zen 3 Core Architecture , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium

--- Essentials ---
Product Collection : Intel® Core™ i9 Processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i9-14900K
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 24
# of Performance-cores : 8
# of Efficient-cores : 16
Total Threads : 32
Max Turbo Frequency : 6 GHz
Intel® Thermal Velocity Boost Frequency : 6 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency : 5.8 GHz
Performance-core Max Turbo Frequency : 5.6 GHz
Efficient-core Max Turbo Frequency : 4.4 GHz
Performance-core Base Frequency : 3.2 GHz
Efficient-core Base Frequency : 2.4 GHz
Cache : 36 MB Intel® Smart Cache
Total L2 Cache : 32 MB
Processor Base Power : 125 W
Maximum Turbo Power : 253 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q4'23
Embedded Options Available : No
Use Conditions : PC/Client/Tablet | Workstation

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 89.6 GB/s
ECC Memory Supported : Yes

--- GPU Specifications ---
GPU Name : Intel® UHD Graphics 770
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.65 GHz
Graphics Output : eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units : 32
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 2
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID : 0xA780

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020A
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- dvanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Adaptive Boost Technology : Yes
Intel® Thermal Velocity Boost : Yes
Intel® Turbo Boost Max Technology 3.0 : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel vPro® Eligibility : Intel vPro® Enterprise | Intel vPro® Essentials | Intel vPro® Platform
Intel® Hardware Shield Eligibility : Yes
Intel® Threat Detection Technology (TDT) : Yes
Intel® Active Management Technology (AMT) : Yes
Intel® Standard Manageability (ISM) : Yes
Intel® Remote Platform Erase (RPE) : Yes
Intel® One-Click Recovery : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® Total Memory Encryption - Multi Key : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Intel® Trusted Execution Technology : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Stable IT Platform Program (SIPP) : Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- General Specifications ---
Name : AMD Ryzen™ 5 7500F
Family : Ryzen
Series : Ryzen 7000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Raphael AM5
Architecture : Zen 4
# of CPU Cores : 6
Multithreading (SMT) : Yes
# of Threads : 12
Max. Boost Clock : Up to 5 GHz
Base Clock : 3.7 GHz
L1 Cache : 384 KB
L2 Cache : 6 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : AMD Wraith Stealth
Thermal Solution (MPK) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 95°C
Launch Date : 07/22/2023
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

--- Connectivity---
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard :
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
A620 4x Gen3
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed :
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support : Yes (Requires mobo support)

--- raphics Capabilities---
Graphics Model : Discrete Graphics Card Required

--- roduct IDs---
Product ID Tray : 100-000000597
Product ID MPK : 100-100000597MPK

--- Key Features---
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies

--- Essentials ---
Product Collection : Intel® Core™ i3 Processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i3-14100
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 4
# of Performance-cores : 4
# of Efficient-cores : 0
Total Threads : 8
Max Turbo Frequency : 4.7 GHz
Performance-core Max Turbo Frequency : 4.7 GHz
Performance-core Base Frequency : 3.5 GHz
Cache : 12 MB Intel® Smart Cache
Total L2 Cache : 5 MB
Processor Base Power : 60 W
Maximum Turbo Power : 110 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'24
Embedded Options Available : Yes
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

--- GPU Specifications ---
GPU Name : Intel® UHD Graphics 730
Graphics Max Dynamic Frequency : 1.5 GHz
Graphics Output : eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units : 24
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 1
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID : 0x4692

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : 12th Generation Intel® Core™ i3 Processors
Code Name : Products formerly Alder Lake
Vertical Segment : Desktop
Processor Number : i3-12100
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 4
# of Performance-cores : 4
# of Efficient-cores : 0
Total Threads : 8
Max Turbo Frequency : 4.30 GHz
Performance-core Max Turbo Frequency : 4.30 GHz
Performance-core Base Frequency : 3.30 GHz
Cache : 12 MB Intel® Smart Cache
Total L2 Cache : 5 MB
Processor Base Power : 60 W
Maximum Turbo Power : 89 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'22
Embedded Options Available : Yes
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 128 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

--- GPU Specifications ---
GPU Name : Intel® UHD Graphics 730
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.40 GHz
Graphics Output : eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units : 24
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 1
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID : 0x4692

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : No
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Optane™ Memory Supported : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Max Technology 3.0 : No
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Threat Detection Technology (TDT) : Yes
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes
