INTEL Core i5 (Socket 1700, 64bit)

--- Essentials ---
Product Collection : Intel® Core™ i5 processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i5-14400F
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 10
# of Performance-cores : 6
# of Efficient-cores : 4
Total Threads : 16
Max Turbo Frequency : 4.7 GHz
Performance-core Max Turbo Frequency : 4.7 GHz
Efficient-core Max Turbo Frequency : 3.5 GHz
Performance-core Base Frequency : 2.5 GHz
Efficient-core Base Frequency : 1.8 GHz
Cache : 20 MB Intel® Smart Cache
Total L2 Cache : 9.5 MB
Processor Base Power : 65 W
Maximum Turbo Power : 148 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'24
Embedded Options Available : No
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : Intel® Core™ i5 Processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i5-14600K
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 14
# of Performance-cores : 6
# of Efficient-cores : 8
Total Threads : 20
Max Turbo Frequency : 5.3 GHz
Performance-core Max Turbo Frequency : 5.3 GHz
Efficient-core Max Turbo Frequency : 4 GHz
Performance-core Base Frequency : 3.5 GHz
Efficient-core Base Frequency : 2.6 GHz
Cache : 24 MB Intel® Smart Cache
Total L2 Cache : 20 MB
Processor Base Power : 125 W
Maximum Turbo Power : 181 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q4'23
Embedded Options Available : No
Use Conditions : PC/Client/Tablet | Workstation

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 89.6 GB/s
ECC Memory Supported : Yes

--- GPU Specifications ---
GPU Name : Intel® UHD Graphics 770
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.55 GHz
Graphics Output : eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units : 32
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 2
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID : 0xA780

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020A
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel vPro® Eligibility : Intel vPro® Enterprise | Intel vPro® Essentials | Intel vPro® Platform
Intel® Hardware Shield Eligibility : Yes
Intel® Threat Detection Technology (TDT) : Yes
Intel® Active Management Technology (AMT) : Yes
Intel® Standard Manageability (ISM) : Yes
Intel® Remote Platform Erase (RPE) : Yes
Intel® One-Click Recovery : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® Total Memory Encryption - Multi Key : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Intel® Trusted Execution Technology : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Stable IT Platform Program (SIPP) : Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : Intel® Core™ i5 processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i5-14400
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 10
# of Performance-cores : 6
# of Efficient-cores : 4
Total Threads : 16
Max Turbo Frequency : 4.7 GHz
Performance-core Max Turbo Frequency : 4.7 GHz
Efficient-core Max Turbo Frequency : 3.5 GHz
Performance-core Base Frequency : 2.5 GHz
Efficient-core Base Frequency : 1.8 GHz
Cache : 20 MB Intel® Smart Cache
Total L2 Cache : 9.5 MB
Processor Base Power : 65 W
Maximum Turbo Power : 148 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'24
Embedded Options Available : Yes
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

--- GPU Specifications ---
GPU Name : Intel® UHD Graphics 730
Graphics Max Dynamic Frequency : 1.55 GHz
Graphics Output : eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units : 24
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 1
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID : 0x4682/0xA782

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : 12th Generation Intel® Core™ i5 Processors
Code Name : Products formerly Alder Lake
Vertical Segment : Desktop
Processor Number : i5-12400F
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 6
# of Performance-cores : 6
# of Efficient-cores : 0
Total Threads : 12
Max Turbo Frequency : 4.40 GHz
Performance-core Max Turbo Frequency : 4.40 GHz
Performance-core Base Frequency : 2.50 GHz
Cache : 18 MB Intel® Smart Cache
Total L2 Cache : 7.5 MB
Processor Base Power : 65 W
Maximum Turbo Power : 117 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'22
Embedded Options Available : No
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 128 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : No
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Optane™ Memory Supported : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Max Technology 3.0 : No
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : Intel® Core™ i5 processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i5-14400F
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 10
# of Performance-cores : 6
# of Efficient-cores : 4
Total Threads : 16
Max Turbo Frequency : 4.7 GHz
Performance-core Max Turbo Frequency : 4.7 GHz
Efficient-core Max Turbo Frequency : 3.5 GHz
Performance-core Base Frequency : 2.5 GHz
Efficient-core Base Frequency : 1.8 GHz
Cache : 20 MB Intel® Smart Cache
Total L2 Cache : 9.5 MB
Processor Base Power : 65 W
Maximum Turbo Power : 148 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'24
Embedded Options Available : No
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : Intel® Core™ i5 Processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i5-14600KF
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 14
# of Performance-cores : 6
# of Efficient-cores : 8
Total Threads : 20
Max Turbo Frequency : 5.3 GHz
Performance-core Max Turbo Frequency : 5.3 GHz
Efficient-core Max Turbo Frequency : 4 GHz
Performance-core Base Frequency : 3.5 GHz
Efficient-core Base Frequency : 2.6 GHz
Cache : 24 MB Intel® Smart Cache
Total L2 Cache : 20 MB
Processor Base Power : 125 W
Maximum Turbo Power : 181 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q4'23
Embedded Options Available : No
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 89.6 GB/s

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020A
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : 12th Generation Intel® Core™ i5 Processors
Code Name : Products formerly Alder Lake
Vertical Segment : Desktop
Processor Number : i5-12400
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 6
# of Performance-cores : 6
# of Efficient-cores : 0
Total Threads : 12
Max Turbo Frequency : 4.40 GHz
Performance-core Max Turbo Frequency : 4.40 GHz
Performance-core Base Frequency : 2.50 GHz
Cache : 18 MB Intel® Smart Cache
Total L2 Cache : 7.5 MB
Processor Base Power : 65 W
Maximum Turbo Power : 117 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'22
Embedded Options Available : Yes
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 128 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

--- GPU Specifications ---
GPU Name : Intel® UHD Graphics 730
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.45 GHz
Graphics Output : eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units : 24
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 1
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID : 0x4692 / 0x4682

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : No
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Optane™ Memory Supported : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Max Technology 3.0 : No
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Threat Detection Technology (TDT) : Yes
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---

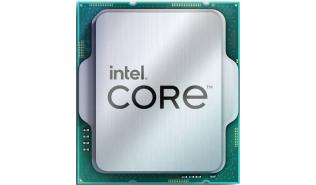

Product Collection : 13th Generation Intel® Core™ i5 Processors
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i5-13400
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 10
# of Performance-cores : 6
# of Efficient-cores : 4
Total Threads : 16
Max Turbo Frequency : 4.60 GHz
Performance-core Max Turbo Frequency : 4.60 GHz
Efficient-core Max Turbo Frequency : 3.30 GHz
Performance-core Base Frequency : 2.50 GHz
Efficient-core Base Frequency : 1.80 GHz
Cache : 20 MB Intel® Smart Cache
Total L2 Cache : 9.5 MB
Processor Base Power : 65 W
Maximum Turbo Power : 148 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'23
Embedded Options Available : Yes
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

--- GPU Specifications ---
GPU Name : Intel® UHD Graphics 730
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.55 GHz
Graphics Output : eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units : 24
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 1
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID : 0x4682/0xA782

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Max Technology 3.0 : No
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : 12th Generation Intel® Core™ i5 Processors
Code Name : Products formerly Alder Lake
Vertical Segment : Desktop
Processor Number : i5-12600KF
Lithography : Intel 7
Recommended Customer Price : $290.00-$300.00

--- CPU Specifications ---
Total Cores : 10
# of Performance-cores : 6
# of Efficient-cores : 4
Total Threads : 16
Max Turbo Frequency : 4.90 GHz
Performance-core Max Turbo Frequency : 4.90 GHz
Efficient-core Max Turbo Frequency : 3.60 GHz
Performance-core Base Frequency : 3.70 GHz
Efficient-core Base Frequency : 2.80 GHz
Cache : 20 MB Intel® Smart Cache
Total L2 Cache : 9.5 MB
Processor Base Power : 125 W
Maximum Turbo Power : 150 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q4'21
Embedded Options Available : No
Use Conditions : PC/Client/Tablet
Datasheet : View now

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 128 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020A
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Optane™ Memory Supported : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Max Technology 3.0 : No
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : Intel® Core™ i5 Processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i5-14600K
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 14
# of Performance-cores : 6
# of Efficient-cores : 8
Total Threads : 20
Max Turbo Frequency : 5.3 GHz
Performance-core Max Turbo Frequency : 5.3 GHz
Efficient-core Max Turbo Frequency : 4 GHz
Performance-core Base Frequency : 3.5 GHz
Efficient-core Base Frequency : 2.6 GHz
Cache : 24 MB Intel® Smart Cache
Total L2 Cache : 20 MB
Processor Base Power : 125 W
Maximum Turbo Power : 181 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q4'23
Embedded Options Available : No
Use Conditions : PC/Client/Tablet | Workstation

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 89.6 GB/s
ECC Memory Supported : Yes

--- GPU Specifications ---
GPU Name : Intel® UHD Graphics 770
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.55 GHz
Graphics Output : eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units : 32
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 2
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID : 0xA780

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020A
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel vPro® Eligibility : Intel vPro® Enterprise | Intel vPro® Essentials | Intel vPro® Platform
Intel® Hardware Shield Eligibility : Yes
Intel® Threat Detection Technology (TDT) : Yes
Intel® Active Management Technology (AMT) : Yes
Intel® Standard Manageability (ISM) : Yes
Intel® Remote Platform Erase (RPE) : Yes
Intel® One-Click Recovery : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® Total Memory Encryption - Multi Key : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Intel® Trusted Execution Technology : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Stable IT Platform Program (SIPP) : Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : Intel® Core™ i5 Processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i5-14600KF
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 14
# of Performance-cores : 6
# of Efficient-cores : 8
Total Threads : 20
Max Turbo Frequency : 5.3 GHz
Performance-core Max Turbo Frequency : 5.3 GHz
Efficient-core Max Turbo Frequency : 4 GHz
Performance-core Base Frequency : 3.5 GHz
Efficient-core Base Frequency : 2.6 GHz
Cache : 24 MB Intel® Smart Cache
Total L2 Cache : 20 MB
Processor Base Power : 125 W
Maximum Turbo Power : 181 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q4'23
Embedded Options Available : No
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 89.6 GB/s

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020A
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : 12th Generation Intel® Core™ i5 Processors
Code Name : Products formerly Alder Lake
Vertical Segment : Desktop
Processor Number : i5-12400F
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 6
# of Performance-cores : 6
# of Efficient-cores : 0
Total Threads : 12
Max Turbo Frequency : 4.40 GHz
Performance-core Max Turbo Frequency : 4.40 GHz
Performance-core Base Frequency : 2.50 GHz
Cache : 18 MB Intel® Smart Cache
Total L2 Cache : 7.5 MB
Processor Base Power : 65 W
Maximum Turbo Power : 117 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'22
Embedded Options Available : No
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 128 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : No
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Optane™ Memory Supported : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Max Technology 3.0 : No
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : 12th Generation Intel® Core™ i5 Processors
Code Name : Products formerly Alder Lake
Vertical Segment : Desktop
Processor Number : i5-12400F
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 6
# of Performance-cores : 6
# of Efficient-cores : 0
Total Threads : 12
Max Turbo Frequency : 4.40 GHz
Performance-core Max Turbo Frequency : 4.40 GHz
Performance-core Base Frequency : 2.50 GHz
Cache : 18 MB Intel® Smart Cache
Total L2 Cache : 7.5 MB
Processor Base Power : 65 W
Maximum Turbo Power : 117 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'22
Embedded Options Available : No
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 128 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : No
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Optane™ Memory Supported : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Max Technology 3.0 : No
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : Intel® Core™ i5 processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i5-14400F
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 10
# of Performance-cores : 6
# of Efficient-cores : 4
Total Threads : 16
Max Turbo Frequency : 4.7 GHz
Performance-core Max Turbo Frequency : 4.7 GHz
Efficient-core Max Turbo Frequency : 3.5 GHz
Performance-core Base Frequency : 2.5 GHz
Efficient-core Base Frequency : 1.8 GHz
Cache : 20 MB Intel® Smart Cache
Total L2 Cache : 9.5 MB
Processor Base Power : 65 W
Maximum Turbo Power : 148 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'24
Embedded Options Available : No
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : 13th Generation Intel® Core™ i5 Processors
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i5-13500
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 14
# of Performance-cores : 6
# of Efficient-cores : 8
Total Threads : 20
Max Turbo Frequency : 4.80 GHz
Performance-core Max Turbo Frequency : 4.80 GHz
Efficient-core Max Turbo Frequency : 3.50 GHz
Performance-core Base Frequency : 2.50 GHz
Efficient-core Base Frequency : 1.80 GHz
Cache : 24 MB Intel® Smart Cache
Total L2 Cache : 11.5 MB
Processor Base Power : 65 W
Maximum Turbo Power : 154 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'23
Embedded Options Available : Yes
Use Conditions : PC/Client/Tablet | Workstation

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s
ECC Memory Supported : Yes

--- PU Specifications ---
GPU Name : Intel® UHD Graphics 770
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.55 GHz
Graphics Output : eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units : 32
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 2
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID : 0x4680

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Max Technology 3.0 : No
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel vPro® Eligibility : Intel vPro® Enterprise | Intel vPro® Essentials | Intel vPro® Platform
Intel® Hardware Shield Eligibility : Yes
Intel® Threat Detection Technology (TDT) : Yes
Intel® Active Management Technology (AMT) : Yes
Intel® Standard Manageability (ISM) : Yes
Intel® Remote Platform Erase (RPE) : Yes
Intel® One-Click Recovery : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® Total Memory Encryption - Multi Key : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Intel® Trusted Execution Technology : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Stable IT Platform Program (SIPP) : Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : 12th Generation Intel® Core™ i5 Processors
Code Name : Products formerly Alder Lake
Vertical Segment : Desktop
Processor Number : i5-12600
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 6
# of Performance-cores : 6
# of Efficient-cores : 0
Total Threads : 12
Max Turbo Frequency : 4.80 GHz
Performance-core Max Turbo Frequency : 4.80 GHz
Performance-core Base Frequency : 3.30 GHz
Cache : 18 MB Intel® Smart Cache
Total L2 Cache : 7.5 MB
Processor Base Power : 65 W
Maximum Turbo Power : 117 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'22
Embedded Options Available : No
Use Conditions : PC/Client/Tablet | Workstation

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 128 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s
ECC Memory Supported : Yes

--- GPU Specifications ---
GPU Name : Intel® UHD Graphics 770
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.45 GHz
Graphics Output : eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units : 32
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 2
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID : 0x4690

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : No
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Optane™ Memory Supported : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Max Technology 3.0 : No
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel vPro® Eligibility : Intel vPro® Enterprise | Intel vPro® Essentials
Intel® Hardware Shield Eligibility : Yes
Intel® Threat Detection Technology (TDT) : Yes
Intel® Active Management Technology (AMT) : Yes
Intel® Standard Manageability (ISM) : Yes
Intel® One-Click Recovery : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® Total Memory Encryption - Multi Key : Yes
Intel® Total Memory Encryption : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Intel® Trusted Execution Technology : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Stable IT Platform Program (SIPP) : Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes

--- Essentials ---
Product Collection : Intel® Core™ i5 processors (14th gen)
Code Name : Products formerly Raptor Lake
Vertical Segment : Desktop
Processor Number : i5-14400
Lithography : Intel 7

--- CPU Specifications ---
Total Cores : 10
# of Performance-cores : 6
# of Efficient-cores : 4
Total Threads : 16
Max Turbo Frequency : 4.7 GHz
Performance-core Max Turbo Frequency : 4.7 GHz
Efficient-core Max Turbo Frequency : 3.5 GHz
Performance-core Base Frequency : 2.5 GHz
Efficient-core Base Frequency : 1.8 GHz
Cache : 20 MB Intel® Smart Cache
Total L2 Cache : 9.5 MB
Processor Base Power : 65 W
Maximum Turbo Power : 148 W

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'24
Embedded Options Available : Yes
Use Conditions : PC/Client/Tablet

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

--- GPU Specifications ---
GPU Name : Intel® UHD Graphics 730
Graphics Max Dynamic Frequency : 1.55 GHz
Graphics Output : eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units : 24
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 1
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID : 0x4682/0xA782

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4 | 2x8+4
Max # of PCI Express Lanes : 20

--- Package Specifications ---
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020C
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Max Operating Temperature : 100 °C

--- Advanced Technologies ---
Intel® Volume Management Device (VMD) : Yes
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes

--- Security & Reliability ---
Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes
