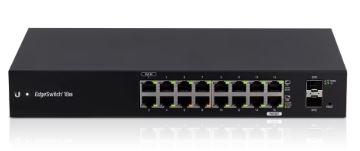

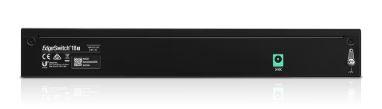

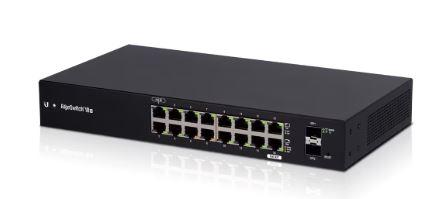

UBIQUITI EdgeSwitch 18X 18p Managed Gigabit [ES-18X-EU]
Kod produktu: swiUbiES18X
Kod liczbowy: 123625
Opis
UBIQUITI ES-18X-EU
Idealny do zastosowań WISP na większą skalę, EdgeSwitch® 18X to niedrogi, wydajny przełącznik z portami SFP i konstrukcją bez wentylatora. Szesnaście gigabitowych portów RJ45 zapewnia łączność miedzianą z wejściem PoE na porcie 1 i passthrough PoE na porcie 16. Dwa porty SFP zapewniają łączność światłowodową. Przeglądarkaoparty na interfejsie konfiguracyjnym zapewnia intuicyjne sterowanie. Zarządzanie jest również dostępne przez UISP.
Specyfikacja
---Mechanical---
Dimensions 299.8 x 160 x 43.7 mm (11.8 x 6.3 x 1.7")
Weight Without mount: 1.2 kg (2.5 lb)
With mount: 1.4 kg (3.2 lb)
Enclosure material Metal
Hardware
Processor MIPS 4Kc, 500 MHz
System memory 128 MB DDR3
On-board flash storage SPI 16 MB
Networking interface (16) 10/100/1000 Mbps Ethernet RJ45 ports
(2) 1 Gbps SFP ports
Management interface Ethernet In-Band
PoE interface (1) 24V passive PoE port (Pins 4, 5+; 7, 8-)
Total non-blocking throughput 18 Gbps
Switching capacity 36 Gbps
Forwarding rate 26.78 Mpps
Power method 24V DC, 1A power adapter (Included)
24V Passive PoE
Power supply AC/DC adapter
24V passive PoE
Supported voltage range 9–30V DC
Max. power consumption 14W (Excludes PoE output)
Passive PoE Max. wattage per port 15W
Passive PoE voltage range 24V
ESD/EMP protection Air: ± 16 kV, contact: ± 8 kV
Ambient operating temperature -10 to 50° C (14 to 122° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
NDAA Compliant Yes
LEDs
System (1) White/blue
Ethernet 1G: green
10/100 Mbps: amber
SFP 1G: green
Software
Mode Layer 2 Ethernet switch
VLAN 4K VLANs
QoS (16) Priority queues per user port and traffic classification
Jumbo frame 10 KB
PoE Enable/disable passive PoE
Other TFTP recovery
Dimensions 299.8 x 160 x 43.7 mm (11.8 x 6.3 x 1.7")
Weight Without mount: 1.2 kg (2.5 lb)
With mount: 1.4 kg (3.2 lb)
Enclosure material Metal
Hardware
Processor MIPS 4Kc, 500 MHz
System memory 128 MB DDR3
On-board flash storage SPI 16 MB
Networking interface (16) 10/100/1000 Mbps Ethernet RJ45 ports
(2) 1 Gbps SFP ports
Management interface Ethernet In-Band
PoE interface (1) 24V passive PoE port (Pins 4, 5+; 7, 8-)
Total non-blocking throughput 18 Gbps
Switching capacity 36 Gbps
Forwarding rate 26.78 Mpps
Power method 24V DC, 1A power adapter (Included)
24V Passive PoE
Power supply AC/DC adapter
24V passive PoE
Supported voltage range 9–30V DC
Max. power consumption 14W (Excludes PoE output)
Passive PoE Max. wattage per port 15W
Passive PoE voltage range 24V
ESD/EMP protection Air: ± 16 kV, contact: ± 8 kV
Ambient operating temperature -10 to 50° C (14 to 122° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
NDAA Compliant Yes
LEDs
System (1) White/blue
Ethernet 1G: green
10/100 Mbps: amber
SFP 1G: green
Software
Mode Layer 2 Ethernet switch
VLAN 4K VLANs
QoS (16) Priority queues per user port and traffic classification
Jumbo frame 10 KB
PoE Enable/disable passive PoE
Other TFTP recovery
