Komputer miniPC GIGABYTE BRIX GB-BRi3H-10110 Core i3-10110U 1.6-4.1GHz/2 sloty DDR4/HDD SSD 2.5/brak systemu

Szczegóły
BRi3H-10110 (rev. 1.0)

Features

High Performance Ultra Compact PC (46.8 x 119.5 x 119.5 mm)
Features Intel Core™ i3-10110U Processors
Dual SO-DIMM DDR4 supports up to 2666MHz, 64GB
Dual HDMI™ supports resolutions up to 4K/60P
Intel Wireless-AC 3168, dual band WiFi & Bluetooth 4.2
Massive I/O ports, included 6 USB 3.2 Gen2, Gigabit LAN, RS232 Com Port
Supports Add-On Cards upgrade kit for 2nd LAN and 2nd RS 232 COM port
VESA Mount bracket (75 x75 mm, 100 x 100 mm)



TECHNICAL SPECIFICATIONS

Dimension : 46.8 mm x 119.5 mm x 119.5 mm (1.8" x 4.7" x 4.7")
Motherboard Size : 105mm x 112.4mm


CPU :
10th Generation Intel Core™ i3 Processor
i3-10110U 4.1GHz, 2 core (TDP 15W)

Memory :
2 x SO-DIMM DDR4 slot
2666MHz
Max. 64GB


LAN : Gigabit LAN (Realtek RTL8111HS)
Wifi Card : Intel Dual Band Wireless-AC 3168
Graphics : Intel UHD Graphics 620
Audio : Realtek ALC255
VGA Resolution (Max.) : 1920 x 1200 @60 Hz
HDMI Resolution (Max.) : HDMI 2.0: 4K (3840×2160) @ 60 Hz
Expansion Slots : 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

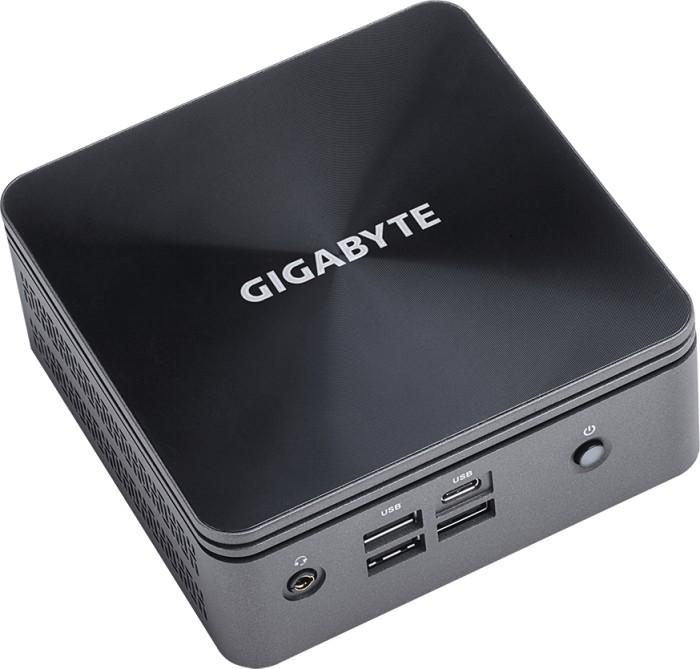

Front I/O :
3 x USB 3.2 Gen 2
1 x USB 3.2 Gen 2 Type C
1 x Headphone / Mic Jack
1 x Power Button

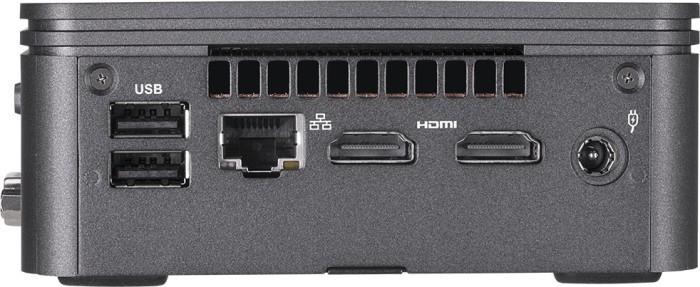

Rear I/O :
2 x HDMI 2.0
2 x USB 3.2 Gen 2
1 x RJ45
1 x DC-In

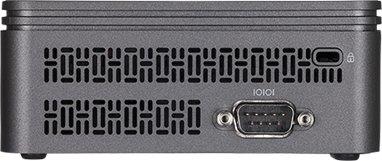

Side I/O :
1 x Kensington lock slot
1 x RS232 COM Port


Storage Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
Power Supply :
Input: AC 100-240V
Output: DC 19V
4.74A


VESA : Bracket included
Supports : 75 x 75 and 100 x 100 mm
Environment : System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
Support OS : Windows 10
