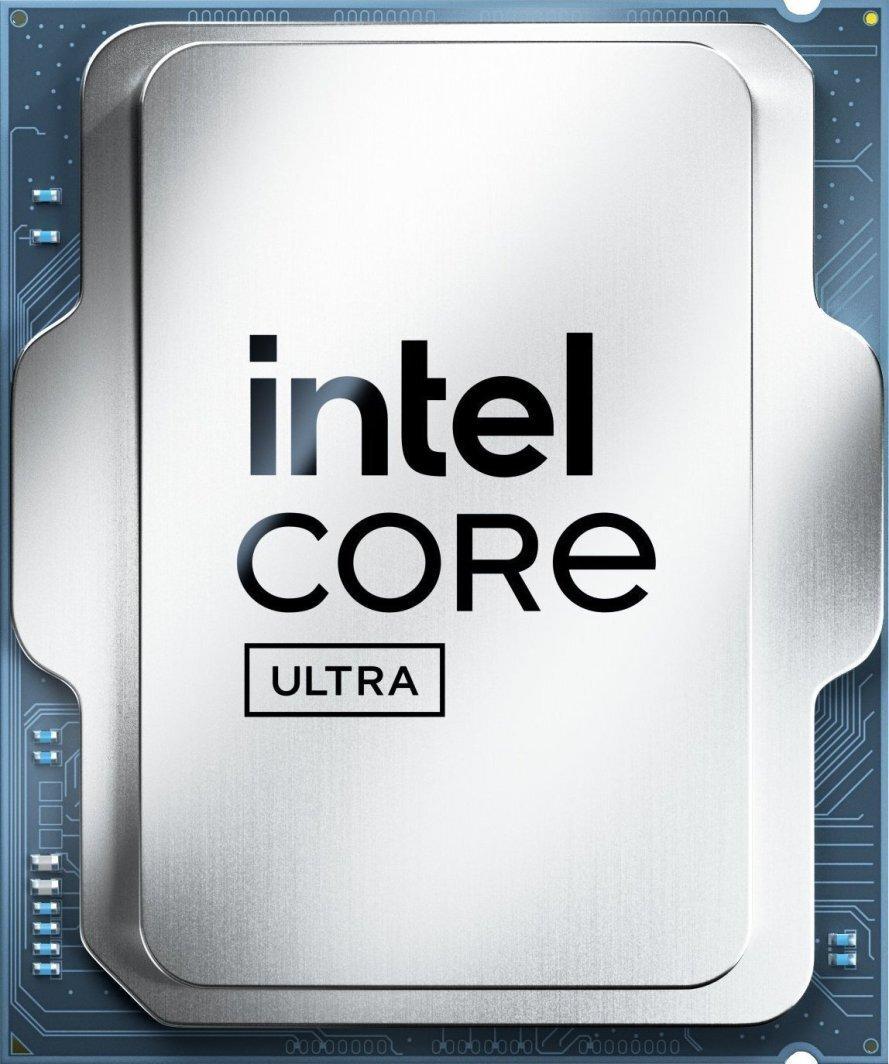

Intel Core Ultra 7 270K Plus 3.7/5.5 GHz BOX (24 rdzenie / 24 wątki) (Intel Graphics) (Socket 1851, 125/250W) [BX80768270K]

Specyfikacja dla profesjonalistów

--- Essentials ---
Product Collection : Intel® Core™ Ultra Processors (Series 2)
Code Name : Products formerly Arrow Lake
Vertical Segment : Desktop
Processor Number : 270K PLUS
Overall Peak TOPS (Int8) : 36

--- CPU Specifications ---
Total Cores : 24
# of Performance-cores : 8
# of Efficient-cores : 16
# of Low Power Efficient-cores : 0
Total Threads : 24
Max Turbo Frequency : 5.5 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency : 5.5 GHz
Performance-core Max Turbo Frequency : 5.4 GHz
Efficient-core Max Turbo Frequency : 4.7 GHz
Performance-core Base Frequency : 3.7 GHz
Efficient-core Base Frequency : 3.2 GHz
Cache : 36 MB Intel® Smart Cache
Total L2 Cache : 40 MB
Processor Base Power : 125 W
Maximum Turbo Power : 250 W
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
AI Software Frameworks Supported by CPU : OpenVINO™ | WindowsML | DirectML | ONNX RT | WebNN
CPU Lithography : TSMC N3B

--- Supplemental Information ---
Marketing Status : Launched
Launch Date : Q1'26
Embedded Options Available : No
Use Conditions : PC/Client/Tablet | Workstation
Datasheet : View now

--- Memory Specifications ---
Max Memory Size (dependent on memory type) : 256 GB
Memory Types : Up To DDR5 7200 MT/s
Max # of Memory Channels : 2
ECC Memory Supported : Yes

--- GPU Specifications ---
GPU Name : Intel® Graphics
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 2 GHz
GPU Peak TOPS (Int8) : 8
Graphics Output : eDP1.4b | DP 2.1 UHBR20 | HDMI 2.1 FRL
Xe-cores : 4
Max Resolution (HDMI) : 4096 x 2304 @ 60Hz (HDMI 2.1 TMDS)7680 x 4320 @ 60Hz (HDMI 2.1 FRL)
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) : 3840 x 2400 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3
H.264 Hardware Encode/Decode : Yes
H.265 (HEVC) Hardware Encode/Decode : Yes
AV1 Encode/Decode : Yes
Intel® Quick Sync Video : Yes
# of Displays Supported : 4
Device ID : 0x7D67
Intel® Deep Learning Boost (Intel® DL Boost) on GPU : Yes
AI Software Frameworks Supported by GPU : OpenVINO™ | WindowsML | DirectML | ONNX RT | WebGPU

--- NPU Specifications ---
NPU Name : Intel® AI Boost
NPU Peak TOPS (Int8) : 13
Sparsity Support : Yes
Windows Studio Effects Support : Yes
AI Software Frameworks Supported by NPU : OpenVINO™ | WindowsML | DirectML | ONNX RT | WebNN

--- Expansion Options ---
Direct Media Interface (DMI) Revision : 4
Max # of DMI Lanes : 8
Intel® Thunderbolt™ 4 : Yes
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+2x4 | 2x8+2x4 | 1x8+4x4
Max # of PCI Express Lanes : 24

--- Package Specifications ---
Sockets Supported : FCLGA1851
Thermal Solution Specification : PCG 2020A
Max Operating Temperature : 105 °C
Package Size : 45 mm x 37.5 mm

--- Advanced Technologies ---
Intel® Gaussian & Neural Accelerator : 3.5
Intel® Thread Director : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Max Technology 3.0 : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : No
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes
Intel® Volume Management Device (VMD) : Yes

--- Security & Reliability ---
Intel vPro® Eligibility : Intel vPro® Enterprise
Intel® Threat Detection Technology (TDT) : Yes
Intel® Active Management Technology (AMT) : Yes
Intel® Standard Manageability (ISM) : Yes
Intel® Remote Platform Erase (RPE) : Yes
Intel® One-Click Recovery : Yes
Intel® Secure Key : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® Total Memory Encryption - Multi Key : Yes
Intel® AES New Instructions : Yes
Intel® Trusted Execution Technology : Yes
Execute Disable Bit : Yes
Intel® OS Guard : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Stable IT Platform Program (SIPP) : Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes
