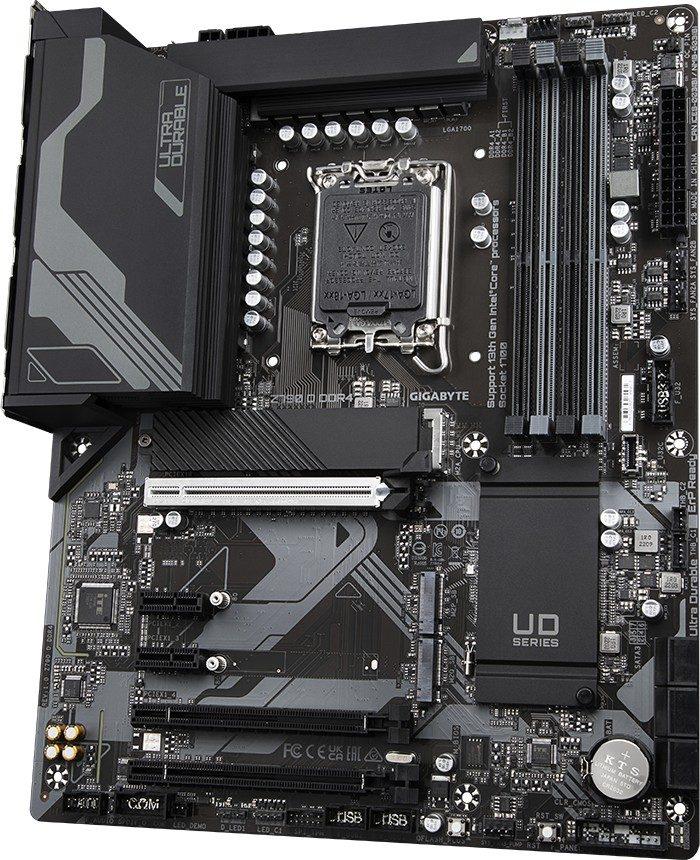

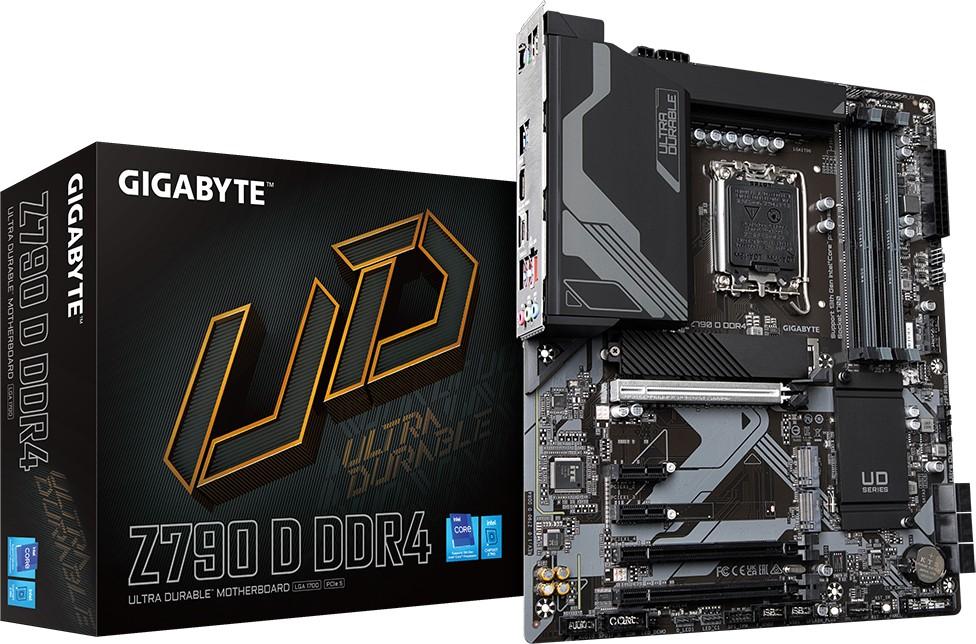

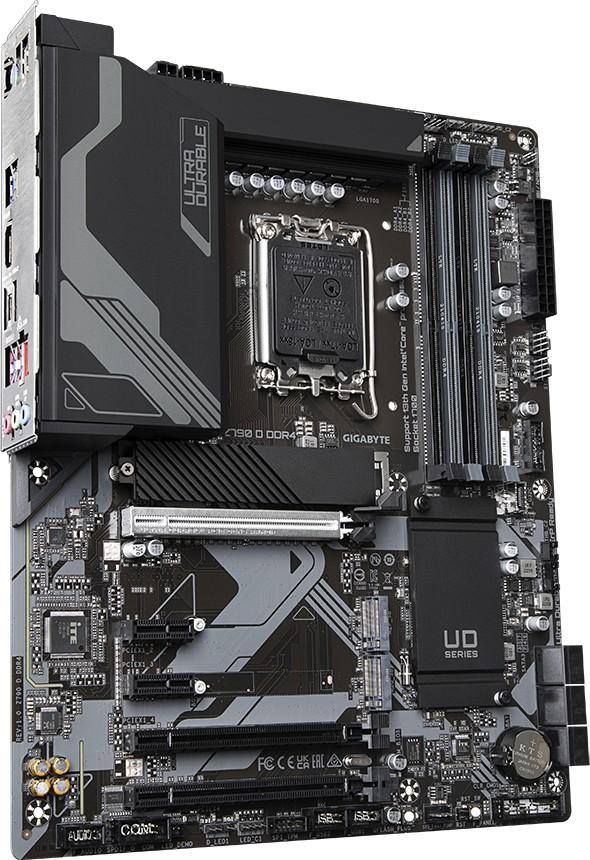

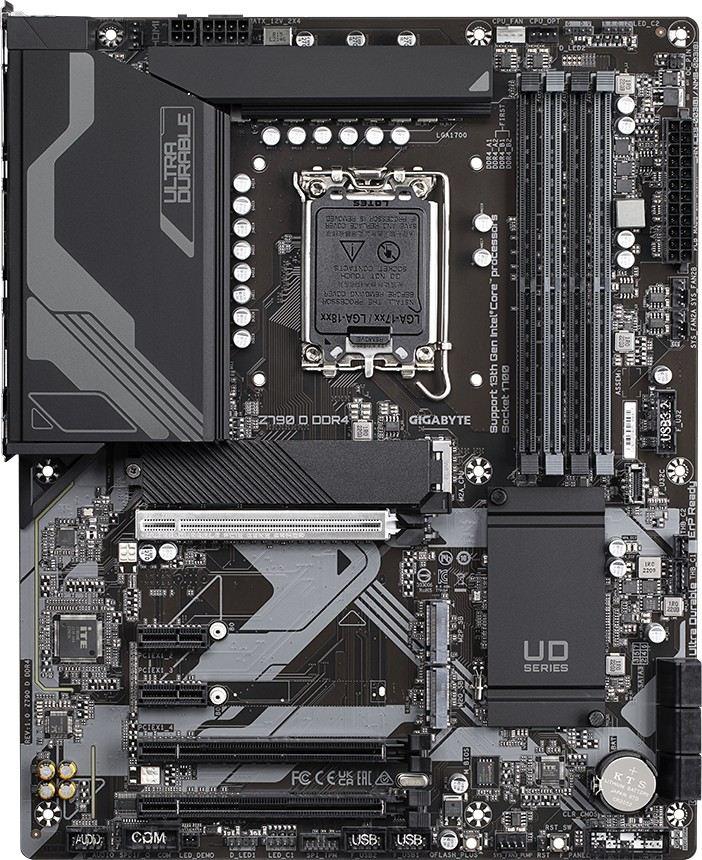

Gigabyte Z790 D DDR4 (Intel Z790) [S1700, 4xDDR4 do 5333MHz, (HDMI 2.1) (3xM.2, 1xPCIe 5.0 x16, 1xPCIe 4.0 x16 (x4), 1xPCIe 3.0 x16 (x1), 2xPCIe 3.0 x1), ATX]

--- Procesor ---
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Wielkość pamięci cache L3 różni się w zależności od procesora
(Please refer "CPU Support List" for more information.)

--- Chipset ---
Intel® Z790 Express Chipset

--- Pamięć ---
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dwukanałowa obsługa pamięci
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Obsługa pamięci Extreme Memory Profile (XMP)
(Aby uzyskać więcej informacji, zapoznaj się z "Listą obsługiwanych pamięci".)

--- Wyjścia graficzne ---
Integrated Graphics Processor - Intel® HD Graphics support
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)

--- Układ audio ---
Realtek® audio codec
Obsługa High Definition Audio
Ilość kanałów audio 2/4/5.1/7.1
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Wsparcie dla S/PDIF Out

--- LAN ---
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

--- Złącza rozszerzeń ---
CPU
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

--- Złącza SATA ---
CPU
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
6 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

--- USB ---
Chipset
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

--- Wewnętrzne złącza wejścia/wyjścia ---
1 x 24-pinowe złącze zasilania ATX
1 x złącze zasilania 8-pin 12V
1 złącze zasilania 4-pin ATX 12V
1 x złącze wentylatora procesora
1 x water cooling CPU fan header
3 x złącza pinowe wentylatorów
1 x system fan/water cooling pump header
2 x Addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x złącze panelu przedniego
1 x złącze front panel audio
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x złącza USB 2.0/1.1
1 x serial port header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Dostępność funkcji TPM zależy od regionalnej polityki produkcyjnej.
1 x przycisk RESET
1 x Q-Flash Plus button
1 x reset jumper
1 x złącze pinowe Clear CMOS

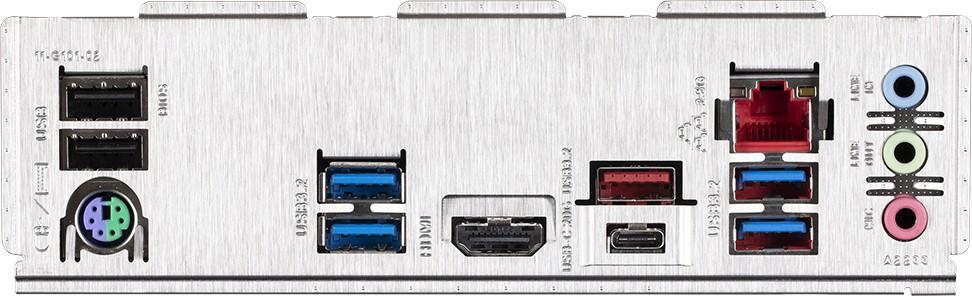

--- Złącza wejścia/wyjścia na tylnym panelu ---
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x port USB 2.0/1.1
1 x HDMI 2.0 port
1 x port RJ-45
3 x audio jacks

--- Kontroler I/O ---
iTE® I/O Controller Chip

--- Monitoring sprzętowy ---
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

--- BIOS ---
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

--- Inne funkcje ---
Support for GIGABYTE Control Center (GCC)
*Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Obsługa Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton® Internet Security (wersja OEM)
LAN bandwidth management software

--- System operacyjny ---
Support for Windows 11 64-bit
Support for Windows 10 64-bit

--- Wymiary ---
Format ATX; 30.5cm x 24.4cm
