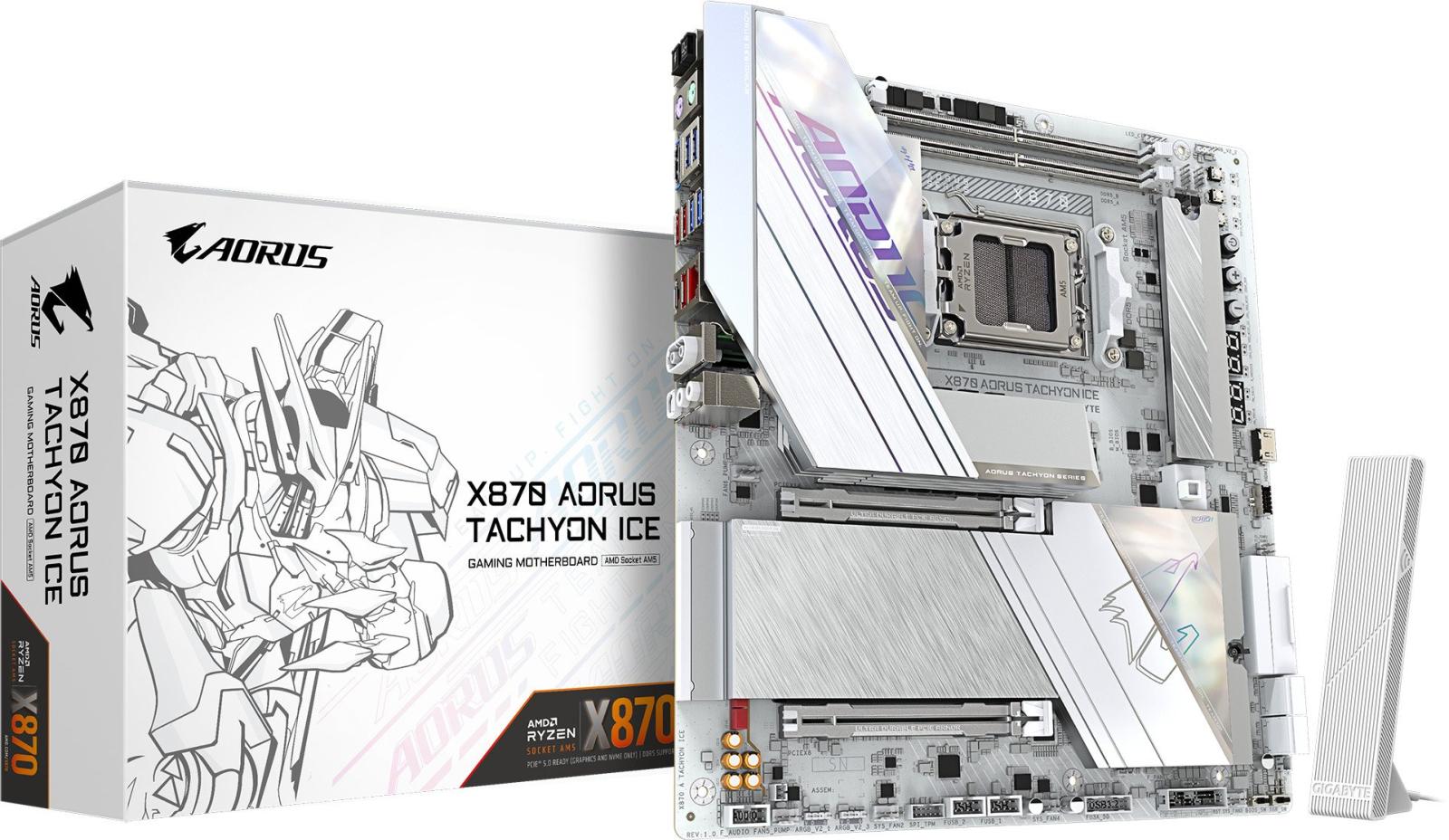

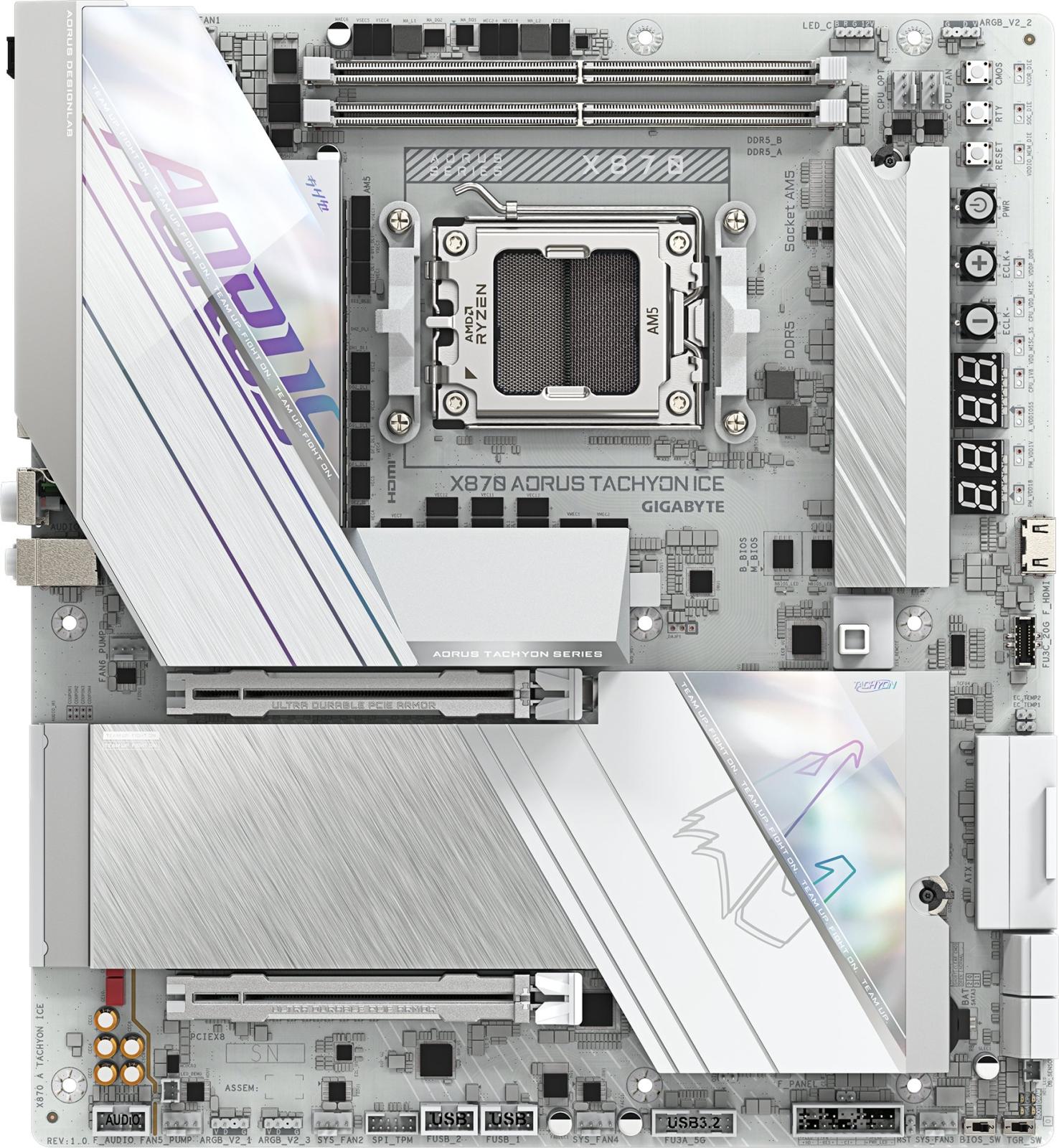

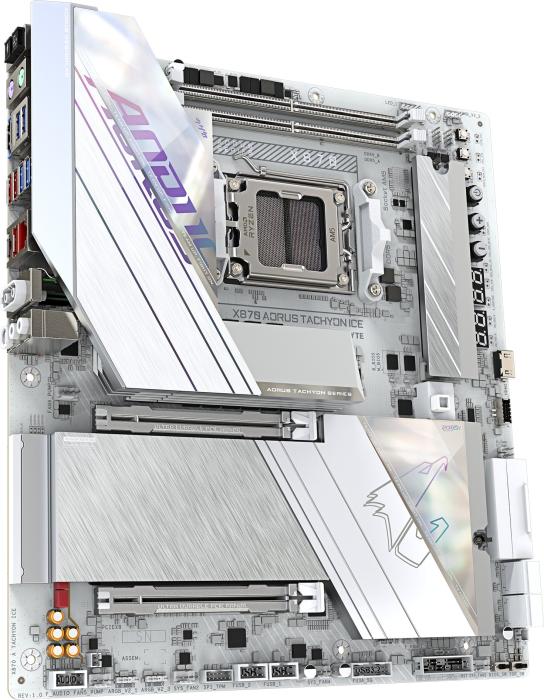

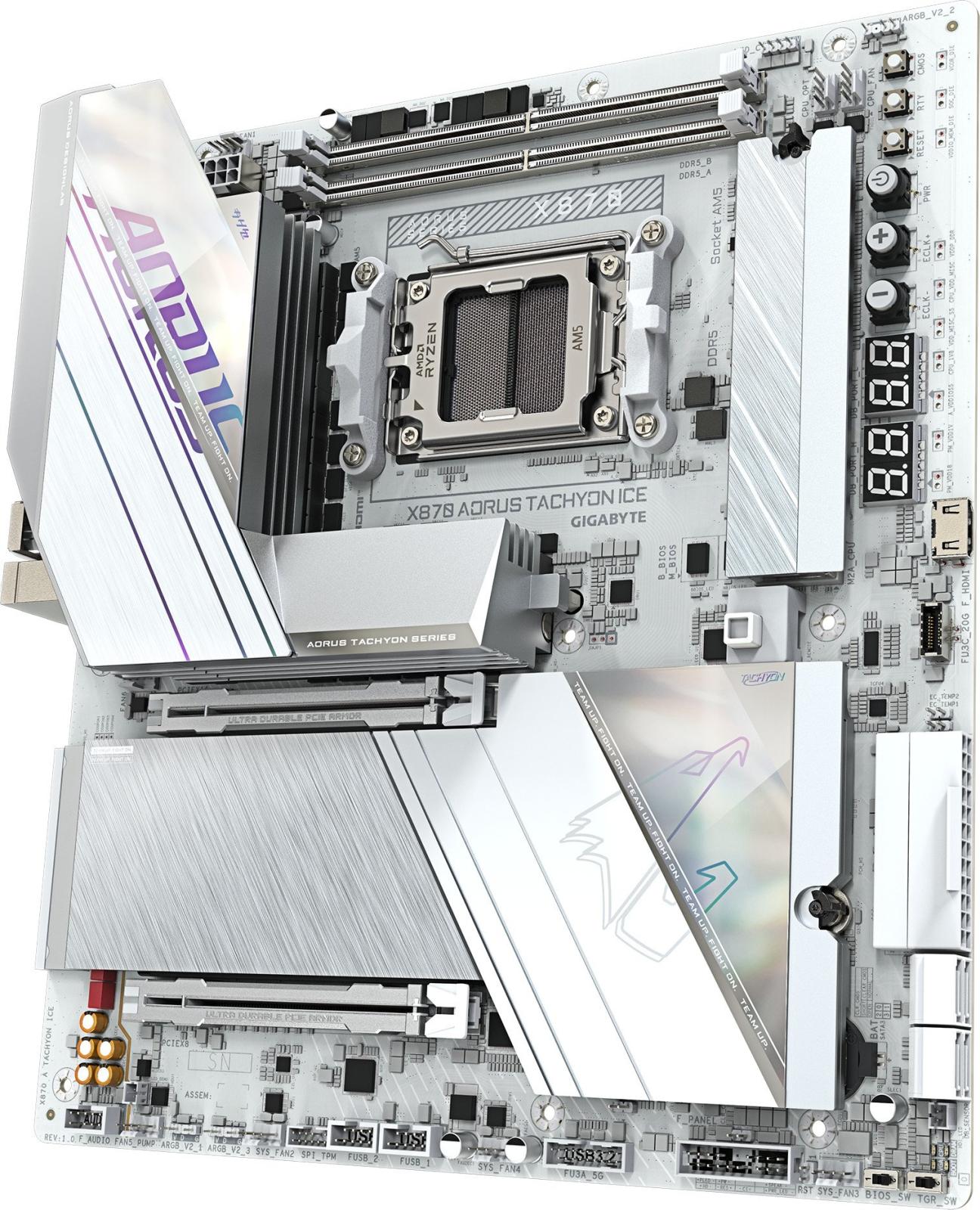

Gigabyte X870 AORUS TACHYON ICE (AMD X870) [AM5, 4xDDR5 do 9600MHz, (HDMI 2.1) (3xM.2, 1xPCIe 5.0 x16, 1xPCIe 5.0 x16 (x8)), WiFi 7, BT 5.4, E-ATX]

--- Procesor ---
AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list)

--- Chipset ---
AMD X870

--- Pamięć ---
Support for DDR5 9600(OC)/ 9200(OC)/ 8800(OC)/ 8600(OC)/ 8400(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dwukanałowa obsługa pamięci
Support for ECC and non-ECC Un-buffered DIMM memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

--- Wyjścia graficzne ---
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller
1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.
Integrated Graphics Processor - AMD Radeon™ Graphics support
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support native HDMI 2.1 TMDS compatible ports.
1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4.
(Graphics specifications may vary depending on CPU support.)

--- Układ audio ---
Realtek® ALC1220 codec
* The back panel line out jack supports DSD audio.
Obsługa High Definition Audio
Ilość kanałów audio 2/4/5.1/7.1
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Wsparcie dla S/PDIF Out

--- LAN ---
Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

--- Moduł komunikacji bezprzewodowej ---
Realtek® Wi-Fi 7 RTL8922AE
802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.4
Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
** Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations.

--- Złącza rozszerzeń ---
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX8), integrated in the CPU
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode
* The PCIEX8 slot becomes unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.

--- Złącza SATA ---
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

--- USB ---
CPU+ASMedia USB4® controller
1 x USB4® USB Type-C® port on the back panel
CPU
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset
1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub
4 x USB 3.2 Gen 1 ports on the back panel

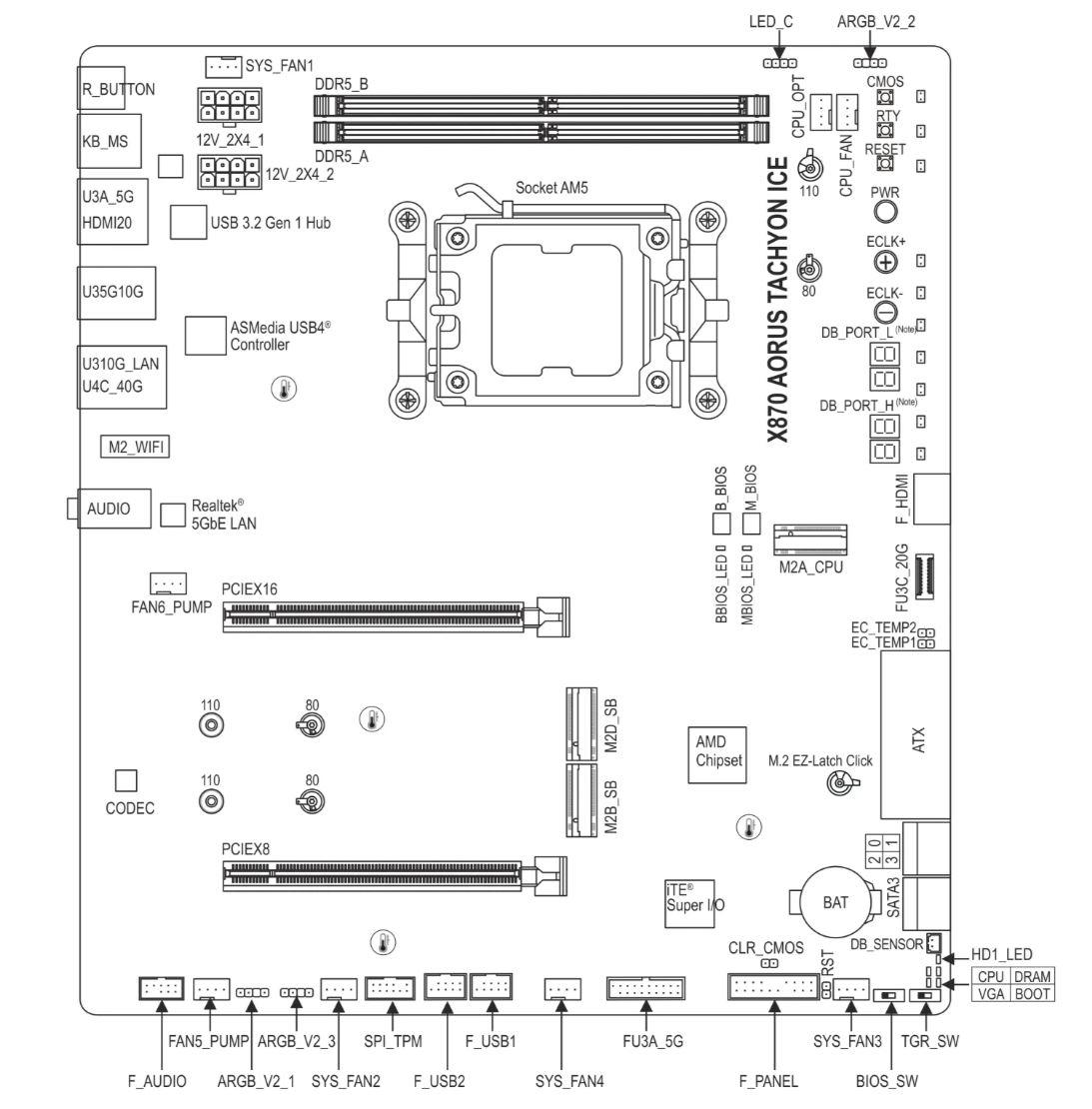

--- Wewnętrzne złącza wejścia/wyjścia ---
1 x 24-pin ATX main power connector
2 x 8-pinowe złącza zasilania ATX 12V
1 x złącze wentylatora procesora
1 x CPU fan/water cooling pump header
4 x złącza pinowe system fan
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 złącza SATA 6Gb/s
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x złącza USB 2.0/1.1
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
TPM function is optional due to different regional policy
1 x HDMI port (Uwaga)
1 x reset jumper
1 x złącze pinowe Clear CMOS
2 x temperature sensor headers
1 x power button (PWR)
1 x reset button (RESET)
1 x Clear CMOS button (CMOS)
1 x Cold Reset button (RTY)
1 x CPU Clock up button (ECLK+)
1 x CPU Clock down button (ECLK-)
1 x BIOS switch (BIOS_SW)
1 x OC Trigger switch (TGR_SW)

--- Punkty pomiaru napięć ---

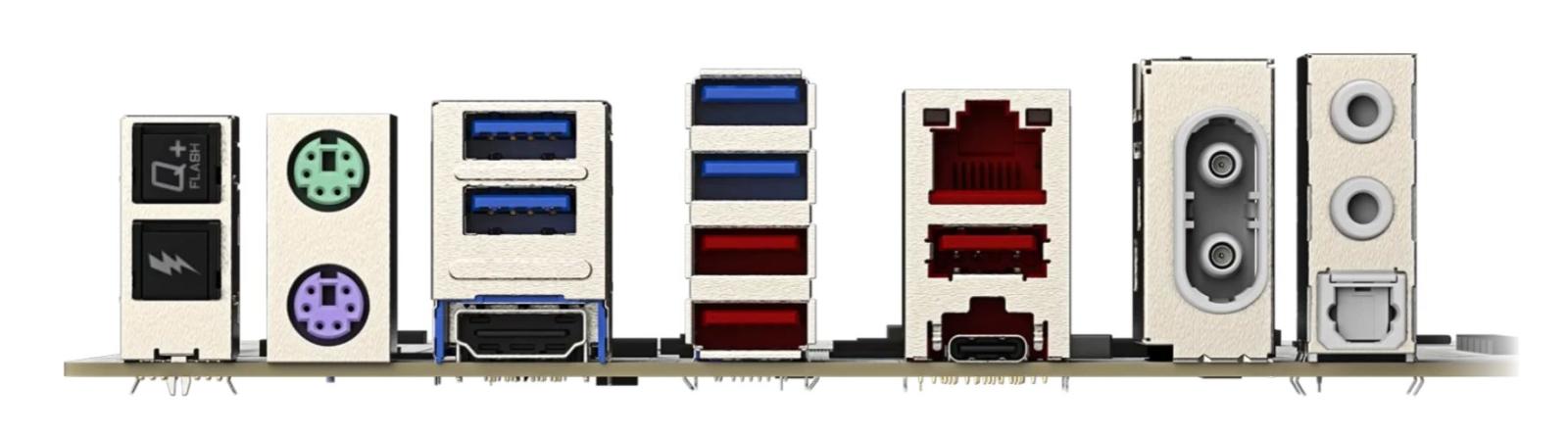

Złącza wejścia/wyjścia na tylnym panelu
1 x Q-Flash Plus button
1 x OC Ignition button
1 x PS/2 port klawiatury
1 x port myszy PS/2
1 x HDMI port (Uwaga)
4 x USB 3.2 Gen 1 ports
3 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB4® USB Type-C® port (DisplayPort (Uwaga))
1 x port RJ-45
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
(Note) Actual support may vary by CPU.

--- Kontroler I/O ---
iTE® I/O Controller Chip

--- Monitoring sprzętowy ---
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection

--- BIOS ---
2 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
Wsparcie dla technologii DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

--- Inne funkcje ---
Support for GIGABYTE Control Center (GCC)
*Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Obsługa Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

--- Bundled Software ---
Norton® Internet Security (wersja OEM)

--- System operacyjny ---
Support for Windows 11 64-bit

--- Wymiary ---
E-ATX Form Factor; 30.5 cm x 27.5 cm
