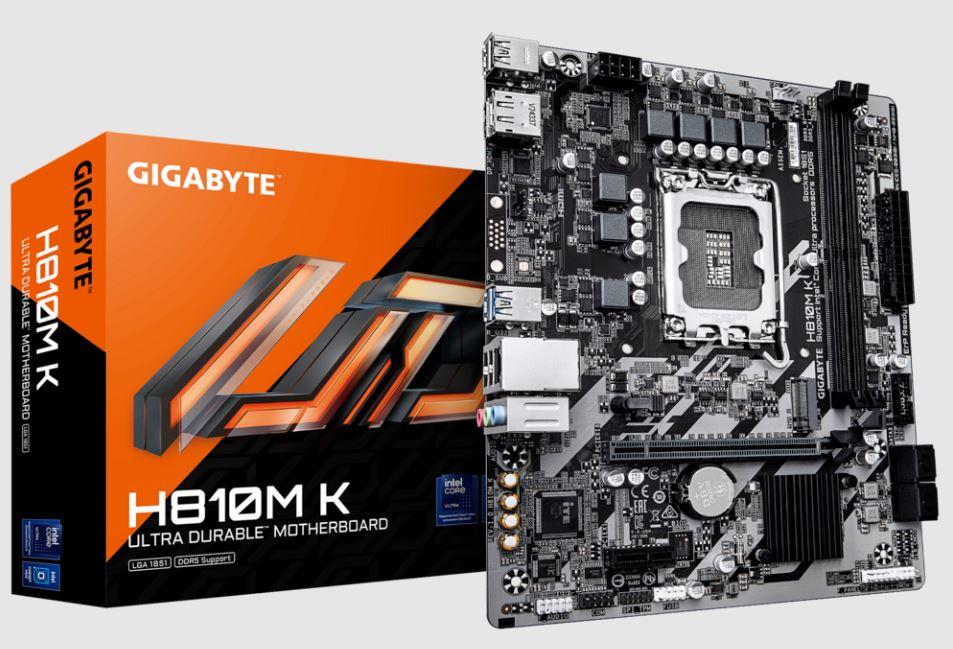

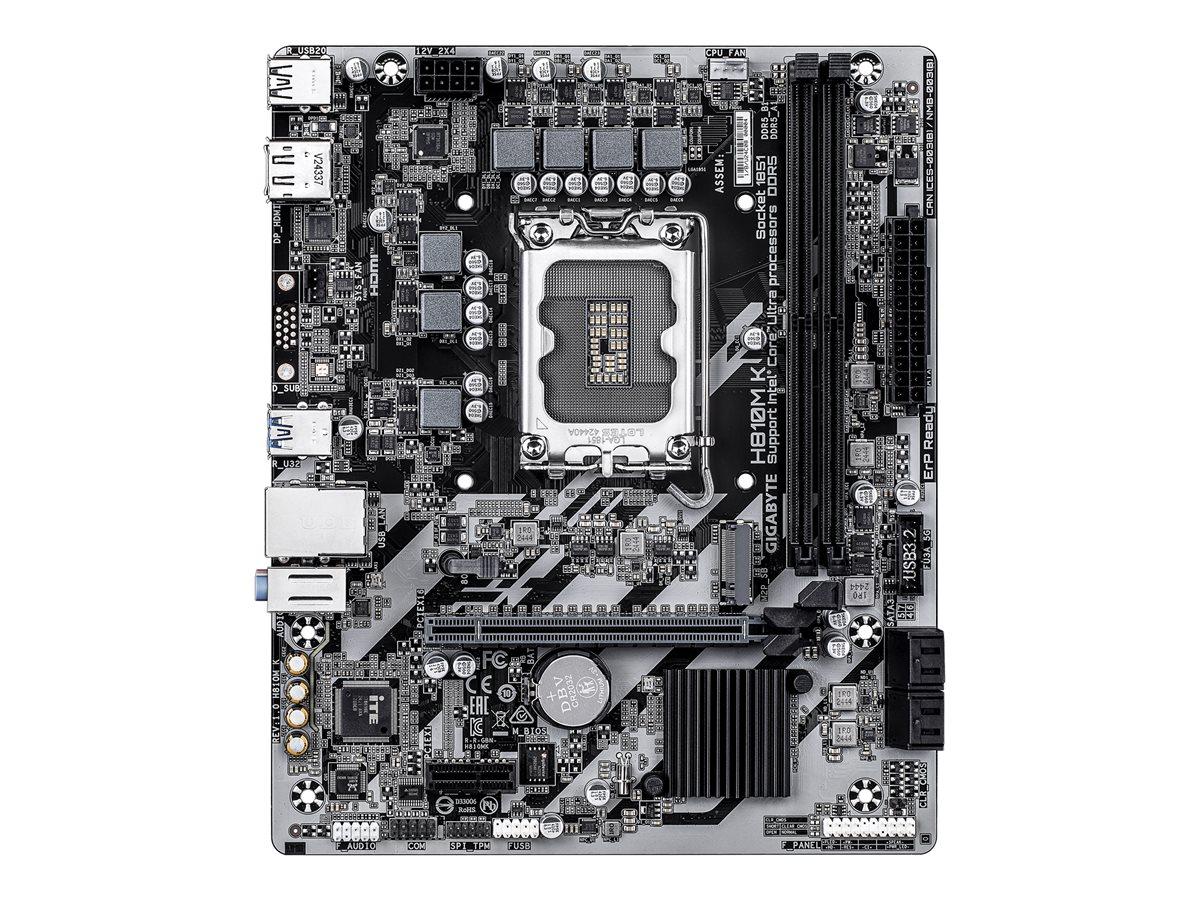

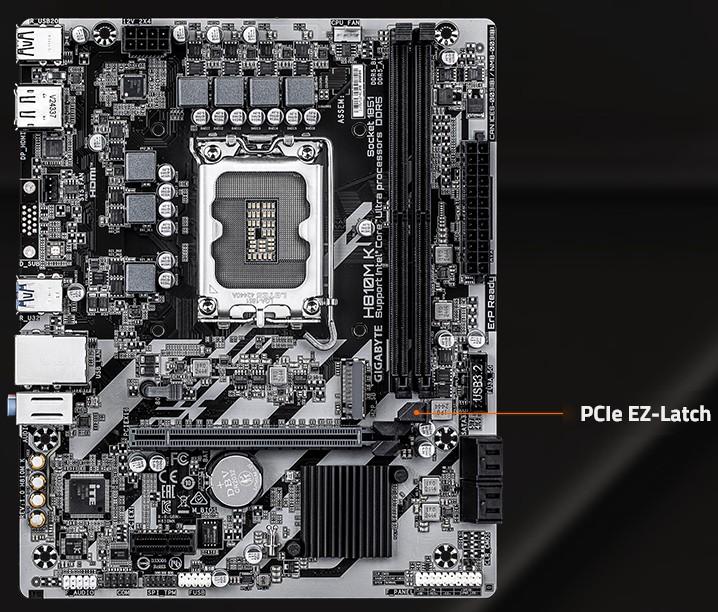

Gigabyte H810M K

--- Procesor ---
LGA1851 socket: Support for Intel® Core™ Ultra Processors
Wielkość pamięci cache L3 różni się w zależności od procesora
(Go to GIGABYTE's website for the latest CPU support list)

--- Chipset ---
Intel® H810 Express Chipset

--- Pamięć ---
Support for DDR5 6400/5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dwukanałowa obsługa pamięci
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Obsługa pamięci Extreme Memory Profile (XMP)
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

--- Wyjścia graficzne ---
Integrated Graphics Processor - Intel® HD Graphics support
1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz
* Support for DisplayPort 2.1 version.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)

--- Układ audio ---
Realtek® audio codec
Obsługa High Definition Audio
Ilość kanałów audio 2/4/5.1/7.1
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

--- LAN ---
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

--- Złącza rozszerzeń ---
CPU
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

--- Złącza SATA ---
Chipset
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

--- USB ---
Chipset
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

--- Wewnętrzne złącza wejścia/wyjścia ---
1 x 24-pinowe złącze zasilania ATX
1 x złącze zasilania 8-pin 12V
1 x złącze wentylatora procesora
1 x system fan header
1 x M.2 Socket 3 connector
4 złącza SATA 6Gb/s
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
Dostępność funkcji TPM zależy od regionalnej polityki produkcyjnej.
1 x złącze portu szeregowego
1 x złącze pinowe Clear CMOS

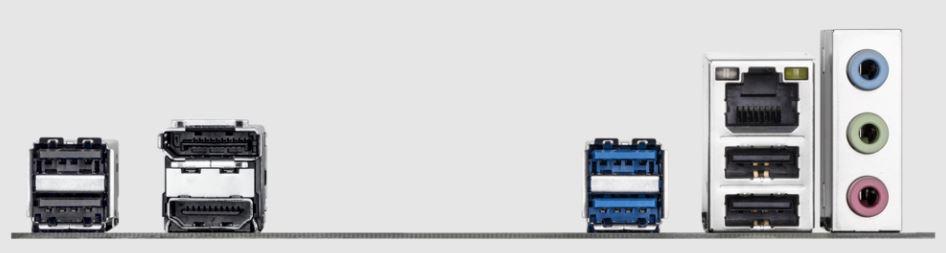

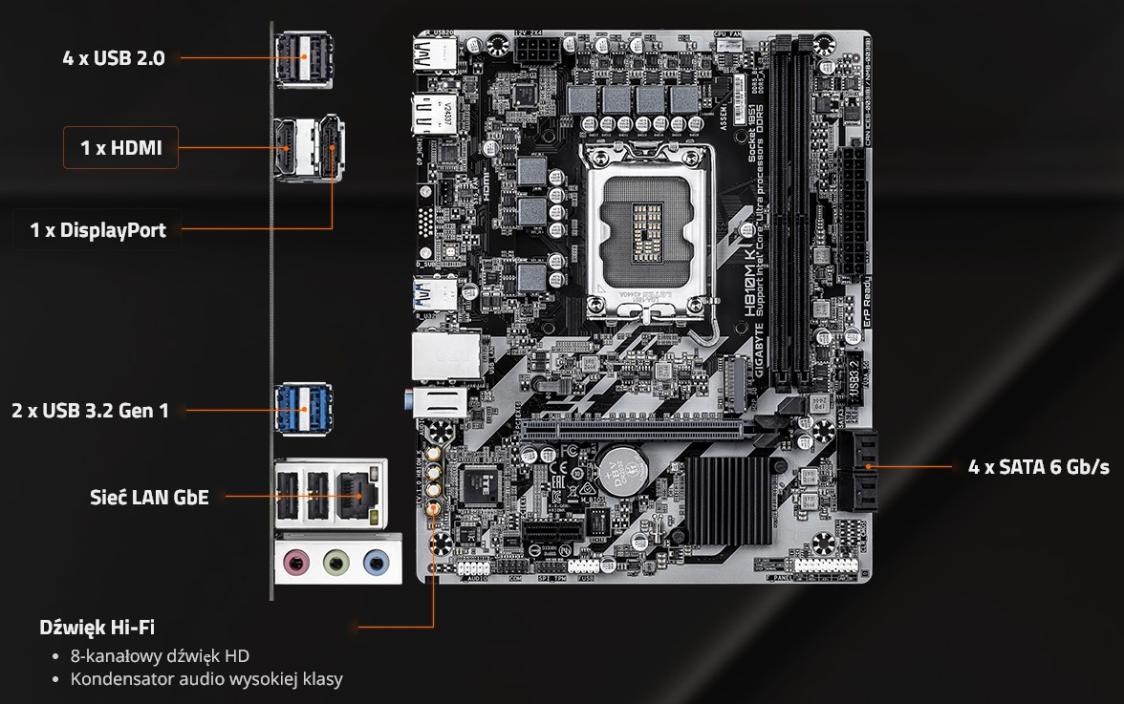

--- Złącza wejścia/wyjścia na tylnym panelu ---
1 x DisplayPort (Uwaga)
1 x HDMI port (Uwaga)
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x port RJ-45
3 x audio jacks
(Note) Actual support may vary by CPU.

--- Kontroler I/O ---
iTE® I/O Controller Chip

--- Monitoring sprzętowy ---
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

--- BIOS ---
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

--- Inne funkcje ---
Support for GIGABYTE Control Center (GCC)
*Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Smart Backup

--- Dołączone oprogramowanie ---
Norton® Internet Security (wersja OEM)
LAN bandwidth management software

--- System operacyjny ---
Support for Windows 11 64-bit
Support for Windows 10 64-bit
* The Intel® NPU driver is only supported on Windows 11.

--- Wymiary ---
Micro ATX Form Factor; 22.6cm x 18.5cm
