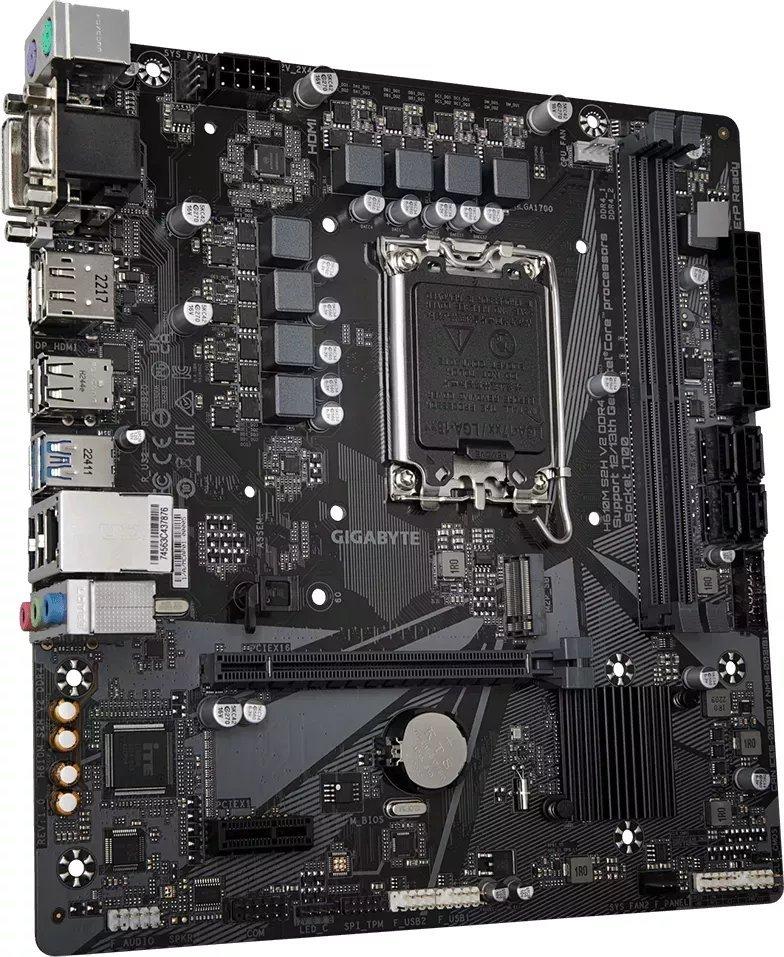

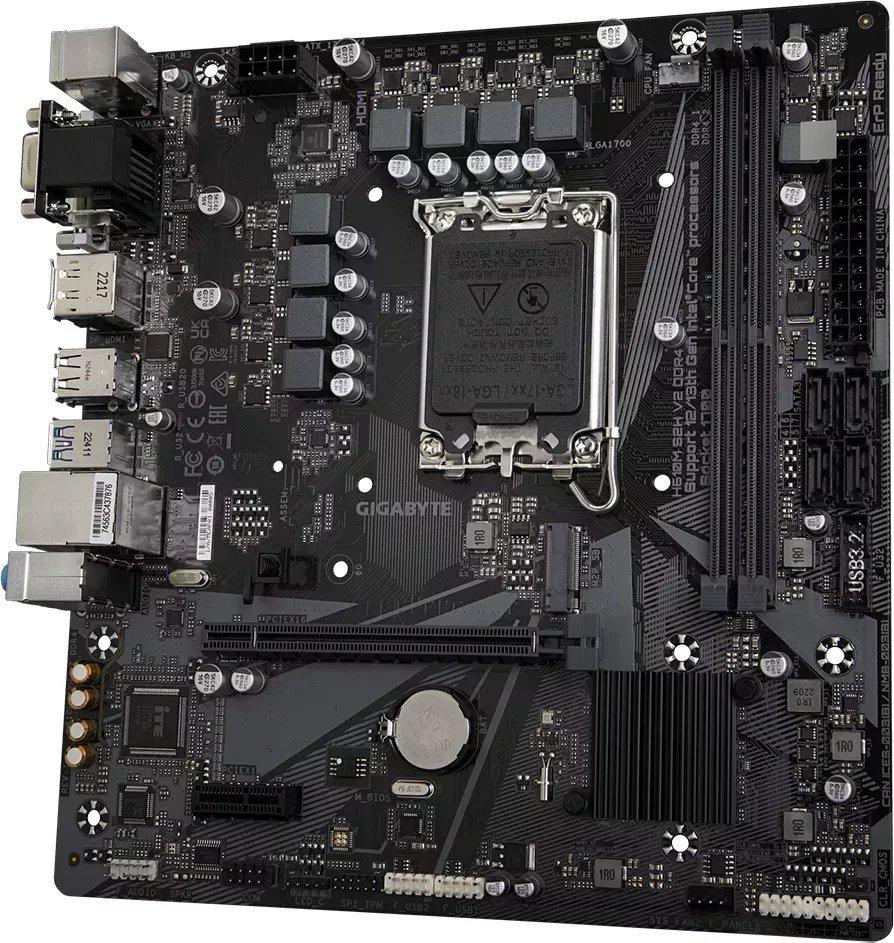

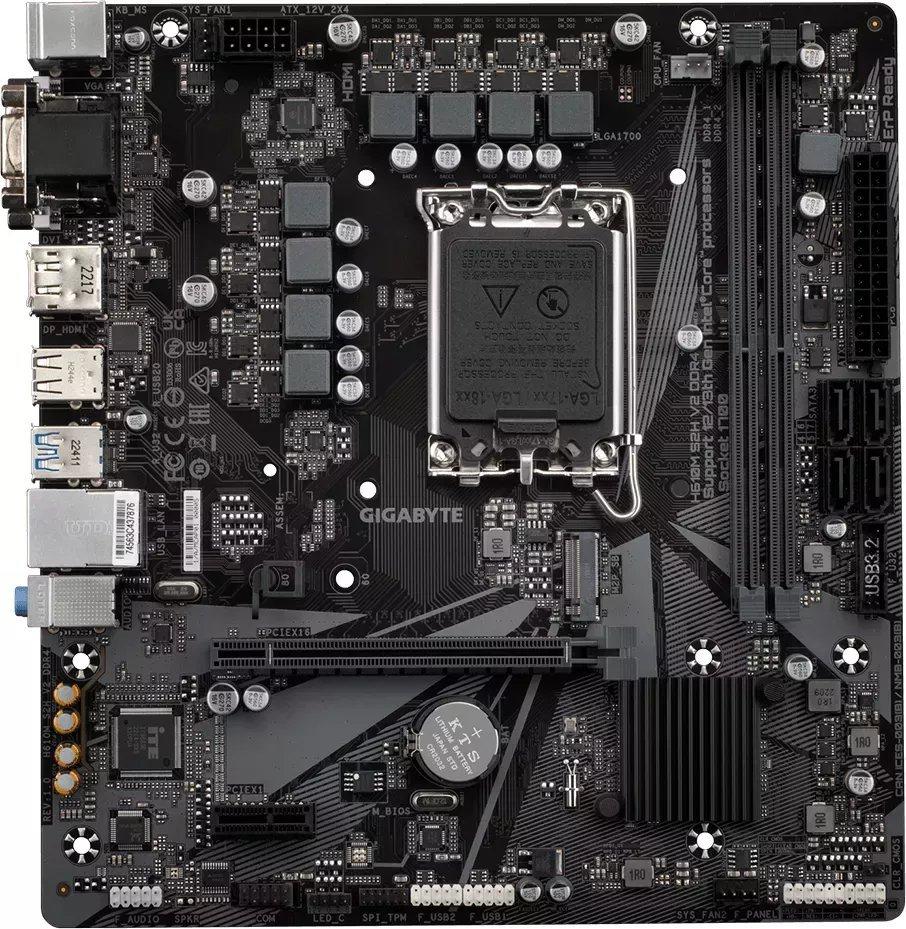

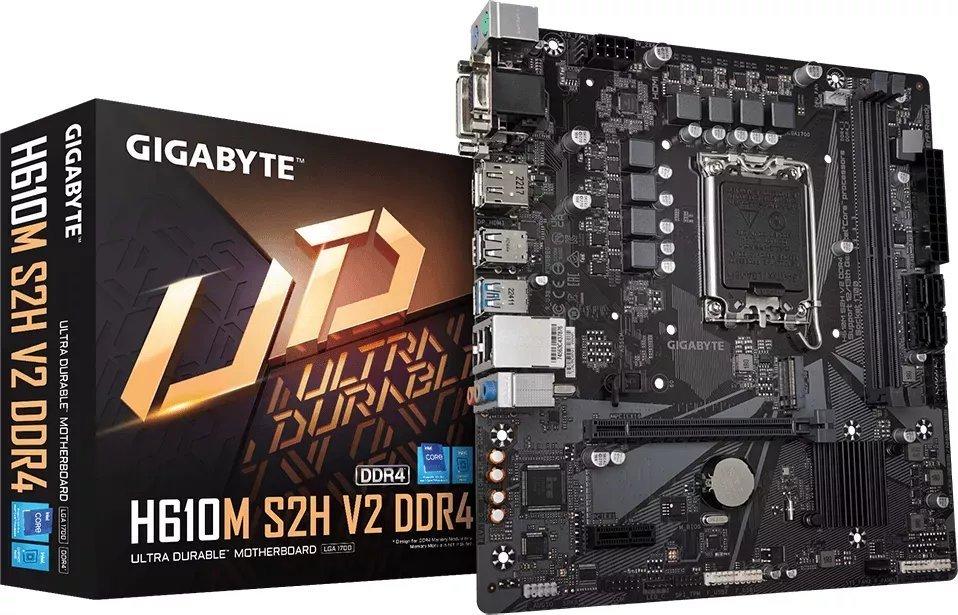

Gigabyte H610M S2H V2 DDR4 (Intel H610) [S1700, 2xDDR4 do 3200MHz, (HDMI 2.1, DP 1.2, CGA, DVI) (1xM.2, 1xPCIe 4.0 x16, 1xPCIe 3.0 x1), micro ATX]

--- Procesor ---
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
Wielkość pamięci cache L3 różni się w zależności od procesora
* Please refer to "CPU Support List" for more information.

--- Chipset ---
Intel® H610 Express Chipset

--- Pamięć ---
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dwukanałowa obsługa pamięci
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Obsługa pamięci Extreme Memory Profile (XMP)
(Aby uzyskać więcej informacji, zapoznaj się z "Listą obsługiwanych pamięci".)

--- Wyjścia graficzne ---
Integrated Graphics Processor - Intel® HD Graphics support
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)

--- Układ audio ---
Realtek® audio codec
Obsługa High Definition Audio
Ilość kanałów audio 2/4/5.1/7.1
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

--- LAN ---
Realtek® GbE LAN chip (1 Gbps/100 Mbps)

--- Złącza rozszerzeń ---
CPU
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Złącza SATA
Chipset
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
USB
Chipset
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub
4 x USB 2.0/1.1 ports available through the internal USB headers

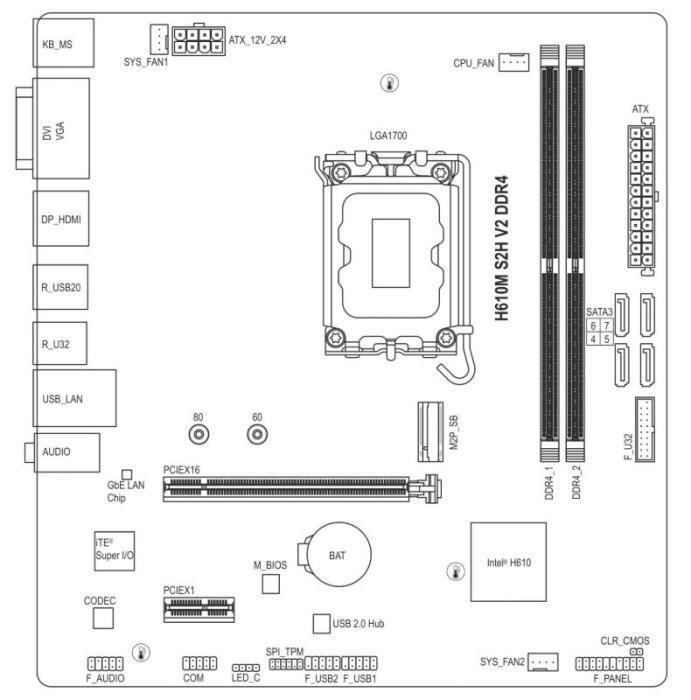

--- Wewnętrzne złącza wejścia/wyjścia ---
1 x 24-pinowe złącze zasilania ATX
1 x złącze zasilania 8-pin 12V
1 x złącze wentylatora procesora
2 x złącza wentylatora systemowego
1 x M.2 Socket 3 connector
4 złącza SATA 6Gb/s
1 x RGB LED strip header
1 x złącze panelu przedniego
1 x złącze front panel audio
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Dostępność funkcji TPM zależy od regionalnej polityki produkcyjnej.
1 x złącze portu szeregowego
1 x złącze pinowe Clear CMOS

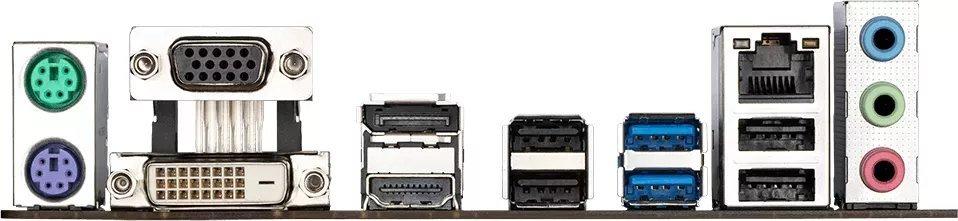

Złącza wejścia/wyjścia na tylnym panelu
1 x PS/2 port klawiatury
1 x port myszy PS/2
1 x port D-Sub
1 x port DVI-D
1 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x port RJ-45
3 x audio jacks

--- Kontroler I/O ---
iTE® I/O Controller Chip

--- Monitoring sprzętowy ---
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
*Whether the fan speed control function is supported will depend on the cooler you install.

--- BIOS ---
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

--- Inne funkcje ---
Wsparcie dla APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Obsługa @ BIOS ™
Ambient LED
EasyTune
Smart Backup
System Information Viewer
wsparcie dla Xpress Install

--- Dołączone oprogramowanie ---
Norton® Internet Security (wersja OEM)
LAN bandwidth management software

--- System operacyjny ---
Support for Windows 11 64-bit
Support for Windows 10 64-bit

--- Wymiary ---
Micro ATX Form Factor; 23.0cm x 21.5cm
