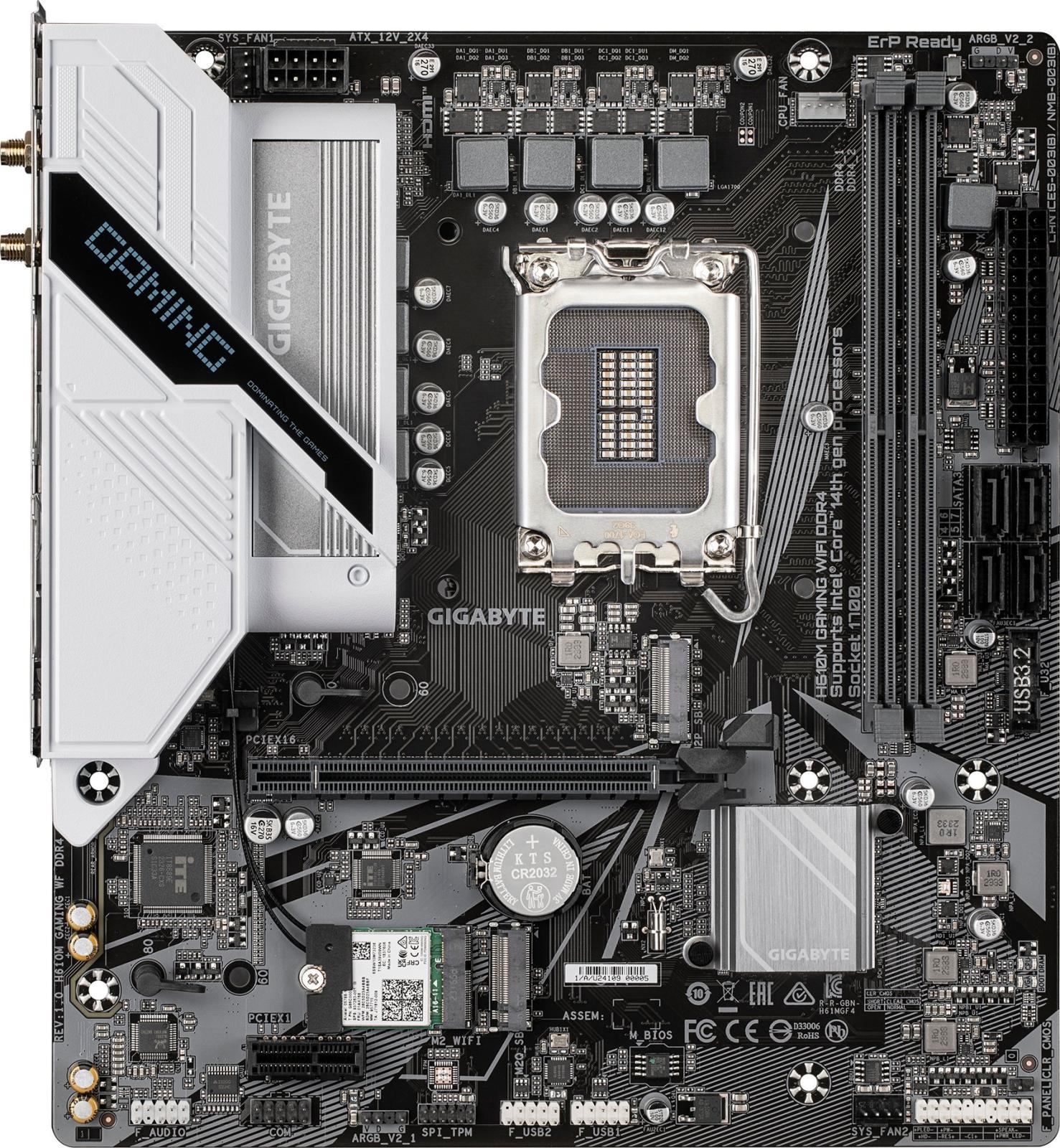

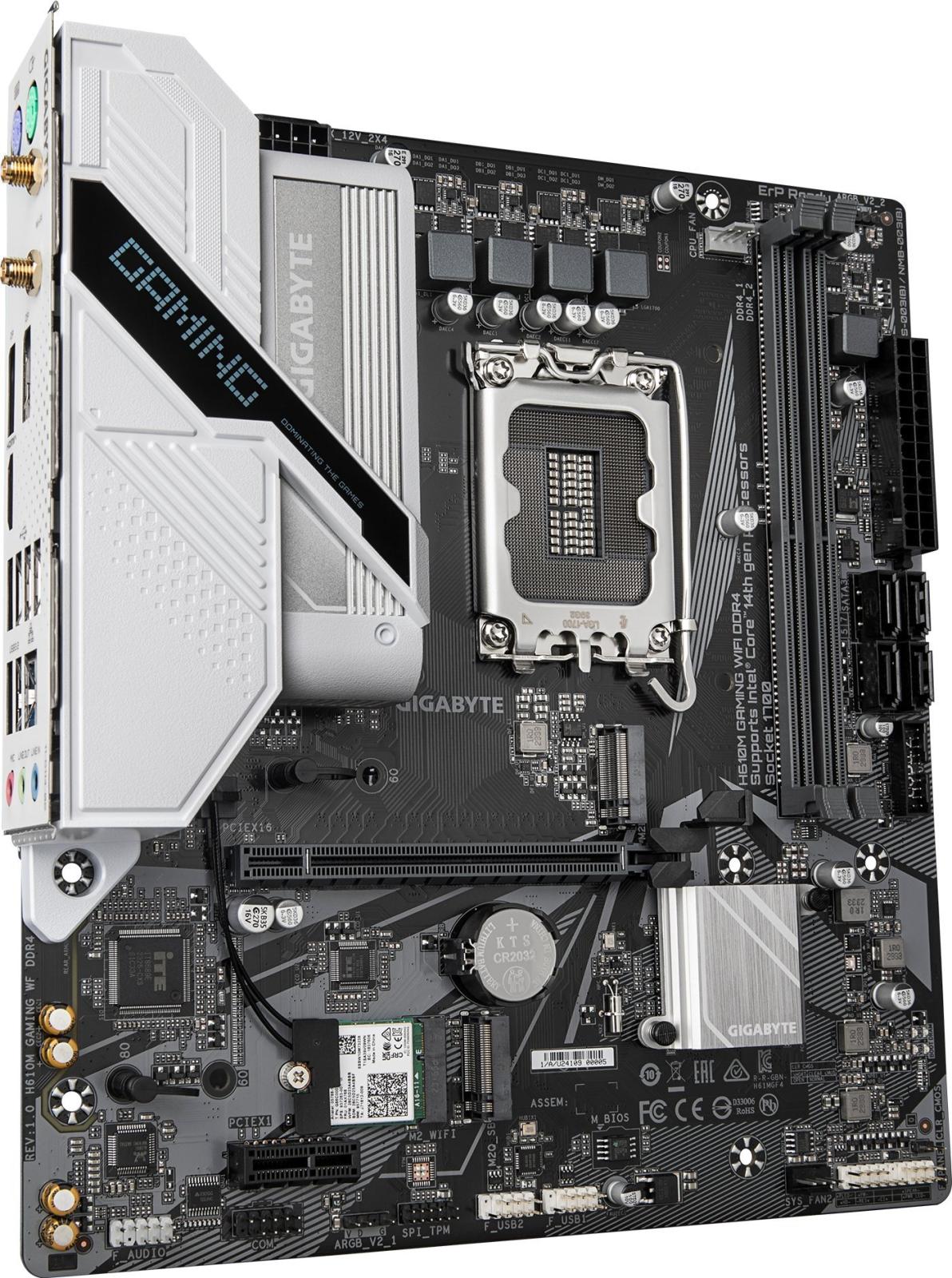

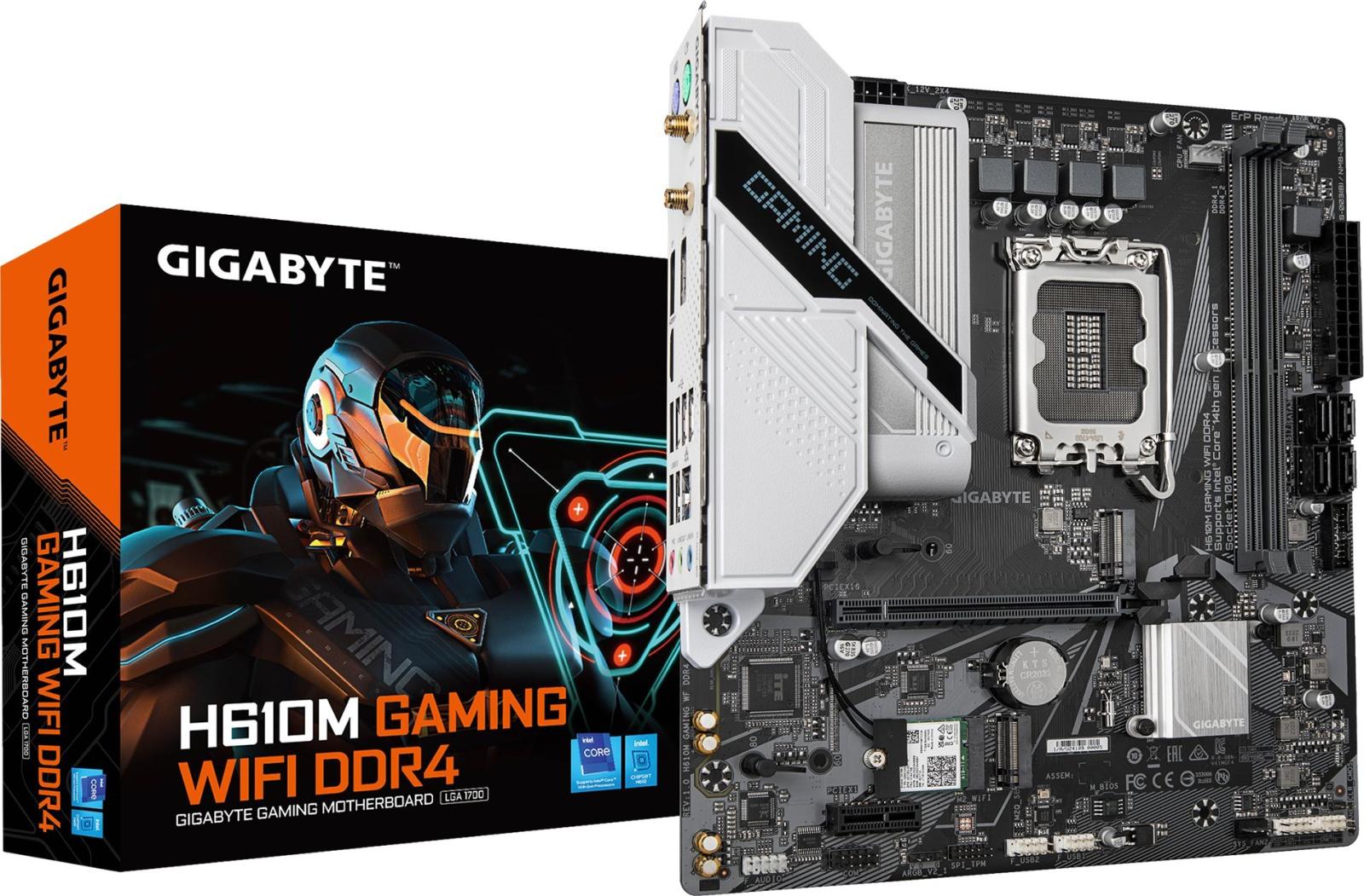

Gigabyte H610M GAMING WIFI DDR4 (Intel H610) [s1700, 2xDDR4 do 3200MHz, (HDMI 2.1, 2xDP 1.2) (1xM.2, PCIe 4.0 x16, PCIe 3.0 x1), WiFi 5, BT 5.1, micro ATX]

--- Procesor ---
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
Wielkość pamięci cache L3 różni się w zależności od procesora

--- Chipset ---
Intel® H610 Express Chipset

--- Pamięć ---
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dwukanałowa obsługa pamięci
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Obsługa pamięci Extreme Memory Profile (XMP)
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

--- Wyjścia graficzne ---
Integrated Graphics Processor - Intel® HD Graphics support
2 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time

--- Układ audio ---
Realtek® audio codec
Obsługa High Definition Audio
Ilość kanałów audio 2/4/5.1/7.1
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

--- LAN ---
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

--- Moduł komunikacji bezprzewodowej ---
Intel® Wireless-AC 9560 (PCB rev. 1.0)
WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.1
Support 11ac 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

--- Złącza rozszerzeń ---
CPU
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

--- Złącza SATA ---
Chipset
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x2 SSD support) (M2Q_SB)
4 x SATA 6Gb/s connectors

--- USB ---
Chipset
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports available through the internal USB header
Chipset+2 USB 2.0 Hubs
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

--- Wewnętrzne złącza wejścia/wyjścia ---
1 x 24-pinowe złącze zasilania ATX
1 x złącze zasilania 8-pin 12V
1 x złącze wentylatora procesora
2 x złącza wentylatora systemowego
2 x M.2 Socket 3 connectors
4 złącza SATA 6Gb/s
2 x addressable RGB Gen2 LED strip headers
1 x złącze panelu przedniego
1 x złącze front panel audio
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
Dostępność funkcji TPM zależy od regionalnej polityki produkcyjnej.
1 x złącze portu szeregowego
1 x złącze pinowe Clear CMOS

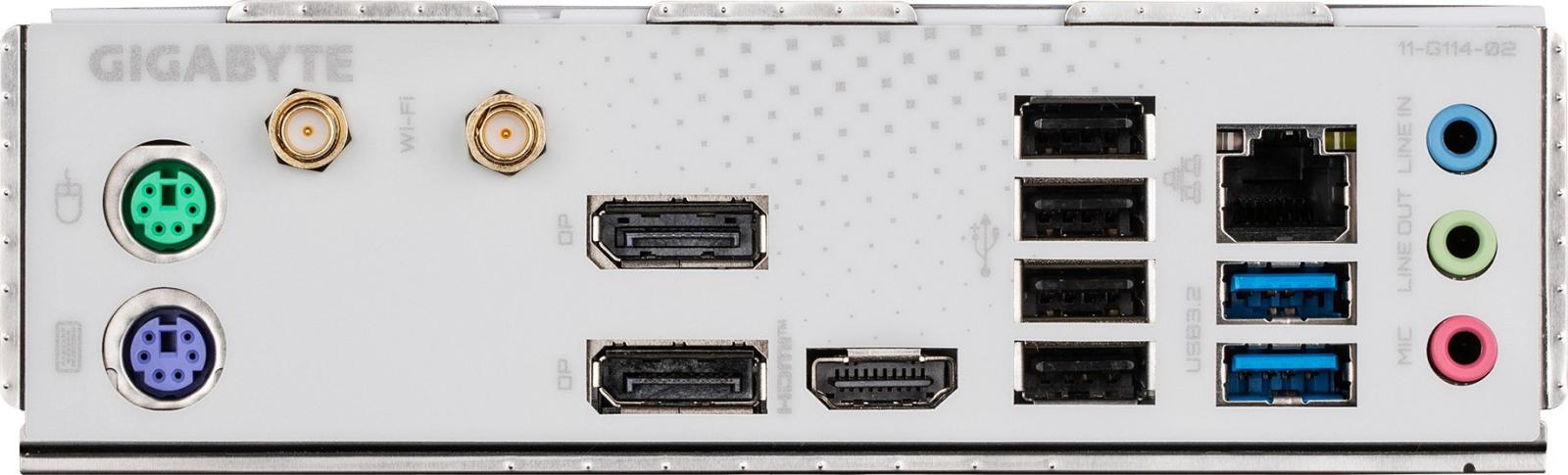

--- Złącza wejścia/wyjścia na tylnym panelu ---
1 x PS/2 port klawiatury
1 x port myszy PS/2
2 x SMA antenna connectors (2T2R)
2 x DisplayPorts
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x port RJ-45
3 x audio jacks
Kontroler I/O
iTE® I/O Controller Chip

--- Monitoring sprzętowy ---
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

--- BIOS ---
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

--- Inne funkcje ---
Support for GIGABYTE Control Center (GCC)
*Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

--- Dołączone oprogramowanie ---
Norton® Internet Security (wersja OEM)
LAN bandwidth management software

--- System operacyjny ---
Support for Windows 11 64-bit
Support for Windows 10 64-bit

--- Wymiary ---
Micro ATX Form Factor; 24.4cm x 22.0cm
