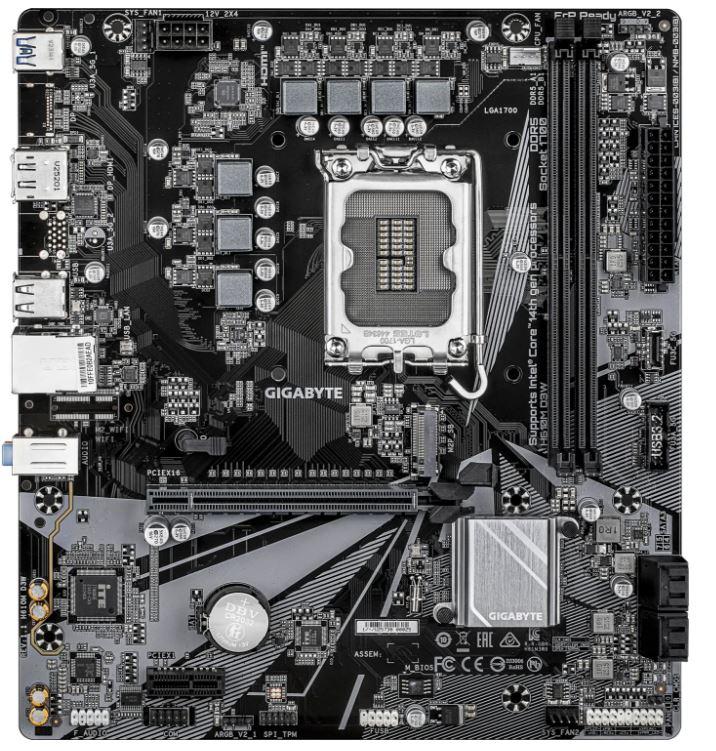

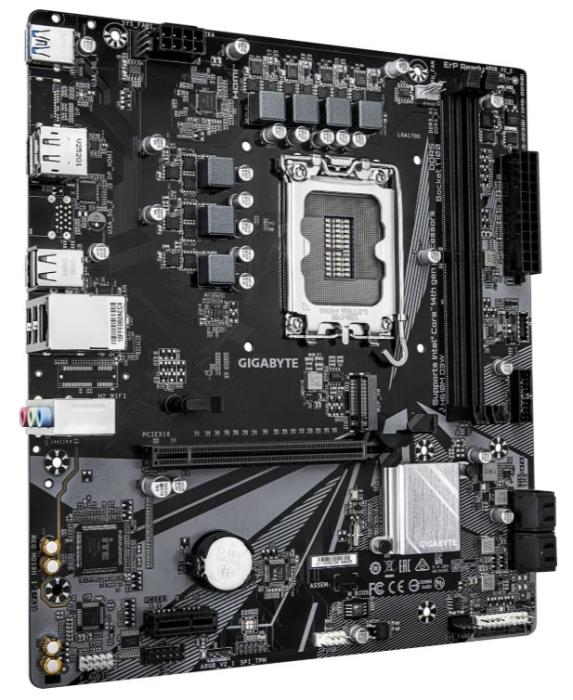

Gigabyte H610M D3W (Intel H610) [S1700, 2xDDR5 do 5600MHz, (HDMI2.1, DP 1.2) (1xM.2, 1xPCIe 4.0 x16, 1xPCIe 3.0 x1), micro ATX]

--- Procesor ---
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
Wielkość pamięci cache L3 różni się w zależności od procesora
(Go to GIGABYTE's website for the latest CPU support list)

--- Chipset ---
Intel® H610 Express Chipset

--- Pamięć ---
14th and 13th Generation Intel® Core™ i9/i7 Processors:
Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
Support for DDR5 4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dwukanałowa obsługa pamięci
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Obsługa pamięci Extreme Memory Profile (XMP)
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

--- Wyjścia graficzne ---
Integrated Graphics Processor - Intel® HD Graphics support
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)

--- Układ audio ---
Realtek® audio codec
Obsługa High Definition Audio
Ilość kanałów audio 2/4/5.1/7.1
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

--- LAN ---
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

--- Złącza rozszerzeń ---
CPU
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

--- Złącza SATA ---
Chipset
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors

--- USB ---
Chipset
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports available through the internal USB header
Chipset+USB 2.0 Hub
4 x USB 2.0/1.1 ports on the back panel

--- Wewnętrzne złącza wejścia/wyjścia ---
1 x 24-pinowe złącze zasilania ATX
1 x złącze zasilania 8-pin 12V
1 x złącze wentylatora procesora
2 x złącza wentylatora systemowego
2 x addressable RGB Gen2 LED strip headers
1 x M.2 Socket 3 connector
4 złącza SATA 6Gb/s
1 x złącze panelu przedniego
1 x złącze front panel audio
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
TPM function is optional due to different regional policy
1 x złącze portu szeregowego
1 x złącze pinowe Clear CMOS

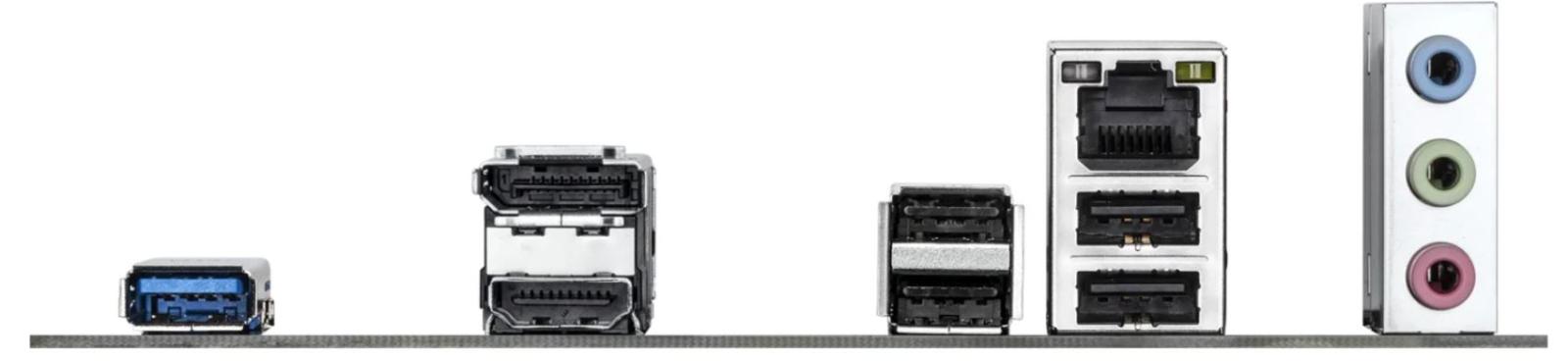

--- Złącza wejścia/wyjścia na tylnym panelu ---
1 x DisplayPort*
1 x HDMI port*
1 x USB 3.2 Gen 1 port
4 x USB 2.0/1.1 ports
1 x port RJ-45
3 x audio jacks
* Actual support may vary by CPU.

--- Kontroler I/O ---
iTE® I/O Controller Chip

--- Monitoring sprzętowy ---
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

--- BIOS ---
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

--- Inne funkcje ---
Support for GIGABYTE Control Center (GCC)
*Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Obsługa Q-Flash
Support for Smart Backup

--- Bundled Software ---
Norton® Internet Security (wersja OEM)

--- System operacyjny ---
Support for Windows 11 64-bit
Support for Windows 10 64-bit

--- Wymiary ---
Micro ATX Form Factor; 24.4cm x 22.0cm
