Gigabyte B860 AORUS ELITE WIFI7 ICE [S1851, 4xDDR5 do 9200MHz, (HDMI 2.1, DP 2.1) (3xM.2, 1xPCIe 5.0 x16, 2xPCIe 4.0 x16 (x1), WiFi 7, BT 5.4, ATX]

--- Procesor ---
LGA1851 socket: Support for Intel® Core™ Ultra Processors
Wielkość pamięci cache L3 różni się w zależności od procesora
(Go to GIGABYTE's website for the latest CPU support list)

--- Chipset ---
Intel® B860 Express Chipset

--- Pamięć ---

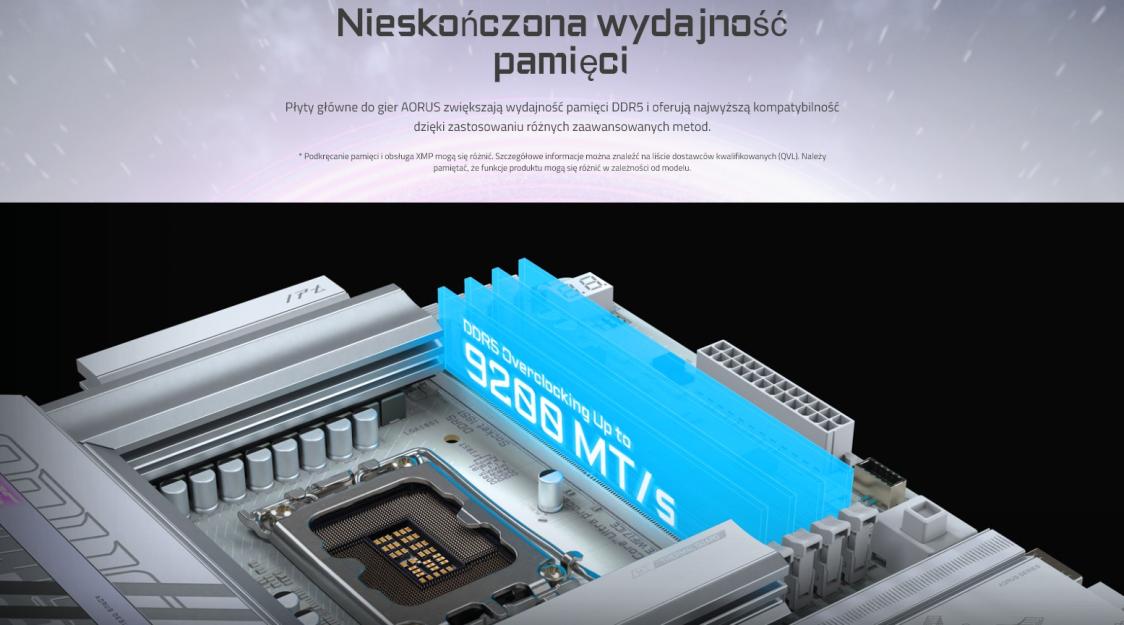

Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dwukanałowa obsługa pamięci
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Obsługa pamięci Extreme Memory Profile (XMP)
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

--- Wyjścia graficzne ---
Integrated Graphics Processor - Intel® HD Graphics support
1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4.
(Graphics specifications may vary depending on CPU support.)
Support for up to quad-display at the same time

--- Układ audio ---
Realtek® audio codec
Obsługa High Definition Audio
Ilość kanałów audio 2/4/5.1/7.1
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Wsparcie dla S/PDIF Out

--- LAN ---
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

--- Moduł komunikacji bezprzewodowej ---
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0)
802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.4
Support for 11be 160MHz wireless standard
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1)
802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.4
Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
** Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations.

--- Złącza rozszerzeń ---
CPU
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset
2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Złącza SATA
CPU
1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Chipset
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

--- USB ---
CPU
1 x USB4® USB Type-C® port on the back panel
Chipset
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub
4 x USB 3.2 Gen 1 ports on the back panel
Chipset+2 USB 2.0 Hubs
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

--- Wewnętrzne złącza wejścia/wyjścia ---
1 x 24-pin ATX main power connector
2 x 8-pinowe złącza zasilania ATX 12V
1 x złącze wentylatora procesora
1 x CPU fan/water cooling pump header
3 x złącza pinowe wentylatorów
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 złącza SATA 6Gb/s
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
Dostępność funkcji TPM zależy od regionalnej polityki produkcyjnej.
1 x HDMI port (Uwaga)
1 x przycisk POWER ON
1 x przycisk RESET
1 x Q-Flash Plus button
1 x reset jumper
1 x złącze pinowe Clear CMOS
(Note) Actual support may vary by CPU.

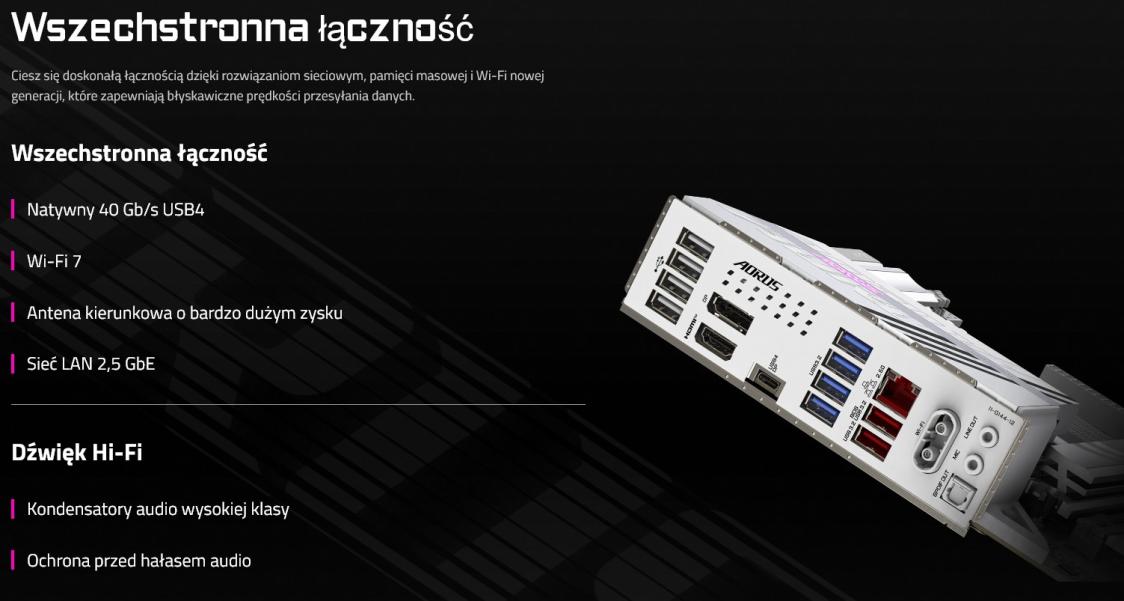

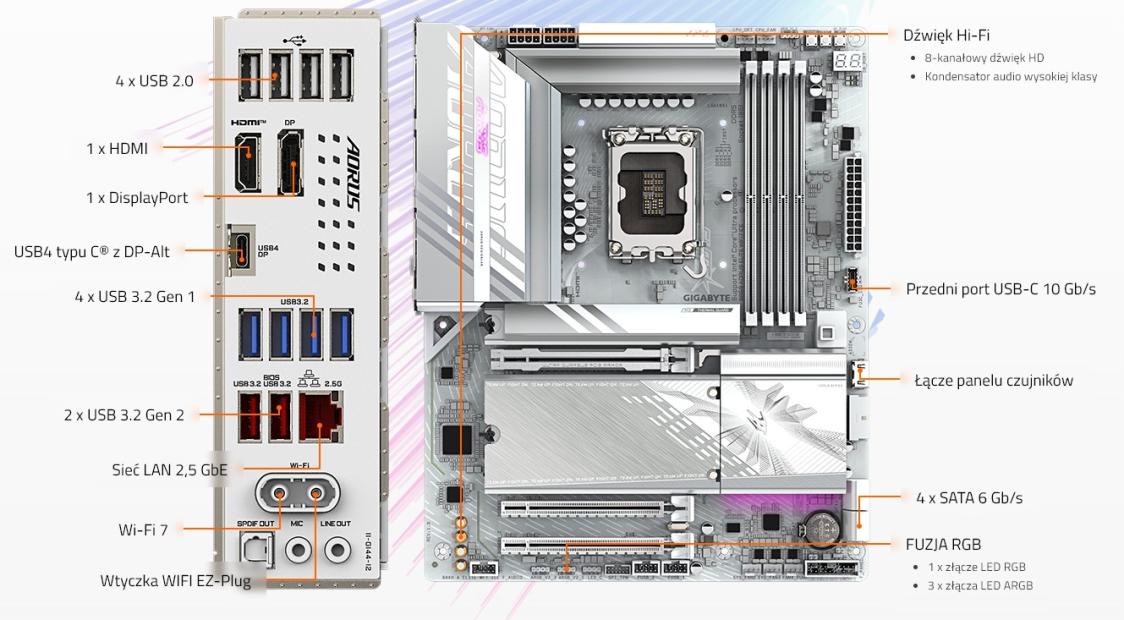

--- Złącza wejścia/wyjścia na tylnym panelu ---
1 x USB4® USB Type-C® port (DisplayPort (Uwaga))
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x DisplayPort (Uwaga)
1 x HDMI port (Uwaga)
2 x antenna connectors (2T2R)
1 x port RJ-45
1 x optical S/PDIF Out connector
2 x audio jacks
(Note) Actual support may vary by CPU.

--- Kontroler I/O ---
iTE® I/O Controller Chip

--- Monitoring sprzętowy ---
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

--- BIOS ---
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

--- Inne funkcje ---
Support for GIGABYTE Control Center (GCC)
*Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Obsługa Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

--- Bundled Software ---
Norton® Internet Security (wersja OEM)
LAN bandwidth management software

--- System operacyjny ---
Support for Windows 11 64-bit

--- Wymiary ---
Format ATX; 30.5cm x 24.4cm
