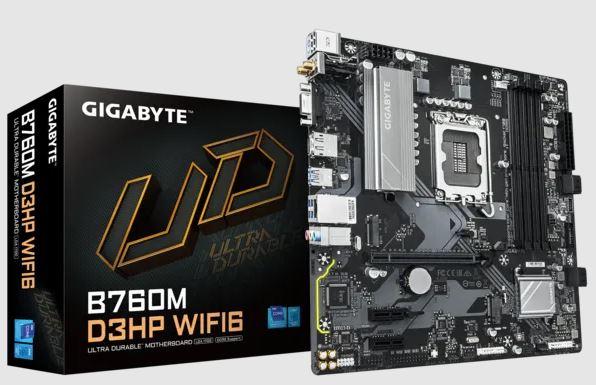

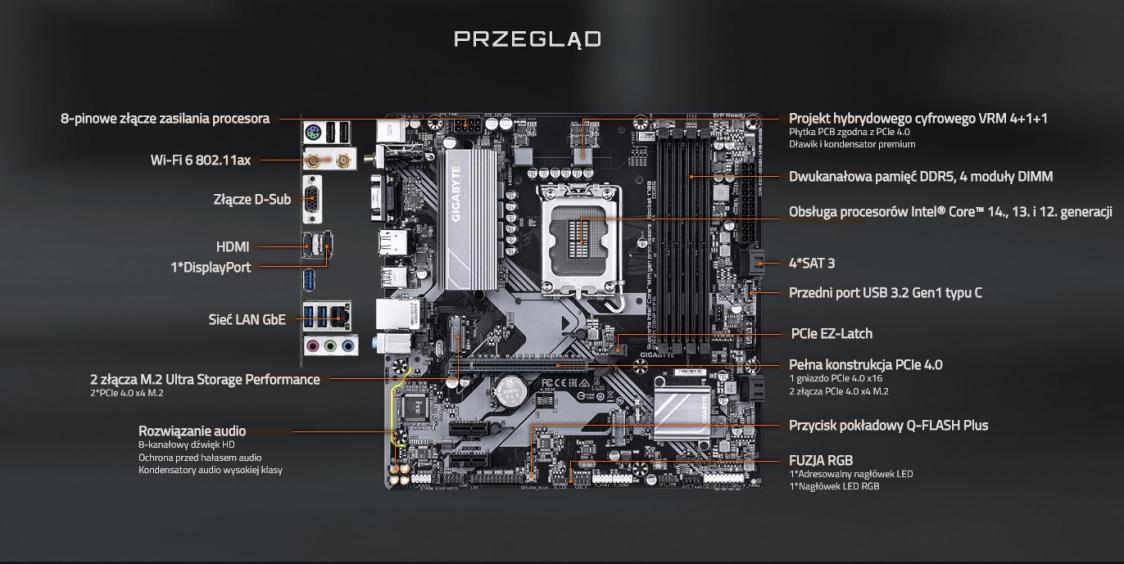

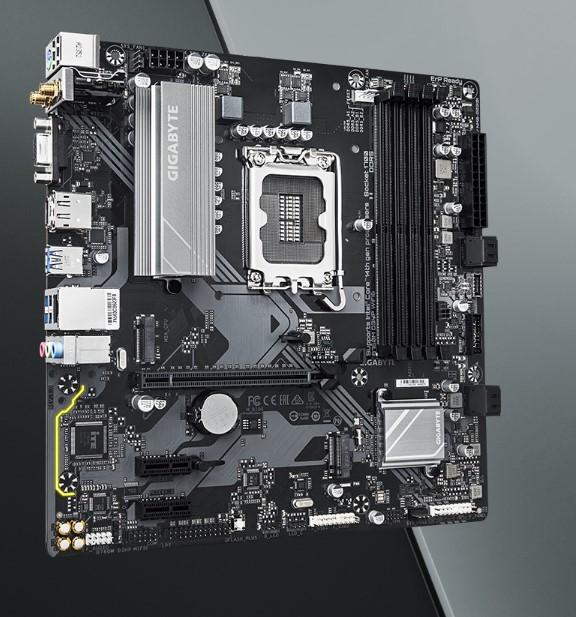

Gigabyte B760M D3HP WIFI6 (Intel B760) [S1700, 4xDDR5 do 5600MHz, (VGA, HDMI 2.1, DP 1.2) (2xM.2, 1xPCIe 4.0 x16, 2xPCIe 3.0 x1), WIFI 6, BT 5.3, micro ATX]

--- Procesor ---
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Wielkość pamięci cache L3 różni się w zależności od procesora
(Go to GIGABYTE's website for the latest CPU support list)

--- Chipset ---
Intel® B760 Express Chipset

--- Pamięć ---
14th and 13th Generation Intel® Core™ i9/i7 Pocessors:
Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Support for DDR5 4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dwukanałowa obsługa pamięci
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Obsługa pamięci Extreme Memory Profile (XMP)
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

--- Wyjścia graficzne ---
Integrated Graphics Processor - Intel® HD Graphics support
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time

--- Układ audio ---

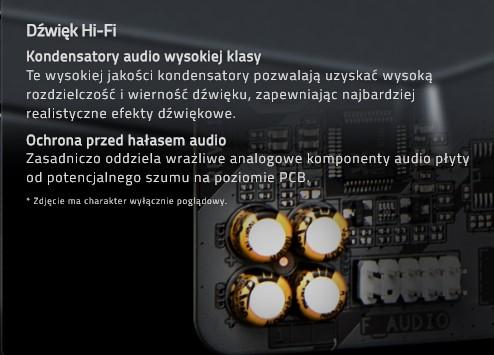

Realtek® audio codec
Obsługa High Definition Audio
Ilość kanałów audio 2/4/5.1/7.1
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Wsparcie dla S/PDIF Out

--- LAN ---
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

--- Moduł komunikacji bezprzewodowej ---
Realtek® Wi-Fi 6 RTL8851BE
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 80MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

--- Złącza rozszerzeń ---
CPU
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Złącza SATA
CPU
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

--- USB ---
Chipset
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub
4 x USB 2.0/1.1 ports available through the internal USB headers

--- Wewnętrzne złącza wejścia/wyjścia ---
1 x 24-pinowe złącze zasilania ATX
1 x złącze zasilania 8-pin 12V
1 x złącze wentylatora procesora
3 x złącza pinowe wentylatorów
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 złącza SATA 6Gb/s
1 x złącze panelu przedniego
1 x złącze front panel audio
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x złącza USB 2.0/1.1
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
Dostępność funkcji TPM zależy od regionalnej polityki produkcyjnej.
1 x złącze portu szeregowego
1 x złącze portu równoległego
1 x złącze pinowe S/PDIF Out
1 x Q-Flash Plus button
1 x reset jumper
1 x złącze pinowe Clear CMOS

--- Złącza wejścia/wyjścia na tylnym panelu ---
2 x port USB 2.0/1.1
1 x port klawiatury/myszy PS/2
2 x SMA antenna connectors (1T1R)
1 x port D-Sub*
1 x DisplayPort*
1 x HDMI port*
3 x USB 3.2 Gen 1 ports
1 x port RJ-45
3 x audio jacks
* Actual support may vary by CPU.

--- Kontroler I/O ---
iTE® I/O Controller Chip

--- Monitoring sprzętowy ---
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

--- BIOS ---
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

--- Inne funkcje ---
Support for GIGABYTE Control Center (GCC)
*Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Obsługa Q-Flash
Support for Q-Flash Plus

--- Bundled Software ---
Norton® Internet Security (wersja OEM)
LAN bandwidth management software

--- System operacyjny ---
Support for Windows 11 64-bit
Support for Windows 10 64-bit

--- Wymiary ---
Format Micro ATX; 24.4cm x 17.4cm
