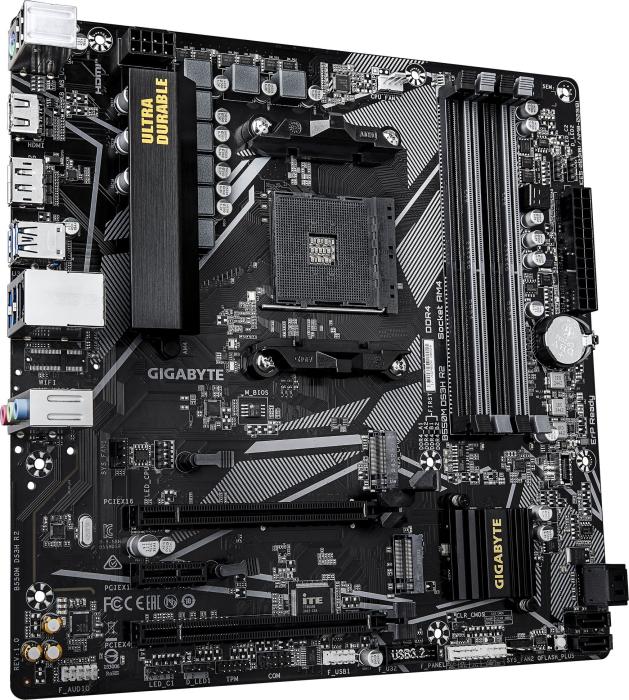

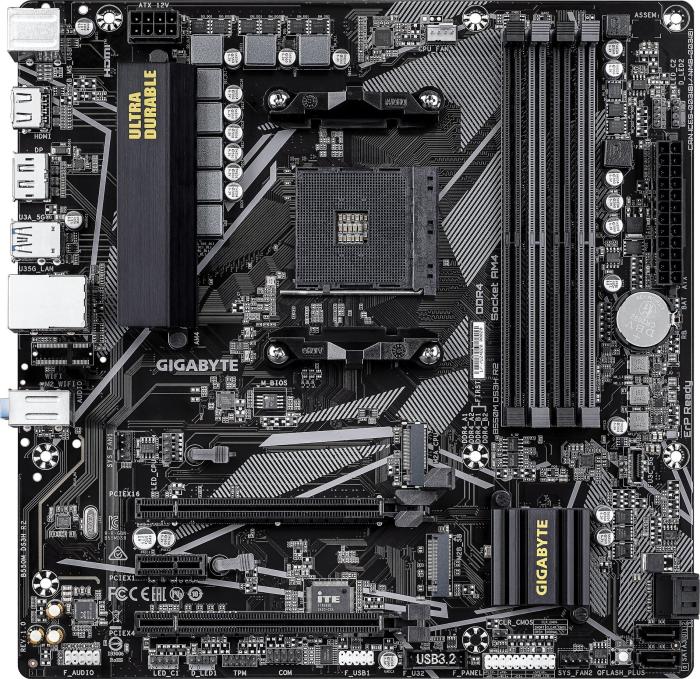

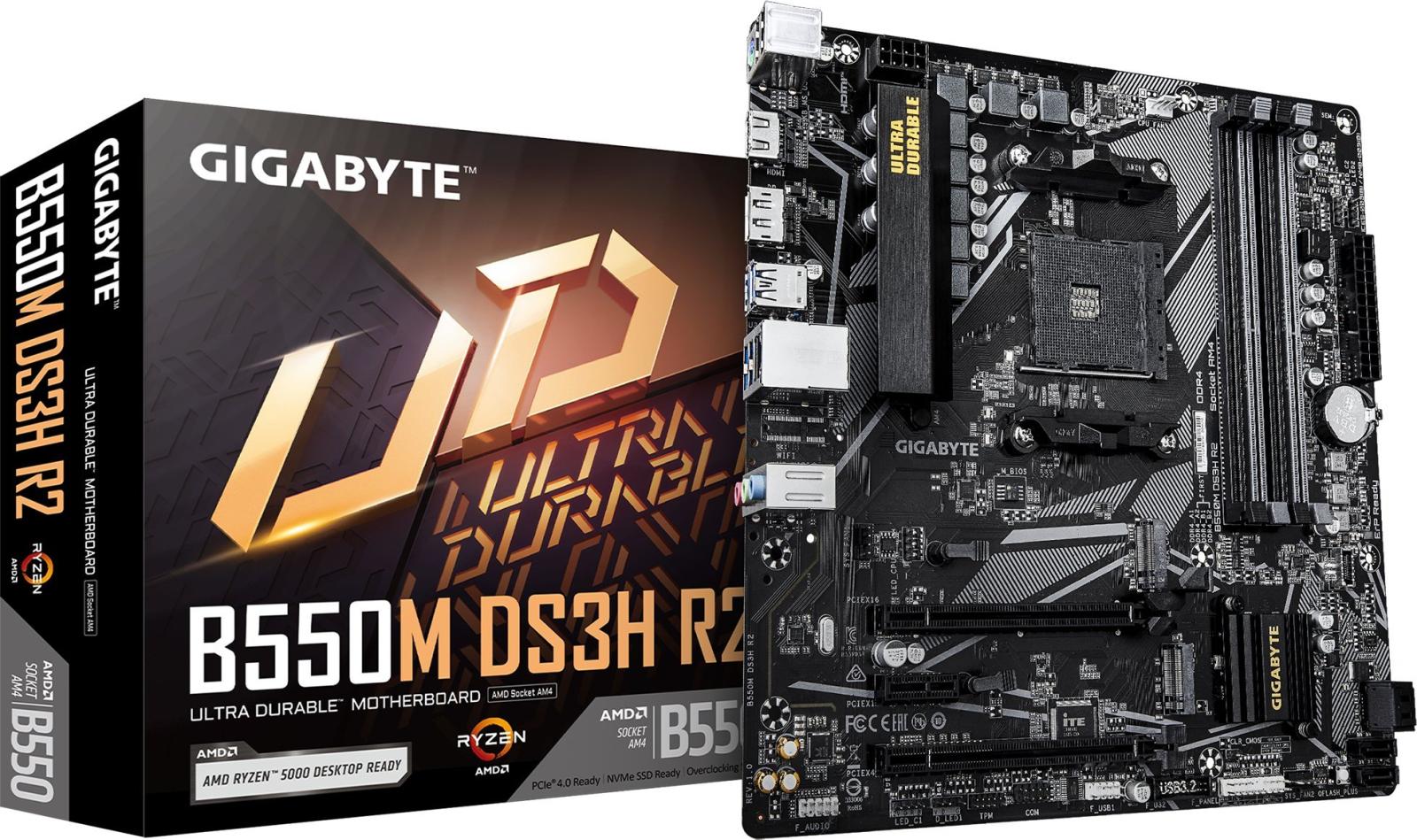

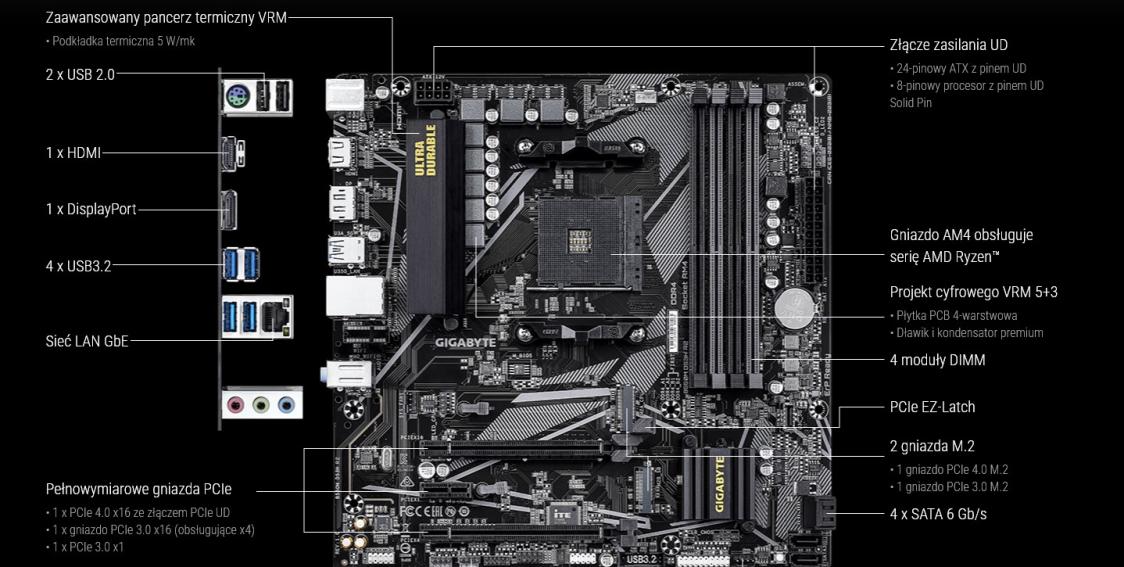

Gigabyte B550M DS3H R2 (AMD B550) [AM4, 4xDDR4 do 4733MHz, (HDMI 2.1, DP 1.4) (2xM.2, 1xPCIe 4.0 x16, 1xPCIe 3.0 x16 (x4), 1xPCIe 3.0 x1), micro ATX]

--- Procesor ---
AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list)

--- Chipset ---
AMD B550

--- Pamięć ---
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules
Dwukanałowa obsługa pamięci
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Obsługa pamięci Extreme Memory Profile (XMP)
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

--- Wyjścia graficzne ---
Integrated Graphics Processor - AMD Radeon™ Graphics support
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Maximum shared memory of 16 GB

--- Układ audio ---
Realtek® ALC1220 codec
* The back panel line out jack supports DSD audio.
Obsługa High Definition Audio
Ilość kanałów audio 2/4/5.1/7.1
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

--- LAN ---
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

--- Złącza rozszerzeń ---

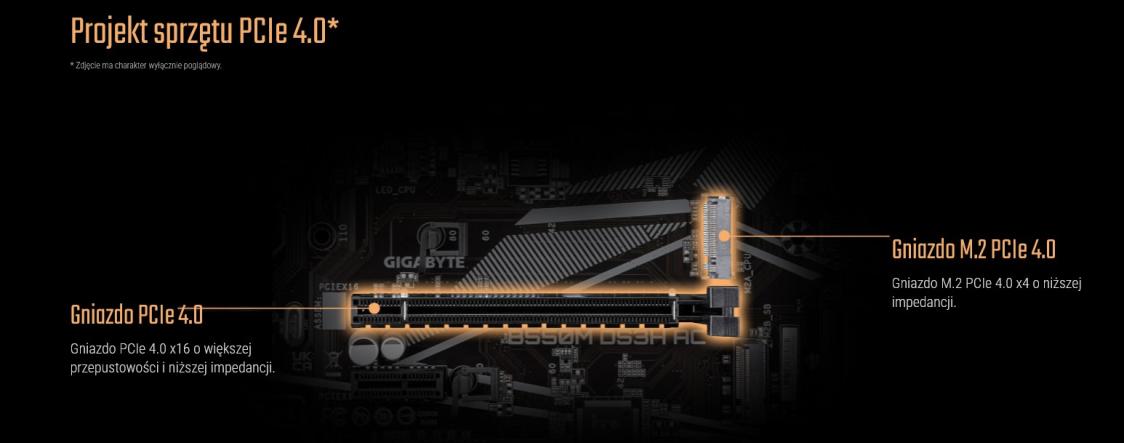

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset
1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4
1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1

--- Złącza SATA ---
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs
4 złącza SATA 6Gb/s
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

--- USB ---
CPU
4 x USB 3.2 Gen 1 ports on the back panel
Chipset
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

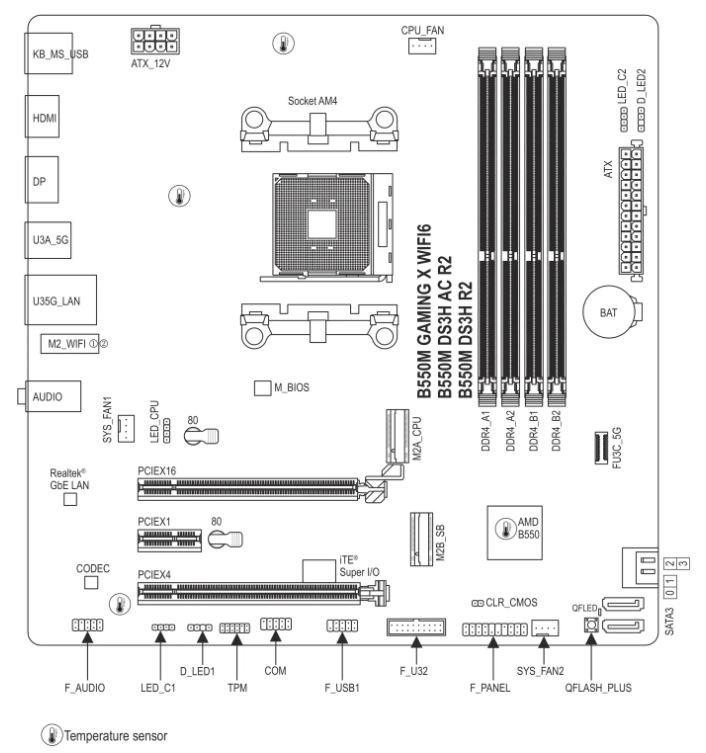

--- Wewnętrzne złącza wejścia/wyjścia ---
1 x 24-pinowe złącze zasilania ATX
1 x złącze zasilania 8-pin 12V
1 x złącze wentylatora procesora
2 x złącza wentylatora systemowego
2 x Addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 złącza SATA 6Gb/s
1 x złącze panelu przedniego
1 x złącze front panel audio
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Dostępność funkcji TPM zależy od regionalnej polityki produkcyjnej.
1 x złącze portu szeregowego
1 x złącze pinowe Clear CMOS
1 x Q-Flash Plus button

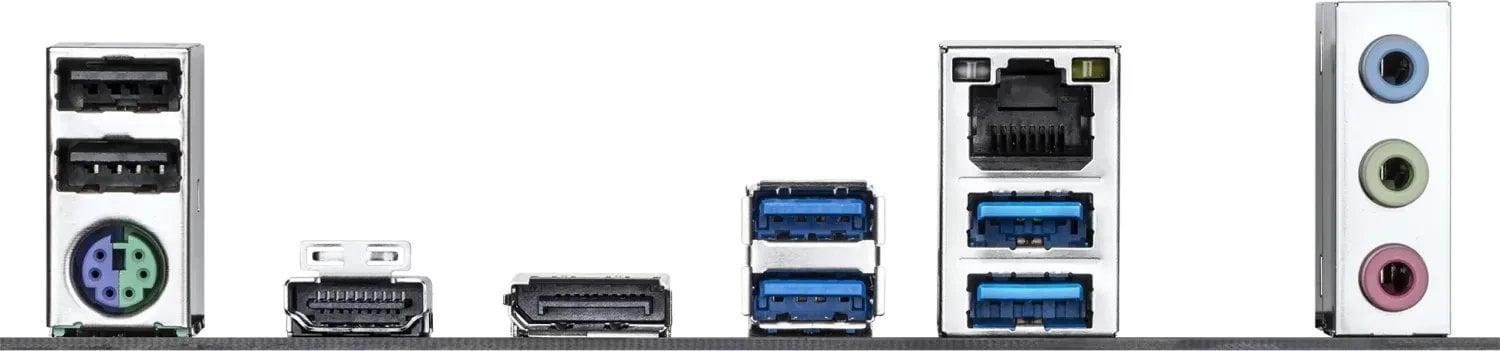

--- Złącza wejścia/wyjścia na tylnym panelu ---
2 x port USB 2.0/1.1
1 x port klawiatury/myszy PS/2
1 x HDMI port (Uwaga)
1 x DisplayPort (Uwaga)
4 x USB 3.2 Gen 1 ports
1 x port RJ-45
3 x audio jacks
(Note) Actual support may vary by CPU.

--- Kontroler I/O ---
iTE® I/O Controller Chip
Monitoring sprzętowy
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning

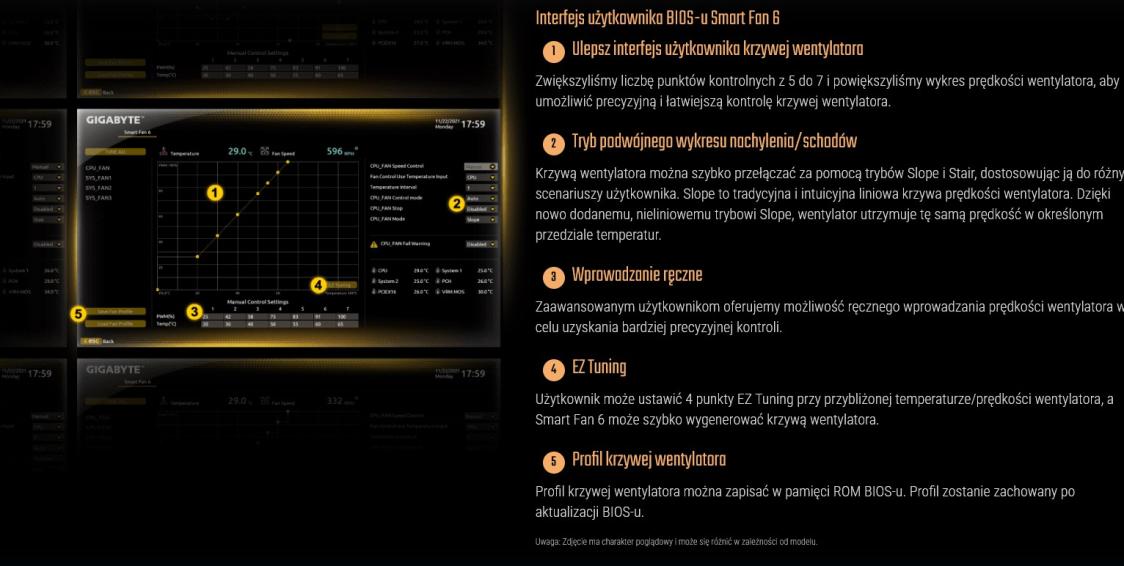

Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

--- BIOS ---
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

--- Inne funkcje ---
Wsparcie dla APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Obsługa @ BIOS ™
EasyTune
RGB Fusion
Smart Backup
System Information Viewer
Obsługa Q-Flash
Support for Q-Flash Plus

--- Dołączone oprogramowanie ---
Norton® Internet Security (wersja OEM)
LAN bandwidth management software

--- System operacyjny ---
Support for Windows 11 64-bit
Support for Windows 10 64-bit

--- Wymiary ---
Format Micro ATX; 24.4cm x 17.4cm
