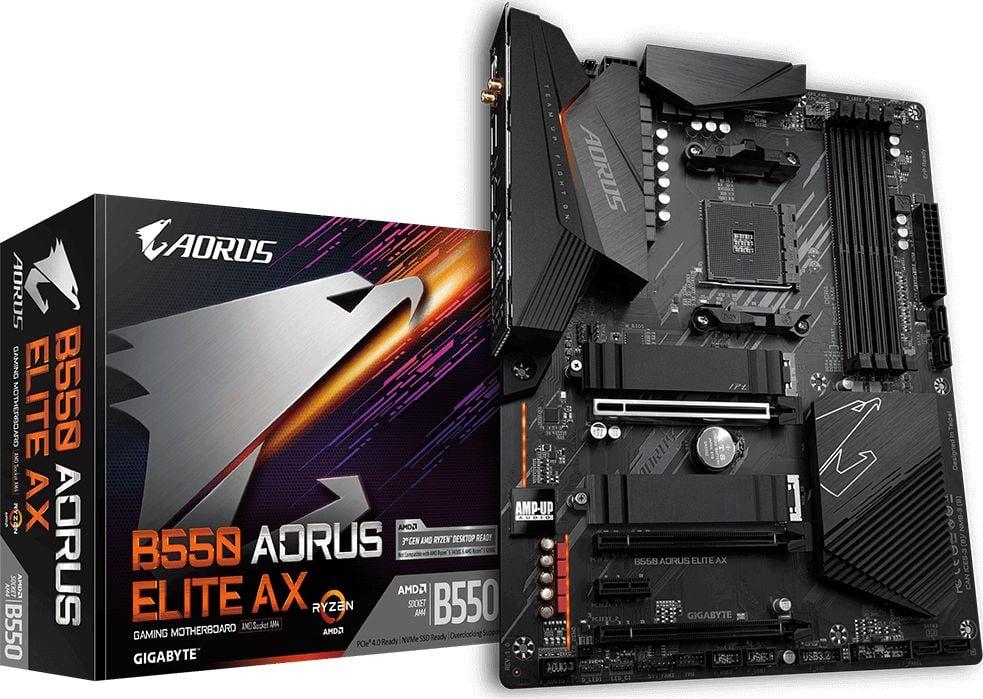

Gigabyte B550 AORUS ELITE AX (AMD B550) [AM4, 4xDDR4 do 4733MHz, (HDMI 2.1, DP 1.4) (2xM.2, 1xPCIe 4.0 x16, 2xPCIe 3.0 x16 (x1), 1xPCIe 3.0 x1), WiFi 6, BT 5.3, micro ATX]

--- Procesor ---
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series, Ryzen™ 3000 Series and Ryzen™ 3000 G-Series Processors
(Please refer "CPU Support List" for more information.)

--- Chipset ---
AMD B550

--- Pamięć ---
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dwukanałowa obsługa pamięci
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC Memory (ECC mode) support varies by CPU.
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Obsługa pamięci Extreme Memory Profile (XMP)
(Please refer "Memory Support List" for more information.)

--- Wyjścia graficzne ---
Wyjścia graficzne
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB

--- Układ audio ---
Realtek® ALC1200 codec
Obsługa High Definition Audio
Ilość kanałów audio 2/4/5.1/7.1
Wsparcie dla S/PDIF Out

--- LAN ---
Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

--- Moduł komunikacji bezprzewodowej ---
Intel® Wi-Fi 6 AX200
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.

--- Złącza rozszerzeń ---
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
- Supporting PCIe 3.0 x2 mode
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
* Actual support may vary by AMD CPU's specification.
AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
* W przypadku instalacji jednej karty graficznej na złączu PCI Express należy upewnić się, że karta podłączana jest do złącza PCIEX16 zapewniającego optymalną wydajność.

--- Złącza SATA ---
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
- AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
- Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
- Support for RAID 0, RAID 1, and RAID 10

--- USB ---
CPU
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
Chipset
2 x USB 3.2 Gen 1 ports on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub
4 x USB 2.0/1.1 ports available through the internal USB headers

--- Wewnętrzne złącza wejścia/wyjścia ---
1 x 24-pinowe złącze zasilania ATX
1 x złącze zasilania 8-pin 12V
2 x M.2 Socket 3 connectors
4 złącza SATA 6Gb/s
1 x złącze wentylatora procesora
1 x water cooling CPU fan header
3 x złącza pinowe wentylatorów
1 x CPU cooler LED strip/RGB LED strip header
2 x Addressable LED strip headers
2 x RGB LED strip headers
1 x złącze panelu przedniego
1 x złącze front panel audio
1 x USB 3.2 Gen 1 header
2 x złącza USB 2.0/1.1
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Dostępność funkcji TPM zależy od regionalnej polityki produkcyjnej.
1 x złącze pinowe Clear CMOS
* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

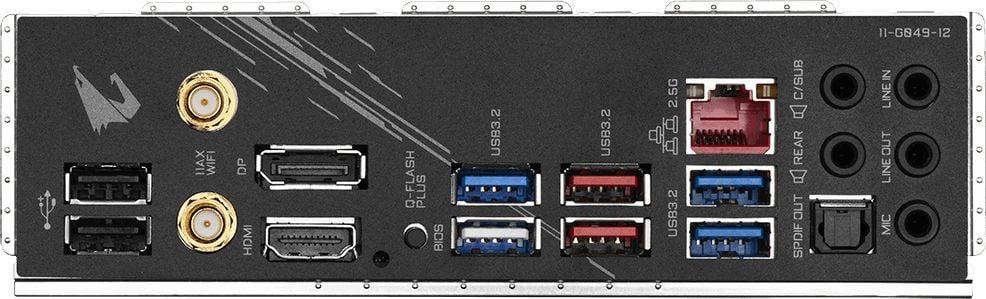

--- Złącza wejścia/wyjścia na tylnym panelu ---
1 x DisplayPort
1 x HDMI port
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x port USB 2.0/1.1
1 x Q-Flash Plus button
1 x port RJ-45
1 x optical S/PDIF Out connector
5 x audio jacks

--- Kontroler I/O ---
iTE® I/O Controller Chip

--- Monitoring sprzętowy ---
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

--- BIOS ---
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

--- Inne funkcje ---
Wsparcie dla APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Obsługa @ BIOS ™
EasyTune
Fast Boot
Game Boost
Obsługa ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Obsługa Q-Flash
wsparcie dla Xpress Install

--- Dołączone oprogramowanie ---
Norton® Internet Security (wersja OEM)
Realtek® 8125 Gaming LAN Bandwidth Control Utility

--- System operacyjny ---
Support for Windows 11 64-bit
Support for Windows 10 64-bit

--- Wymiary ---
Format ATX; 30.5cm x 24.4cm
