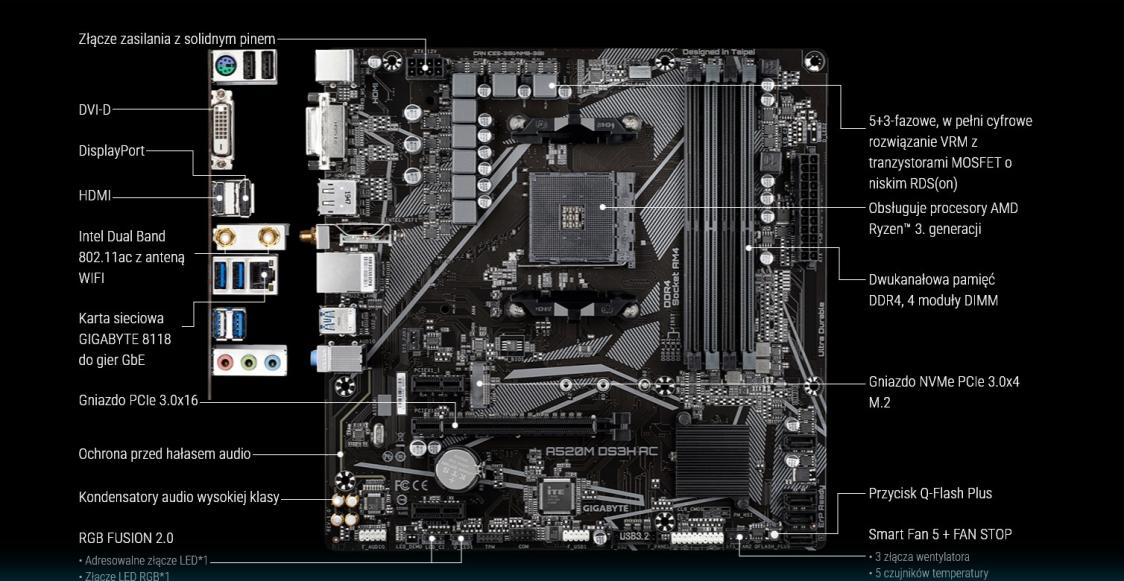

Gigabyte A520M DS3H AC (AMD A520) [AM4, 4xDDR4 do 4733MHz, (DVI, HDMI 2.1, DP 1.4) (1xM.2, 1xPCIe 3.0 x16, 2xPCIe 3.0 x1), WiFi 5, BT 4.2, micro ATX]

--- Procesor ---
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors

--- Chipset ---
AMD A520

--- Pamięć ---
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
AMD Ryzen™ 5000 G-series / Ryzen™ 5000 Series/ 3rd Generation AMD Ryzen™ processors:
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dwukanałowa obsługa pamięci
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Obsługa pamięci Extreme Memory Profile (XMP)
(Please refer "Memory Support List" for more information.)

--- Wyjścia graficzne ---
Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 16 GB

--- Układ audio ---
Realtek® audio codec
Obsługa High Definition Audio
Ilość kanałów audio 2/4/5.1/7.1
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

--- LAN ---
Realtek® GbE LAN chip (1 Gbps/100 Mbps)

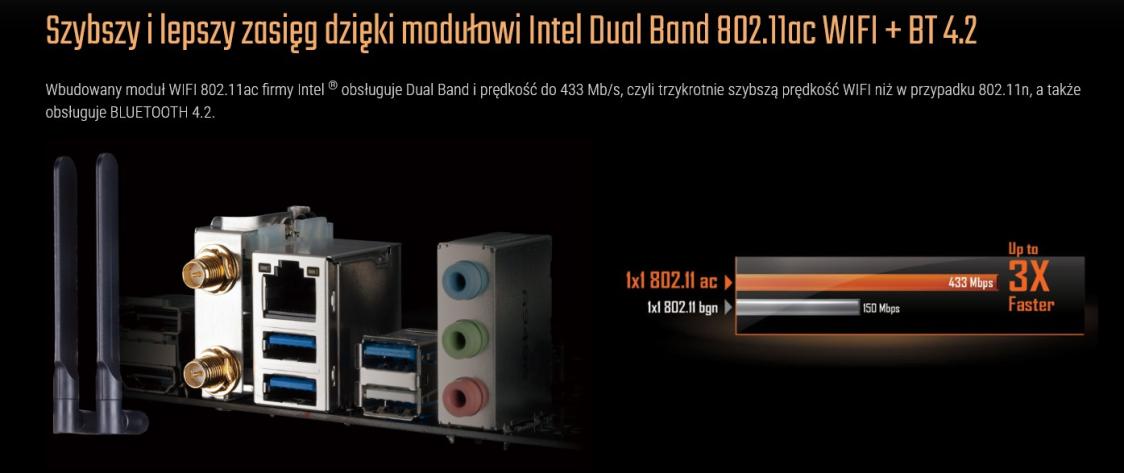

--- Moduł komunikacji bezprzewodowej ---
Intel® Dual Band Wireless-AC 3168 (For PCB rev. 1.0, 1.2, 1.3)
WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2
Support for 11ac wireless standard and up to 433 Mbps data rate
Intel® Wireless-AC 9260 (For PCB rev. 1.1)
WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.1
Support for 11ac 160MHz wireless standard and up to 1.73 Mbps data rate.
AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) (For PCB rev. 1.4)
WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2
Support for 11ac wireless standard and up to 433 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)

--- Złącza rozszerzeń ---
CPU
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset
2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)

--- Złącza SATA ---
CPU
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

--- USB ---
CPU
4 x USB 3.2 Gen 1 ports on the back panel
Chipset
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

--- Wewnętrzne złącza wejścia/wyjścia ---
1 x 24-pinowe złącze zasilania ATX
1 x złącze zasilania 8-pin 12V
1 x złącze wentylatora procesora
2 x złącza wentylatora systemowego
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 złącza SATA 6Gb/s
1 x złącze panelu przedniego
1 x złącze front panel audio
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Dostępność funkcji TPM zależy od regionalnej polityki produkcyjnej.
1 x złącze portu szeregowego
1 x złącze pinowe Clear CMOS

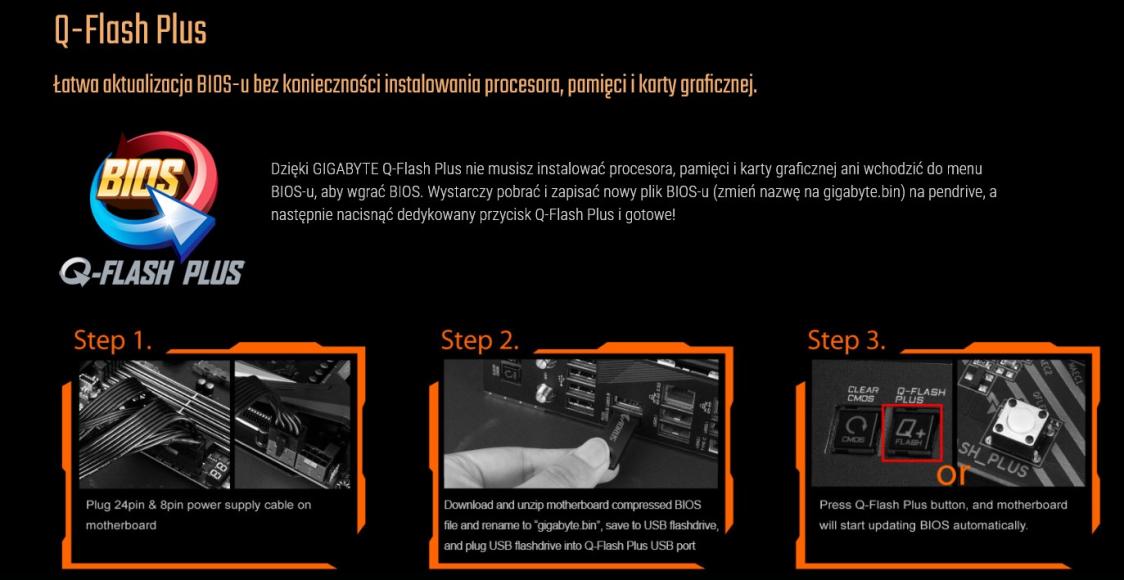

1 x Q-Flash Plus button
* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

--- Złącza wejścia/wyjścia na tylnym panelu ---
1 x port klawiatury/myszy PS/2
1 x port DVI-D
1 x DisplayPort
1 x HDMI port
2 x SMA antenna connectors (1T1R)
4 x USB 3.2 Gen 1 ports
2 x port USB 2.0/1.1
1 x port RJ-45
3 x audio jacks

--- Kontroler I/O ---
iTE® I/O Controller Chip

--- Monitoring sprzętowy ---
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

--- BIOS ---
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

--- Inne funkcje ---
Wsparcie dla APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Obsługa @ BIOS ™
EasyTune
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Obsługa Q-Flash

--- Dołączone oprogramowanie ---
Norton® Internet Security (wersja OEM)
LAN bandwidth management software

--- System operacyjny ---
Support for Windows 11 64-bit
Support for Windows 10 64-bit

--- Wymiary ---
Format Micro ATX; 24.4cm x 17.4cm
