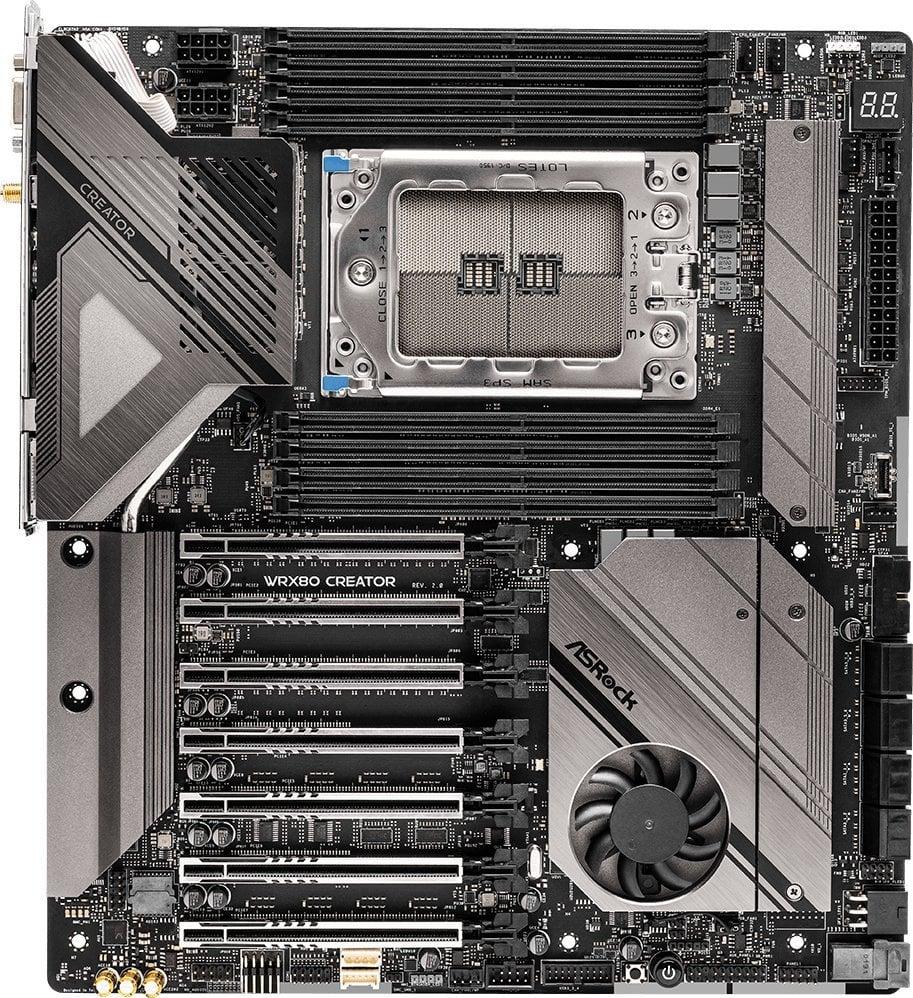

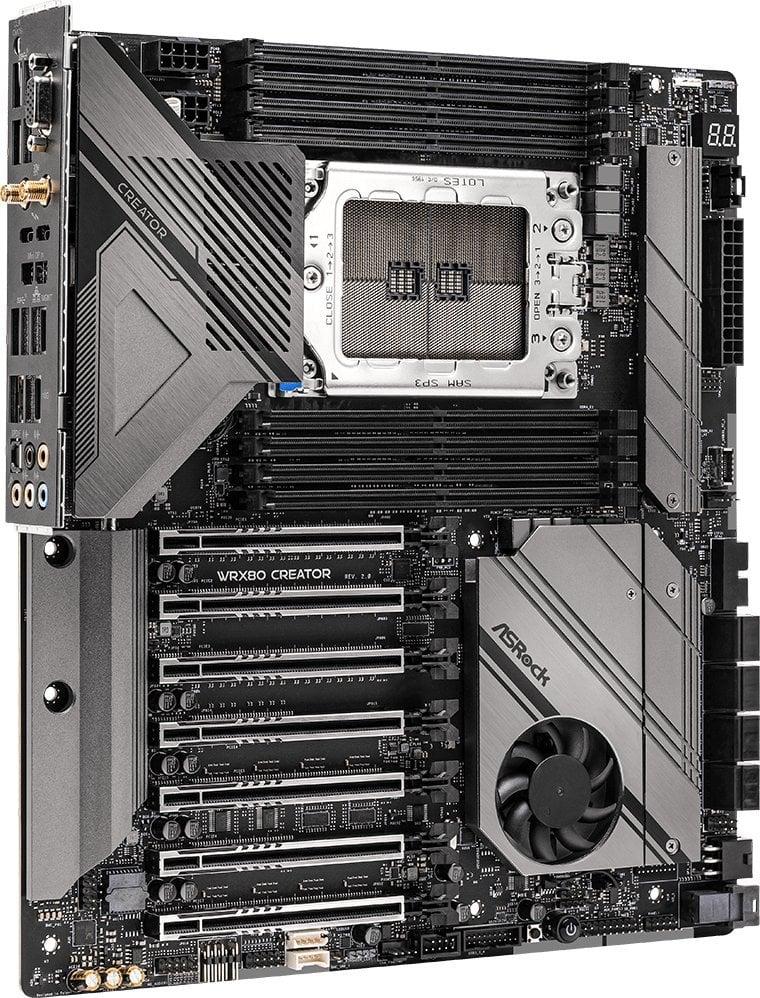

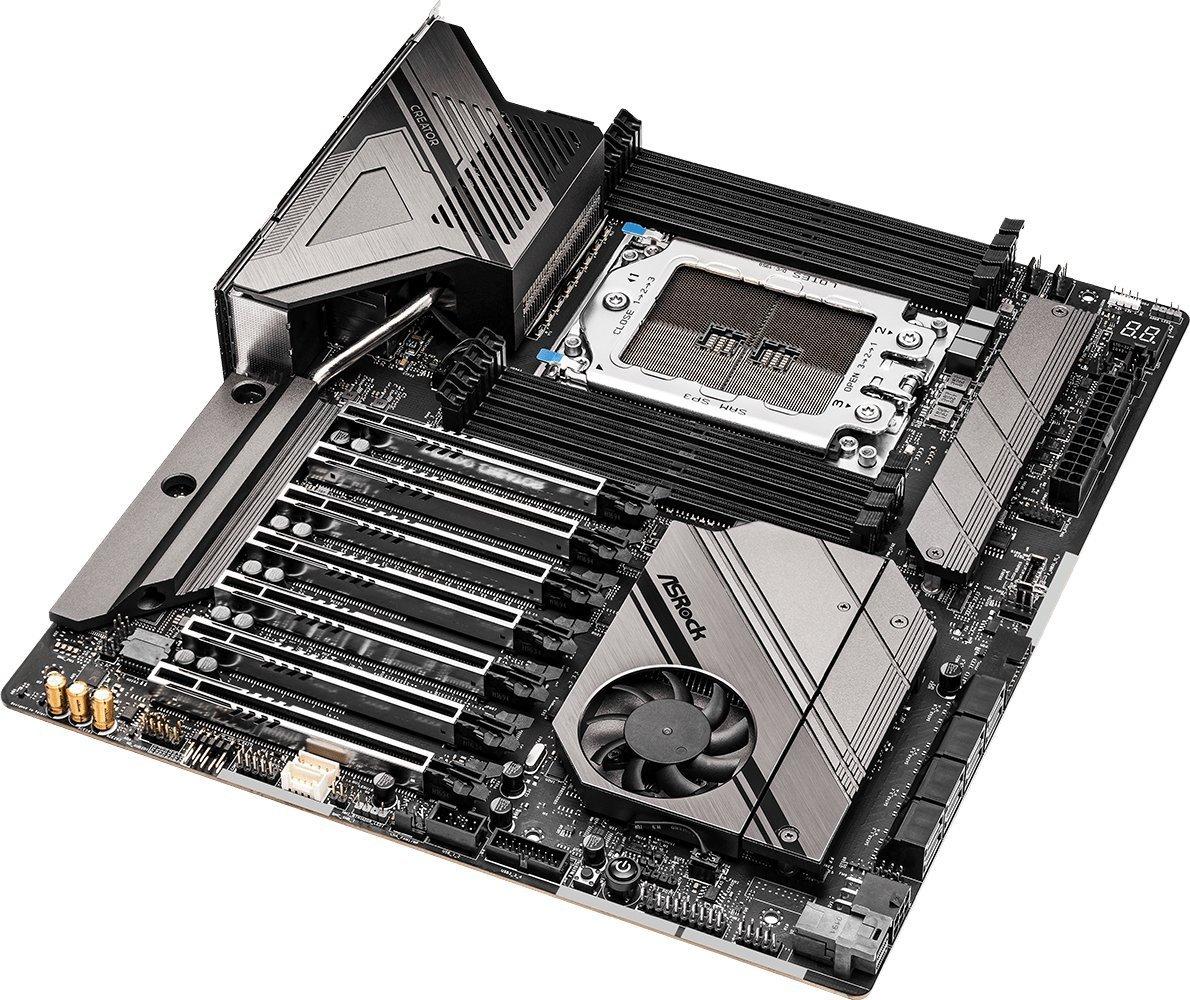

Asrock WRX80 Creator R2.0 (AMD WRX80) [sWRX8, 8xDDR4 do 4400MHz (VGA, 2xmini DP) (2xM.2, 7xPCIe 4.0 x16, WiFi 6E, BT 5.2, ATX]

--- Cechy szczególne ---
ASRock USB 3.2 Gen2
- ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium Power Choke
- 105A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Matte Black PCB
- High Density Glass Fabric PCB
- 14 Layer PCB
- 2oz Copper PCB
Server-Grade Low-Loss PCB
Dual Marvell (Aquantia) 10GbE LAN
802.11ax Wi-Fi 6E
Automatyczny Instalator Sterowników ASRock
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Ultra USB Power
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

--- CPU ---
- Obsługa Socketów AMD sWRX8 dla Procesorów AMD Ryzen™ Threadripper™ PRO Serii 5000WX i 3000WX
- Intersil Digital PWM
- 8 Power Phase design
- Supports ASRock Hyper BCLK Engine III

--- Chipset ---
- AMD WRX80

--- Pamięć ---
- Technologia Ośmio-Kanałowej Pamięci DDR4
- 8 x DDR4 DIMM Slots
- Supports DDR4 ECC & non-ECC, buffered and un-buffered memory (U-DIMM) up to 4400+(OC)*
- Supports DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, buffered and un-buffered memory (R-DIMM and 3DS R-DIMM)*
- Max. capacity of system memory: 2048 GB
- 15μ Gold Contact in DIMM Slots
*Supports DDR4 3200 natively.

--- BIOS ---
- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment

--- Karta graficzna ---
- Kontroler Aspeed AST2500 BMC
- Supports D-Sub with max. Rozdzielczośćup to 1920x1200 @ 60Hz

--- Audio ---
- 7.1 CH HD Audio (Realtek ALC4050H+ALC1220)
- Premium Blu-ray Audio support
- Supports Surge Protection
- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Nahimic Audio

--- LAN ---
2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell (Aquantia) AQC113CS)
- Support Wake-On-LAN
- Supports PXE
1 x Dedicated IPMI (ASPEED AST2500)
- Supports iKVM and vMedia

--- Wireless LAN ---
- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ax
- Supports Dual-Band 2x2 160MHz with extended 6GHz band support*
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth + High speed class II
- Supports MU-MIMO

*Wi-Fi 6E (pasmo 6 GHz) będzie obsługiwane przez system Microsoft® Windows® 11. Dostępność będzie zależeć od regulacji w poszczególnych krajach i regionach. Zostanie ono aktywowane (w obsługiwanych krajach) za pośrednictwem usługi Windows® Update i aktualizacji oprogramowania, gdy tylko będzie dostępne.
Ruter z obsługą 6GHz jest wymagany do obsługi funkcjonalności 6E.

--- Sloty ---
CPU:
- 7 x PCIe 4.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE5/PCIE7 at x16; PCIE4/PCIE6 at x8)*
Chipset:
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15μ Gold Contact in VGA PCIe Slots (PCIE1, PCIE2,PCIE3, PCIE5 and PCIE7)
*Obsługa bootowania z dysków NVMe SSD

--- Magazynowanie ---
CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 8 x SATA3 6.0 Gb/s Connectors
- 1 x U.2 Connector
*Obsługa bootowania z dysków NVMe SSD
Supports ASRock U.2 Kit
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA Dyski
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe Dyski*
*Wymaga dodatkowych kart rozszerzeń M.2 NVMe do obsługi RAID 5

--- Złącza ---
- 1 x SPI TPM Header
- 1 x COM Port Header
- 1 x Intelligent Platform Management Bus Header
- 1 x PSU SMBus Header
- 1 x BMC SMBus Header
- 1 x Auxiliary Panel Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)******
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x 6 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x Right Angle Front Panel Audio Connector*******
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
- 1 x Non Maskable Interrupt Button Header
- 1 x Dr. Debug with LED
- 1 x Power Button with LED
- 1 x Reset Button
*Obsługa Paska LED aż do 12V/3A, 36W
**Support in total up to 5V/3A, 15W LED Strip
***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
******Zalecamy stosowanie zasilacza o maksymalnej mocy 3A na +5VSB.
*******Connect the audio device to either one of the audio connectors.

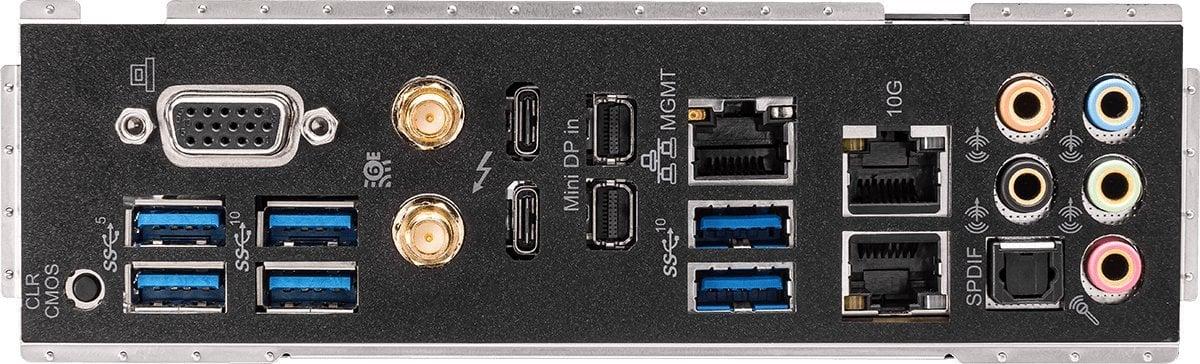

--- Tylny panel ---
- 2 x Antenna Ports
- 1 x D-Sub Port
- 1 x Optical SPDIF Out Port
- 2 x USB 4.0 Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt™ protocol) (Supports ESD Protection)*
- 2 x Mini DisplayPort Input Ports(For Thunderbolt)**
- 4 x USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection)***
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x RJ45 Dedykowana sieć IPMI LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Button
- HD Audio Jacks: Rear Speaker / Central / Line in / Front Speaker / Microphone (Gold Audio Jacks)
*Supports USB-PD 3.0 9V/3A(27W) and 5V/3A(15W)
** Please choose regular mini DisplayPort to DisplayPort adapter Cables instead of right angled ones if you use two mini DisplayPort input ports simultaneously.
***Ultra USB Power is supported on USB31_1_2 ports.
ACPI wake-up function is not supported on USB31_1_2 ports.

--- Oprogramowanie i UEFI ---
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC*
UEFI
- ASRock Full HD UEFI
- ASRock Funkcja Instant Flash
*Te narzędzia można pobrać z Live Update & APP Shop.

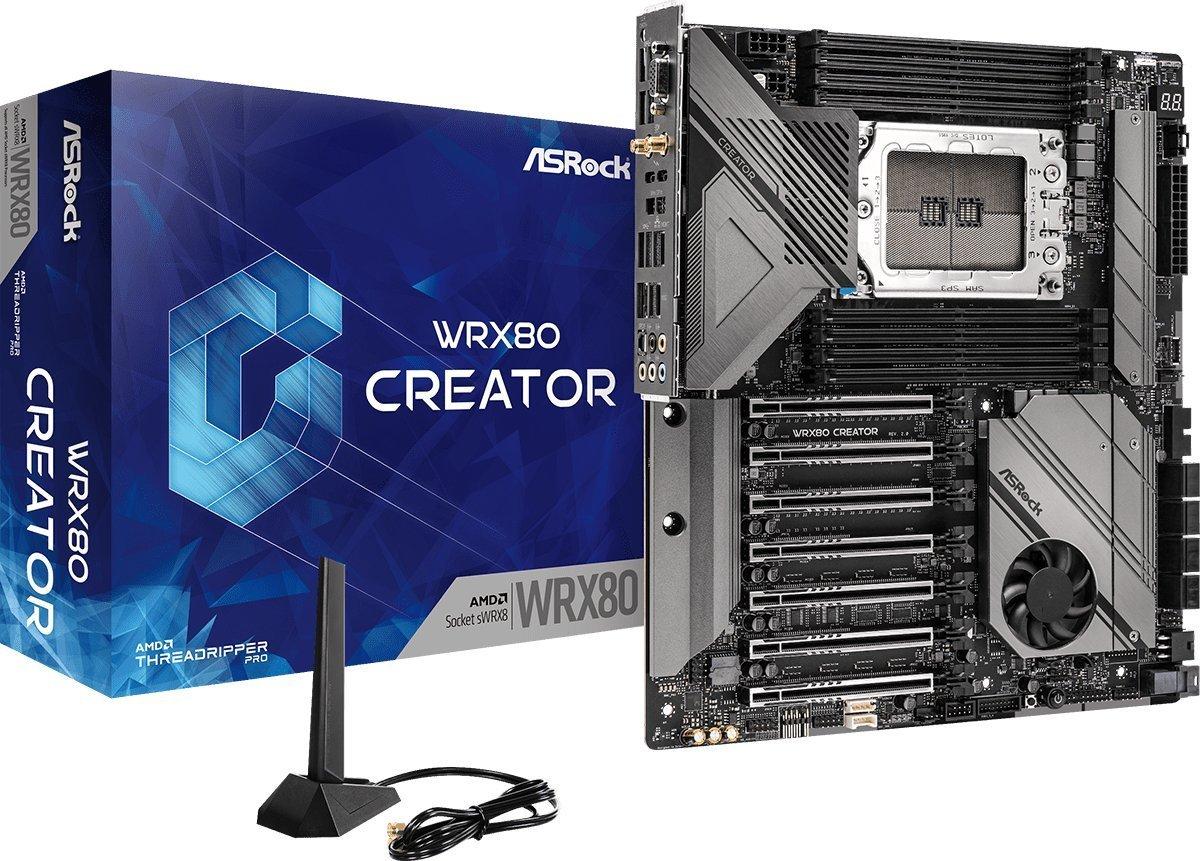

--- Akcesoria ---
- Quick Installation Guide
- 4 x SATA Data Cables
- 1 x ASRock WiFi 2.4/5/6 GHz Antenna
- 2 x Screws for M.2 Sockets
- 2 x Standoffs for M.2 Sockets

--- Hardware Monitor ---
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, PREM VDDCR_SOC, +1.8V

--- Wymiary ---
- EATX Form Factor: 12.0-in x 10.7-in, 30.5 cm x 27.2 cm
- 14 Layer PCB
- 2oz Copper PCB

--- System operacyjny ---
- Microsoft® Windows® 10 64-bit / 11 64-bit
*Sleep (S3) mode is not supported on this motherboard.

--- Certyfikaty ---
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
- CEC Tier II ready
