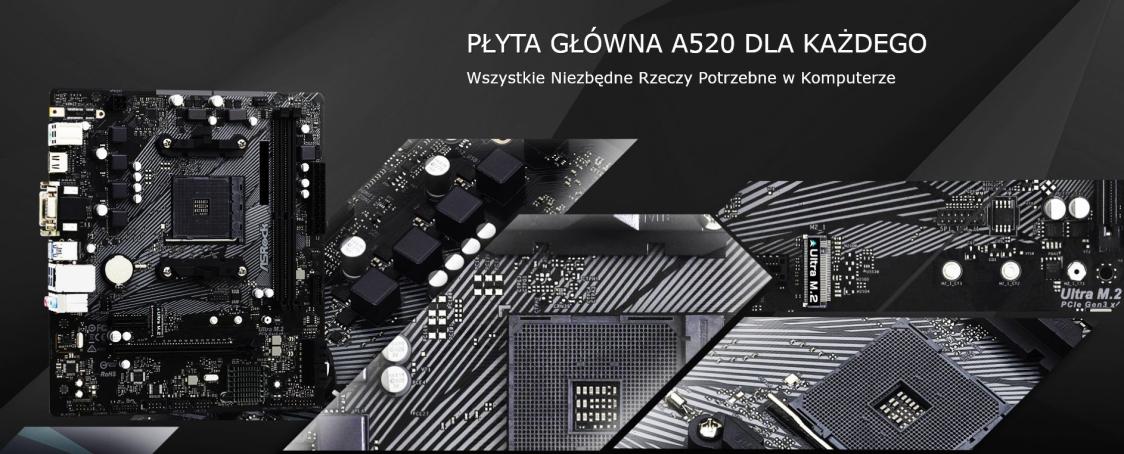

Asrock A520M-HDV (AMD A520) [AM4, 2xDDR4 do 4733 MHz, (VGA, DVI, HDMI 2.1) (1xM.2, 1xPCIe 3.0 x16, 1xPCIe 3.0 x1), micro ATX]

--- Cechy szczególne ---
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

--- CPU ---
- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
- 6 Power Phase design
*Please refer to CPU support list for details.

--- Chipset ---
- AMD A520

--- Pamięć ---
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- Max. capacity of system memory: 64GB**
- Supports Ekstremalny Profil Pamięci (XMP) memory modules
- 15μ Gold Contact in DIMM Slots

--- BIOS ---
- 128Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment

--- Karta graficzna ---
- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Domyślna ilość współdzielonej pamięci to 2GB. Maksymalna ilość współdzielonej pamięci to 16GB.**
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI 2.1 with max. Rozdzielczośćup to 4K x 2K (4096x2160) @ 60Hz
- Supports DVI-D with max. Rozdzielczośćup to 1920x1200 @ 60Hz
- Supports D-Sub with max. Rozdzielczośćup to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
- Supports Microsoft® PlayReady

*Wsparcie może się różnić w zależności od CPU
**Maksymalna współdzielona pamięć 16GB wymaga 32GB pamięci w systemie.

--- Audio ---
- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- Supports Surge Protection

--- LAN ---
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

--- Sloty ---
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
- 1 x PCI Express 3.0 x1 Slot
*Obsługa bootowania z dysków NVMe SSD

--- Magazynowanie ---
CPU:

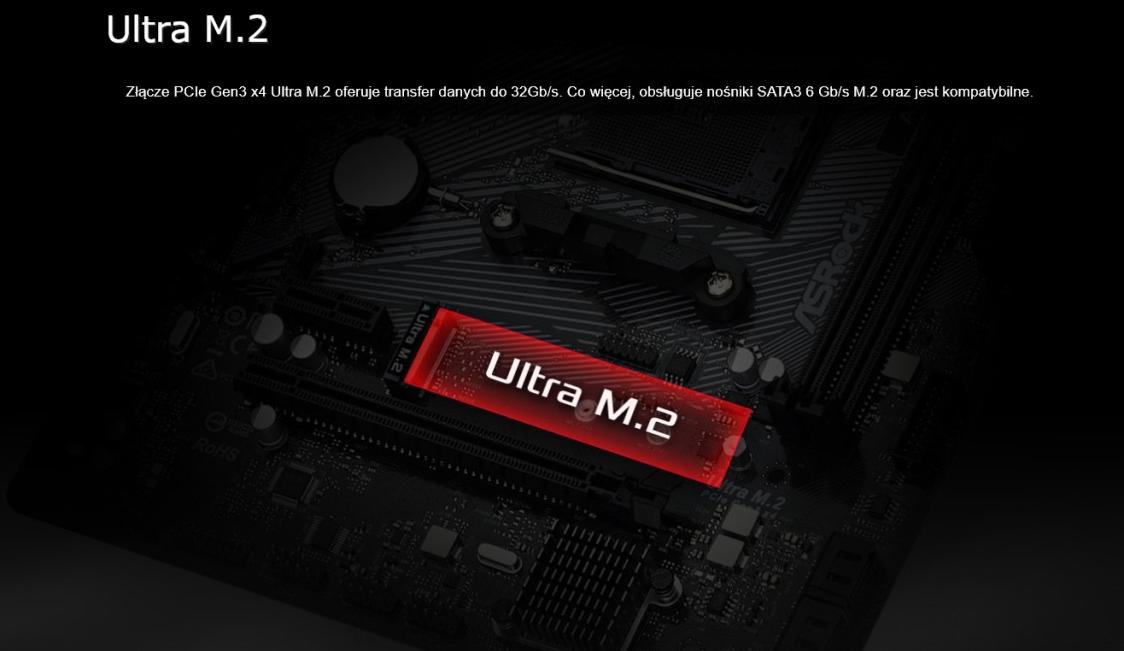

- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
Chipset:
- 4 x SATA3 6.0 Gb/s Connectors
*Obsługa bootowania z dysków NVMe SSD
NVMe SSD is not supported with AMD Athlon™ 3000G Processors
Supports ASRock U.2 Kit
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA Dyski

--- Złącza ---
- 1 x SPI TPM Header
- 1 x COM Port Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.
CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.

--- Tylny panel ---
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

--- Oprogramowanie i UEFI ---
Software
- ASRock Motherboard Utility (A-Tuning)
UEFI
- ASRock Full HD UEFI
- ASRock Funkcja Instant Flash
*Te narzędzia można pobrać z Live Update & APP Shop.
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)

--- Akcesoria ---
- I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket

--- Hardware Monitor ---
- Temperature Sensing: CPU, Chassis
- Fan Tachometer: CPU, Chassis Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
- Fan Multi-Speed Control: CPU, Chassis Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

--- Wymiary ---
- Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
- Solid Capacitor design

--- System operacyjny ---
- Microsoft® Windows® 10 64-bit / 11 64-bit

--- Certyfikaty ---
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
